Why Is The Trunking Flex System Light The First Choice For High Efficiency Industry Lighting?
Apr 02, 2026
Leave a message
What is a trunking system light? The core components and working principle of a trunking system light.

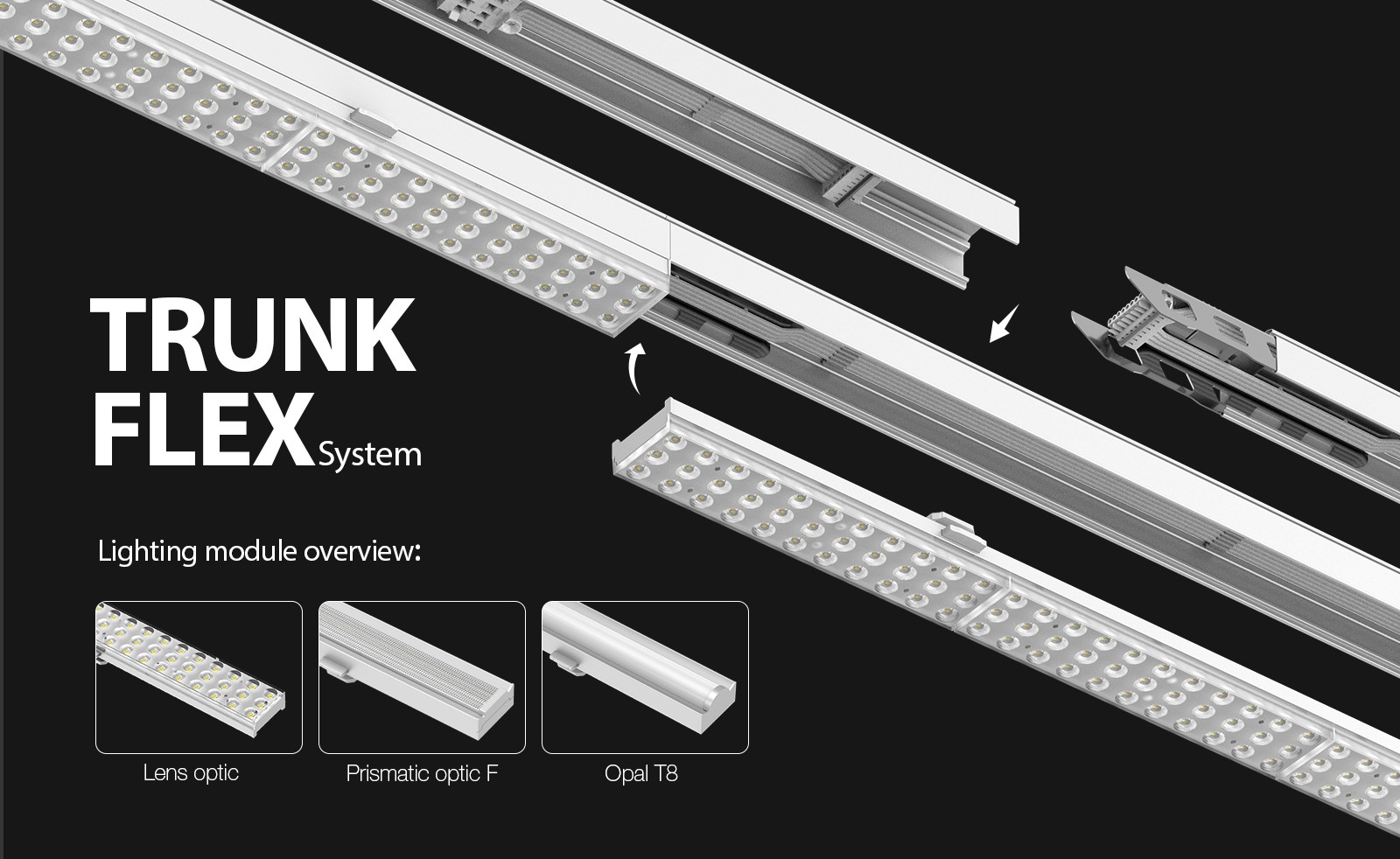

Trunking Linear system comprises trunk rail, lighting module, function module, and accessories. The trunk rail is pre-wired linear systems which provides the AC power and control signals to modules. The trunk rail has 5/6/7/8/12 wires in a style that meets the different lighting gear trays and function modules. The function modules are split into the sensor module, emergency module, and functional lighting. The function modules make the trunking linear to meet the different applications. The Modular LED trunking system delivers a tool-free installation, which makes a dramatic installation cost saving for every client. The tool-free installation is reflected in trunk rail connection, one-time AC power connection by the start unit, and easy installation on the modules.
The elegant and special design, Fantastic lighting solution, High technical function modules. All the above advantages make the trunk flex popular and hot selling, but also effectively enhance the client's brand image. For a deeper dive into busbar technology, check out our comprehensive guide.
Why is led linear light trunking system Light becoming the preferred choice for industrial lighting?
Modern industrial lighting fixtures face challenges such as high energy consumption, difficult maintenance, and slow installation. Traditional industrial lighting solutions are increasingly unable to meet the demands, while the various functional advantages of the Trunking Flex System Light have made it the preferred solution for industrial lighting upgrades.
Reduced Energy Costs with High-Efficiency Modular LED
The Trunking Flex System Light achieves a high luminous efficacy of 180 lm/W, far exceeding traditional lighting, significantly reducing energy consumption while providing ample illumination. It also achieves a UGR <19, effectively reducing glare.
Minimum Maintenance & Total Cost of Ownership
The LED light source has a lifespan of over 50,000 hours, requiring minimal maintenance. Warranty periods can reach up to 7 years.
Tool-fREE Installation and Modular Flexible Configuration
The trunk rail connection, one-time AC power connection by the starter unit, and easy installation on the modules. The functional modules are divided into the sensor module, the emergency module, and the functional lighting module. These functional modules allow the Trunking Flex to meet diverse applications.
what situations should Trunking Flex System Light be used?
led trunking light is a modern linear light nowadays, which is split into the pre-wired trunks, lighting gear trays, and function modules. The tool free installation, multiple links, and one-time AC wringing make the trunk flex. They were widely used in the commercial / office / industrial and other lighting applications.

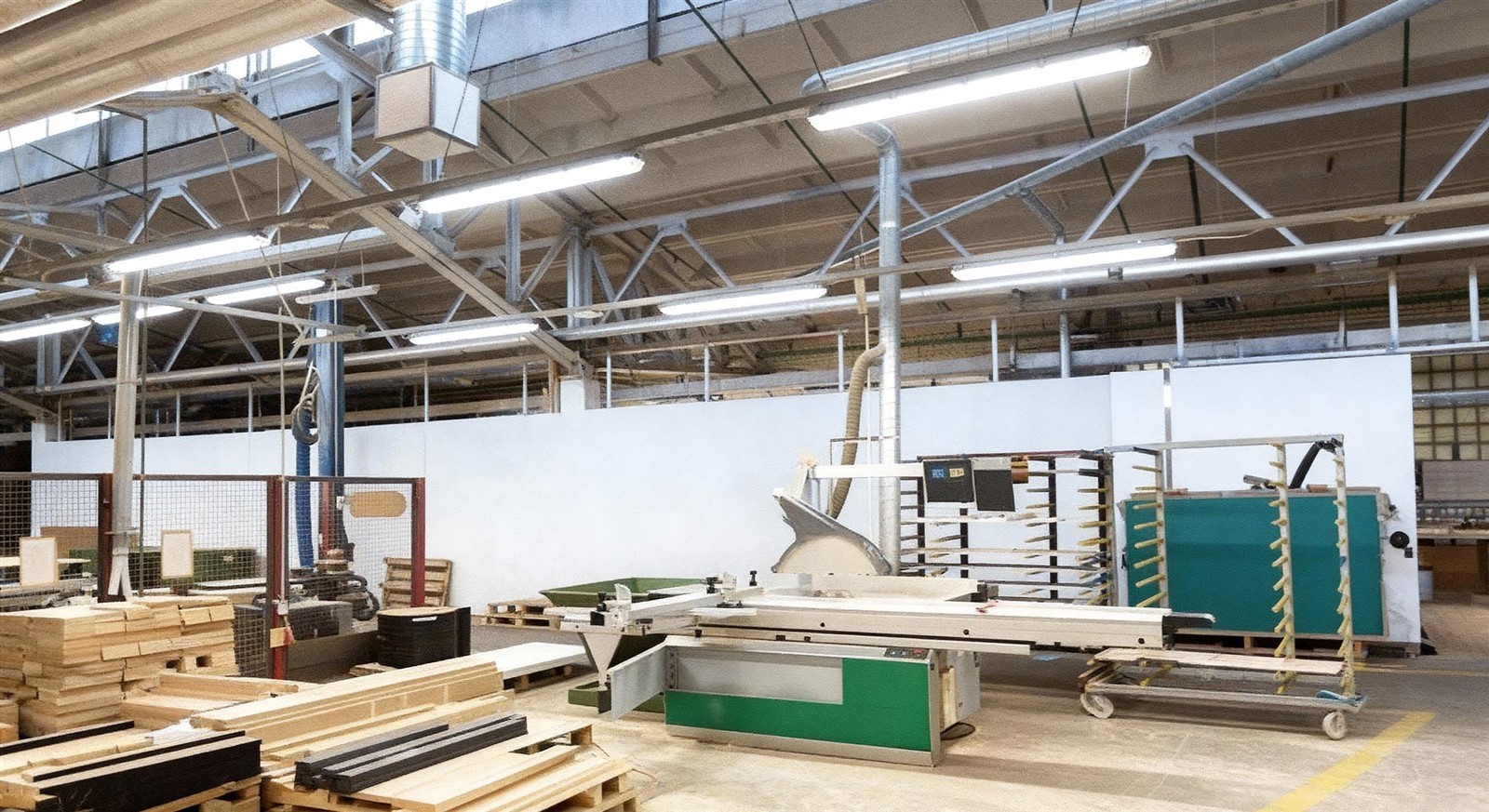

Large Warehouses and Production Workshops
Warehouses and production lines require specialized work lighting. Standard lighting often suffers from glare or inconsistent color temperatures between different fixtures, leading to employee fatigue. Professional lighting trunking system achieves a CRI > 90 and UGR < 19, providing consistent and uniform lighting for production workshops. Trunk Flex's modular design easily adapts to changes in shelving layout, and when combined with emergency lighting modules, it meets safety regulations.
Supermarkets and shopping malls
trunking system lighting's modular optical design highlights merchandise, enhances visual appeal, eliminates the need for rewiring, and maintains low glare UGR<19, improving the customer shopping experience and visual merchandising effectiveness.
Parking lots, showrooms, and large commercial spaces
Open areas require continuous linear lighting, seamless dark areas, and easy installation and maintenance. The free and quick installation tools can shorten project timelines by over 70%, making it ideal for renovating old factories or constructing new large-space projects.
In the industrial and logistics sectors, lighting demands go beyond mere brightness, emphasizing safety, reliability, and energy efficiency. Our LED lighting solutions are specifically designed to withstand these challenging environments, offering exceptional durability and longevity. Equipped with advanced heat dissipation technology, our lights maintain stable performance even during prolonged operation. Additionally, our fixtures feature high protection ratings, making them resistant to dust, moisture, and other harsh conditions, ideal for warehouses, factories, and distribution centers.
Is Toppo Lighting's Trunking Flex System Light suitable for your project?
In terms of design, our products are sleek and versatile, seamlessly fitting into various industrial and logistics settings. The modular design allows for easy installation and quick adjustments or expansions as needed. With efficient optical design, our lights provide uniform illumination while reducing glare, enhancing visual comfort in work areas and thereby improving both productivity and safety.
Toppo Lighting's led linear trunking system delivers a very professional wiring system. The trunk rails are pre wired, which provides the AC power and control signals to the lighting gear trays and functions modules.
The WAGO connector used in the trunk offers a tool-free installation between the trunk rail and the lighting gear tray. Trunk Flex not only uses the 3-phase & 2.5mm² (20AWG ) power wires but also uses the WAGO phase conversion function connector. It allows MAX 16A and 200 meters of trunk rail to be connected in a 3-phase power supply system.

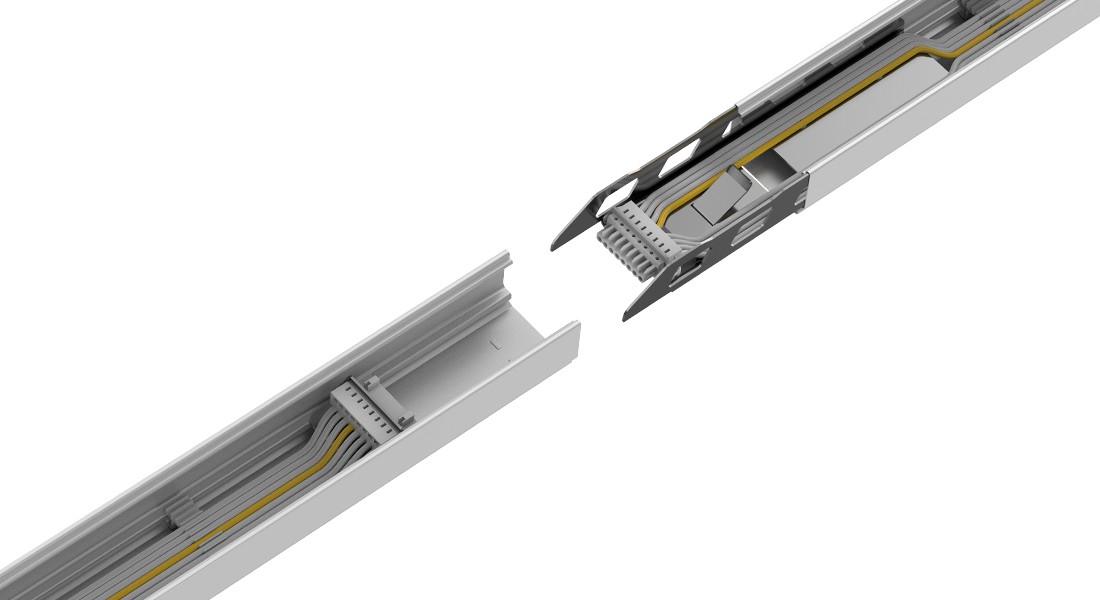

The node connector with the wired WAGO terminal on both sides not only makes the tool free installation, but also makes the installation directions.

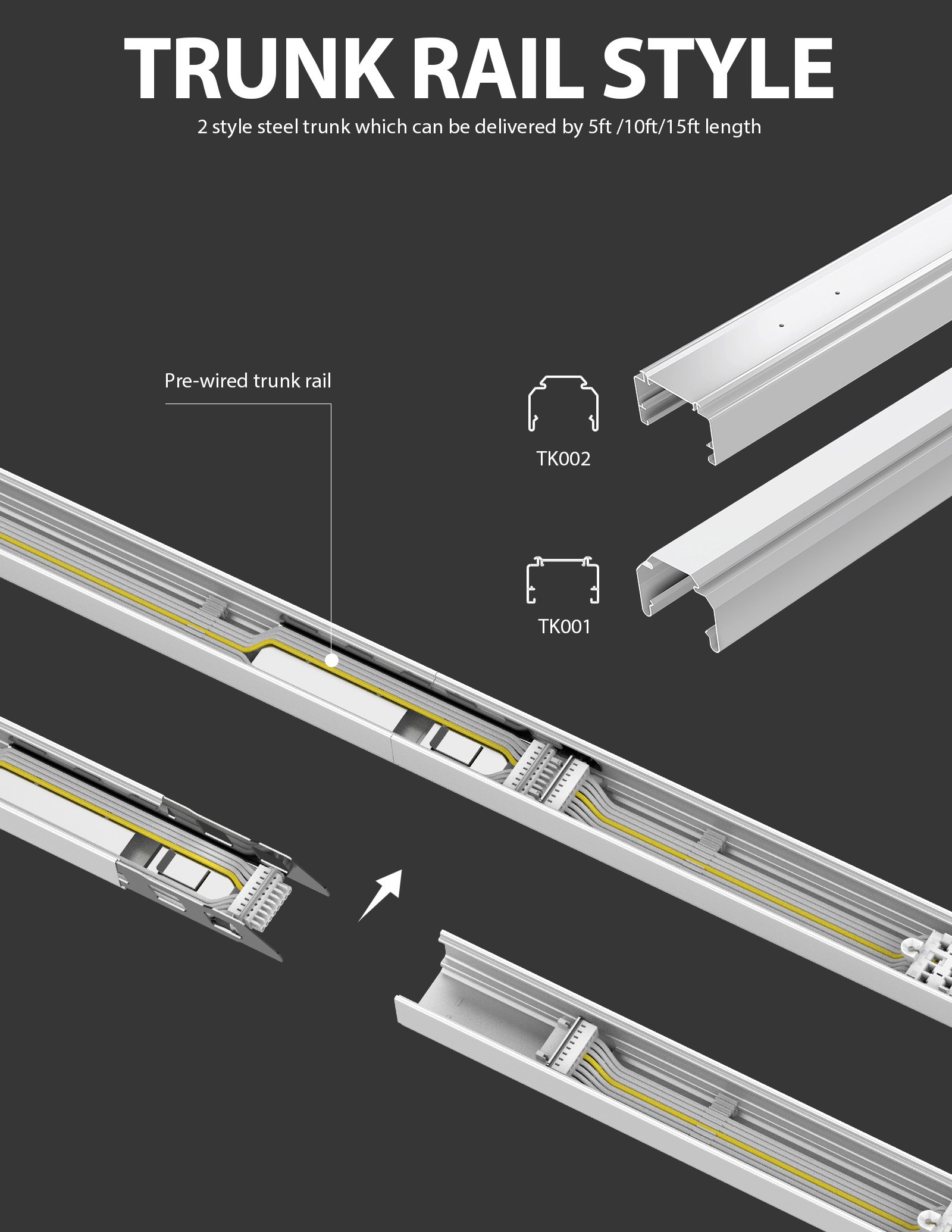

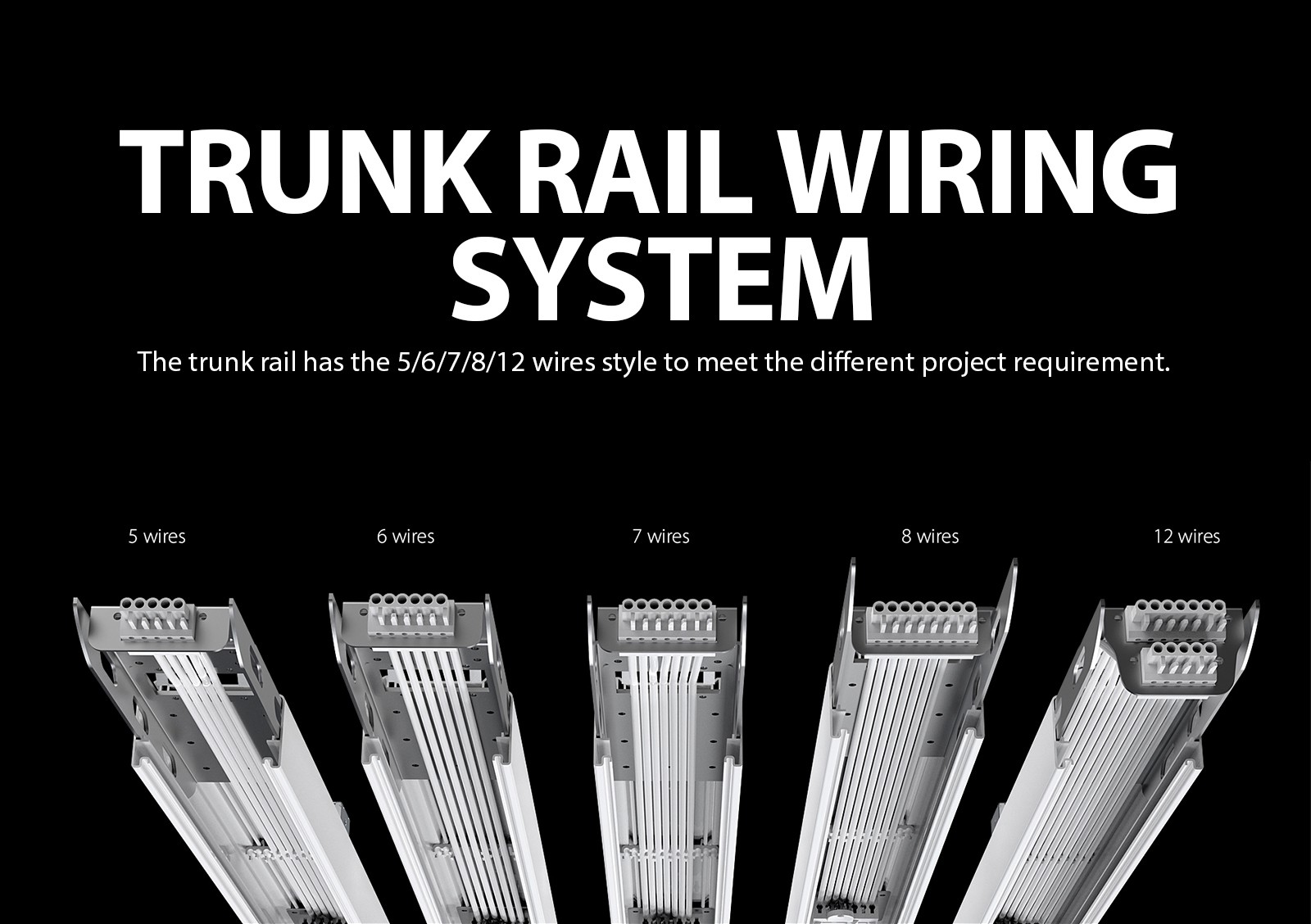

The trunk rail has the 5/6/7/8/12 wires style to meet the different project requirements. Toppo designed 2 styles of steel trunks that can be delivered in 5 ft/10 ft/15 ft lengths. The trunk is a pre-wired section with different numbers of wires. The 64.5mm width and 1470mm length are the same as the normal traditional trunk. Toppo can also provide the custom made length per the customer's project requirement.
Frequently Asked Questions
What are the differences between Trunking Flex System Light and ordinary linear lights?
+
-
In the industrial and commercial lighting fields, while both Trunking Flex System Light and ordinary linear lights belong to linear lighting, they are fundamentally different lighting solutions. Ordinary linear lights are generally fixed installations with individual wiring, while Flex lighting trunking system provides a highly professional wiring system and modular installation, solving the problems of slow installation, poor flexibility, and difficult maintenance associated with ordinary linear lights.
Does Trunking Flex System Light require specialized tools for installation?
+
-
No, Toppo lighting's Trunking Flex System Light features a tool-free installation design, greatly reducing the installation threshold and labor costs.
Does it support DALI/sensors/emergency lighting?
+
-
Yes, the Trunking Flex System Light's functional modules are divided into sensor modules, emergency modules, and functional lighting modules. These functional modules enable the Trunk Flex system to meet different application needs.
What are the main components of Trunking Flex System Light?
+
-
Trunking Flex System Light consists of three parts: Trunk Rail, Lighting Gear Tray/Function Module, and Accessories. This modular design allows for highly flexible installation and maintenance of the luminaires.
What wire types does the linear trunking system Light support?
+
-
The linear trunking system Light offers a variety of wire types, including 5-wire, 6-wire, 7-wire, 8-wire, and 12-wire options.
What are the functions of the different wire types in the Trunking Flex System Light?
-
Different wire types meet the needs of different applications. Basic 5-wire/7-wire systems are suitable for general lighting + emergency lighting; 8-wire and 12-wire systems support more complex intelligent controls, such as DALI, 1-10V dimming, sensors, and emergency lighting. Customers can choose the most suitable wire configuration based on the actual dimming, intelligent integration, or emergency needs of their project.
Toppo Lighting Company Limited
If you are planning warehouse renovations, supermarket lighting upgrades, or factory lighting optimizations, the Trunking Flex System Light may be the ideal solution that can simultaneously address the issues of "efficiency, flexibility, and low cost."
Please see details for the trunk flex, we believe that you will not only find the most satisfactory products, but also, you can feel the professional design ability of Toppo Lighting.
