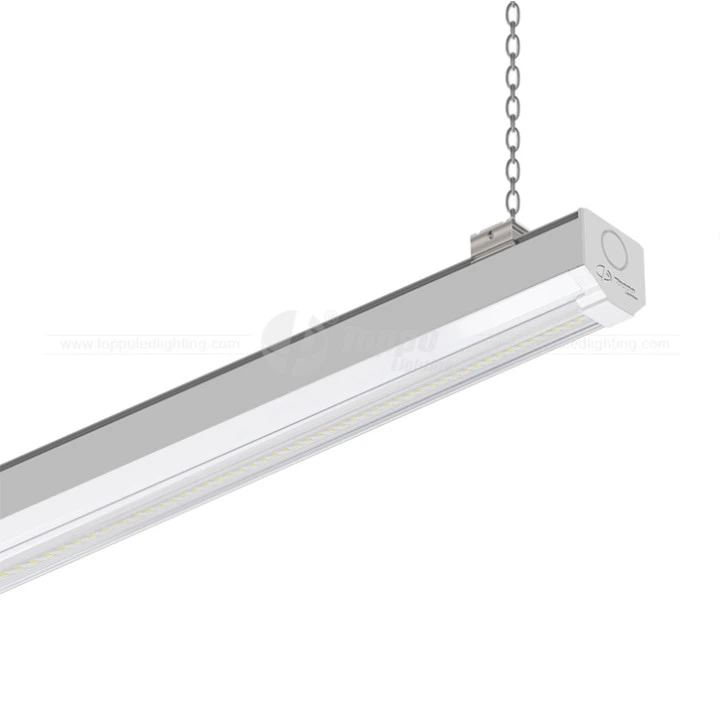

Trunk Linear Narrow Module Patent Design LED Light Module
Product Picture
 |  |  |
Patent design for Trunk Linear Narrow Module
| Features: | Options: |
▪ High lumen output at 150LM/W | > Tri-color :3000/5000 mixed 4000K |
| ▪ Tool Free installation | > 5/7 wiring system |
| ▪ Max 200 meters multiple link | > Various function : |
| ▪ 3-phase AC power source | ON-OFF/1-10V /DALI |
Specifications
| Order Code | Function | Product Name | Wattage | Lumen Output | LM/W | Beam Angle | CRI | CCT | AC Input | Power Factor | Flicker Free |
TS-LM06- 12PN1-AN001 | ON/OFF | 0.6M/2ft/12W Narrow Module | 12W | typ.1550LM | typ.130 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
TS-LM06- 24RN1-AN001 | ON/OFF | 0.6M/2ft/24W Narrow Module | 24W | typ.3600LM | typ.150 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
TS-LM12- 25PN1-AN001 | ON/OFF | 1.2M/4ft/25W Narrow Module | 25W | typ.3250LM | typ.130 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
TS-LM12- 50RN1-AN001 | ON/OFF | 1.2M/4ft/50W Narrow Module | 50W | typ.7500LM | typ.150 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
TS-LM15- 32PN1-AN001 | ON/OFF | 1.5M/5ft/32W Narrow Module | 32W | typ.4150LM | typ.130 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
TS-LM15- 64RN1-AN001 | ON/OFF | 1.5M/5ft/64W Narrow Module | 64W | typ.9600LM | typ.150 | 80 | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | Y |
