Low Glare Led Trunk Linear Gentle Module
Low glare led trunk linear gentle module
| Features | Options |
| Tool Free installation | ▲Emitting color: |
| Max 200 meters multiple link | Single Color/Tri-color |
| Low glare/UGR<19 | ▲Function: |
| 5/7/11 wiring system | ON-OFF/1-10V Dimming/DALI Dimming/3H Emergency |
| 3-phase AC power source | ▲LED Driver: |
| Suitable for surface mounting installation | Tridonic/LIFUD/BOKE |
| 5 years warranty | ▲Installation: Surface mounting or Suspension |
EU Style
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Function | Color Index | AC Input | Power Fator | Flicker free |
TS-LM06 -12SN1-AG001 | 0.6M-12W Gentle moudle | 12W | 1440LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |
TS-LM06 -24SN1-AG001 | 0.6M-24W Gentle moudle | 24W | 2880LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |
TS-LM12 -25SN1-AG001 | 1.2M-25W Gentle moudle | 25W | 3000LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |
TS-LM12 -50SN1-AG001 | 1.2M-50W Gentle moudle | 50W | 6000LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |
TS-LM15 -32SN1-AG001 | 1.5M-32W Gentle moudle | 32W | 3840LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |
TS-LM15 -64SN1-AG001 | 1.5M-64W Gentle moudle | 64W | 7680LM | 120LM/W | ON/OFF | Ra>80 | AC200-240V | PF>0.95 | Y |

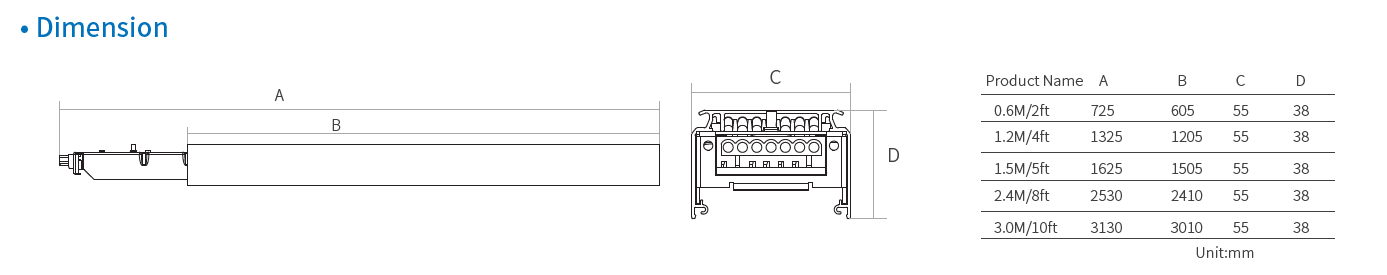

| Dimensions |
|
Applications:

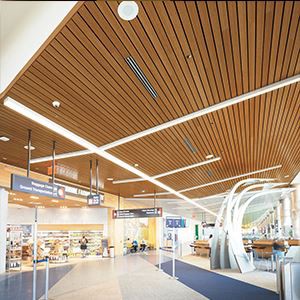

>Commercial lighting applications : Supermarkets, Shopping malls, Airports, Stations, Cap parks etc.

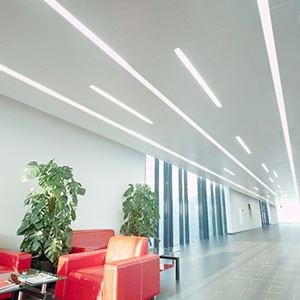

>Office lighting applications : Offices, Conference rooms, Showrooms, Class rooms, librarys etc.
>Industrial lighting applications: Factories, Warehouses, Workshops ,
 |  |  |
| Shopping Mall | Supermarket | Office |
