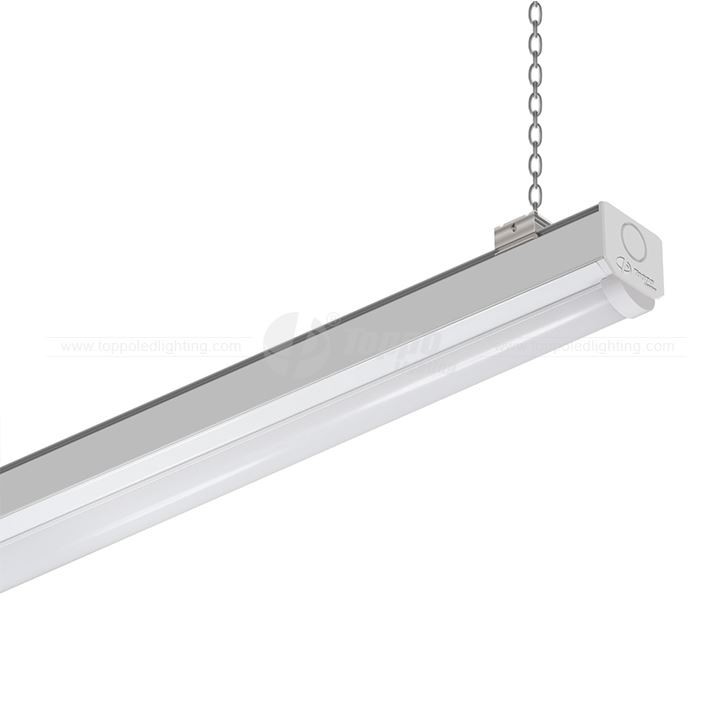

LED Light Module T8 Light Module
LED light module T8 light module
| Product Features: | Options: |
· Max 200 meter multiple link | ·Functions: ON-OFF/1-10V dimming/DALI |
· Special replacement for T8 flfluorescent | Micro-wave sensor/PIR Sensor/3H EM |
· Wattage adjustable | · Lighting color : Single color or Tri-color |
· Tool Free installation | · Beam Angle : 120 Degree |
| · 5 years warranty | · Installation : Surface mounting OR Suspension |

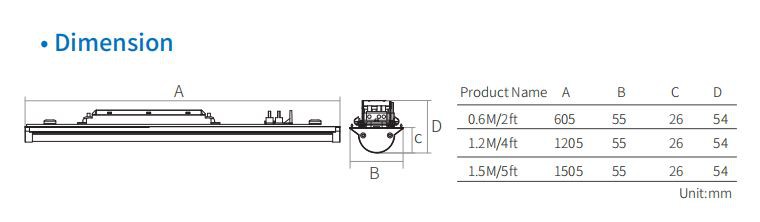

Dimension
Data Sheet
Item | Symbol | L=0.6m/2ft | L=1.2m/4ft | L=1.5m/5ft | |||
Rated Power | W | 12W | 24W | 25W | 50W | 32W | 64W |
Lumen Efficacy | LM / W | typ. 120 | |||||
Luminous Flux | LM | 1450 | 2900 | 3000 | 6000 | 3850 | 7650 |
Color Index | CRI(Ra) | Ra>80 | |||||
CCT | TC(k) | Single color: 3000/4000/5000K Tri-color: 3000/5000K,Mixed:4000K | |||||
Beam Angle | degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming/ DALI | |||||
Power Factor | PF | PF>0.95 | |||||
Input Voltage | V | AC200-240V OR AC100-277V | |||||
Housing Material | / | Aluminum + Pc | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||
Application:

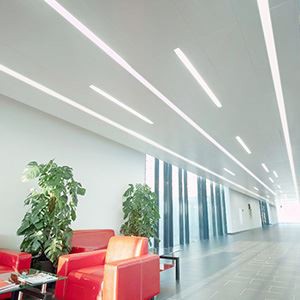

· Commerical/Office applications: Car parks, Offices, Meeting rooms, Showrooms, Classrooms, Supermarkets, Shopping malls, etc
· Industrial applications: Warehouse, Factories, etc
 |  |  |
| Office | Supermarket | Shopping Mall |
