Backlit LED Panel Light P05 Series: Prismatic UGR<19
Backlit LED panel light is one of Toppo Lighting main product series, who had built up semi-automatic production line since end of 2020.
-Own designed ultra flat casing: 32mm. Cancel the LGP, no yellow changing problem.

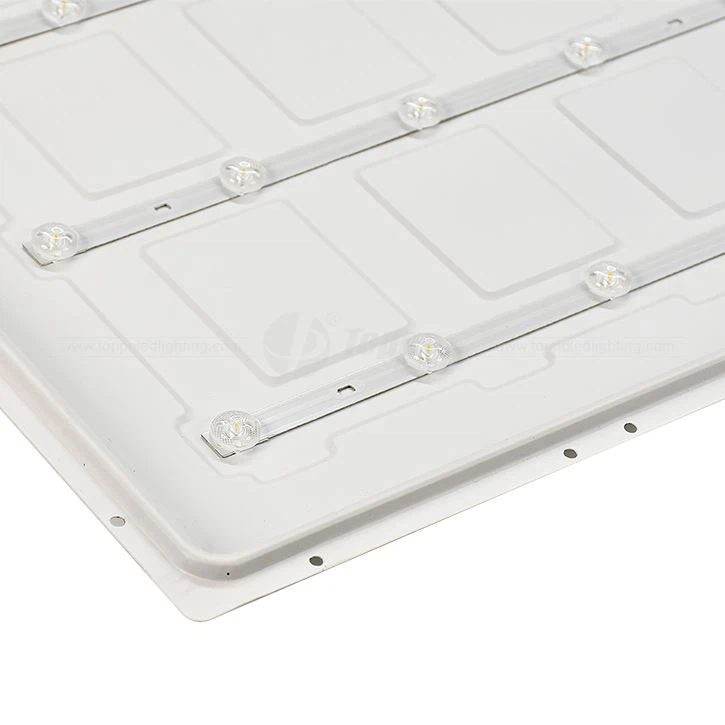

-To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 170° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.
- 600*600mm, 620*620mm, 1200*300mm, 1200*600mm as standard size, 105lm/w, 120lm/w with Prismatic UGR<19.
- Optional Accessories:
Tri-Color available (CCT adjustable)
Drivers: Regular On/Off driver, 1-10V dimmable or DALI dimmable
3H Emergency power supply
-Own designed ultra flat casing: 32mm. Cancel the LGP, no yellow changing problem.
-To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 170° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.
- 600*600mm, 620*620mm, 1200*300mm, 1200*600mm as standard size, 105lm/w, 120lm/w with Prismatic UGR<19.
- Optional Accessories:
Tri-Color available (CCT adjustable)
Drivers: Regular On/Off driver, 1-10V dimmable or DALI dimmable
3H Emergency power supply
Send Inquiry

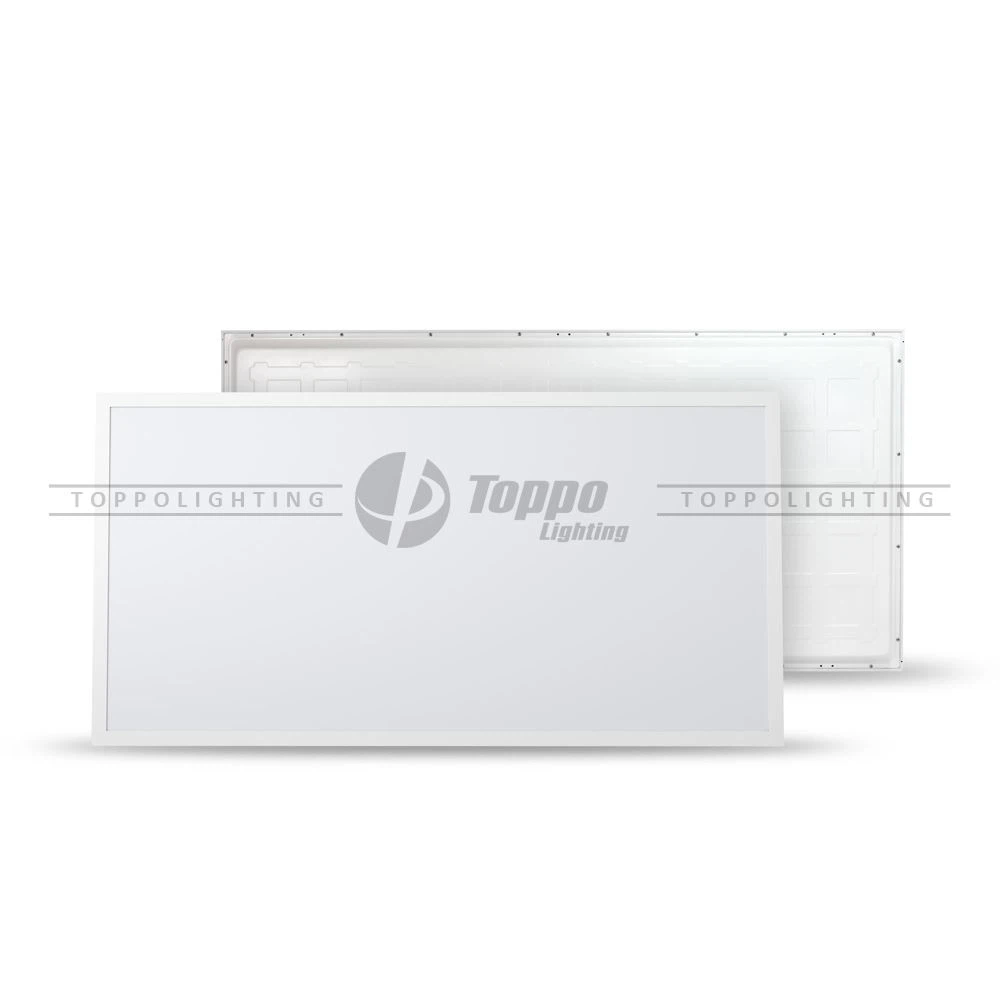

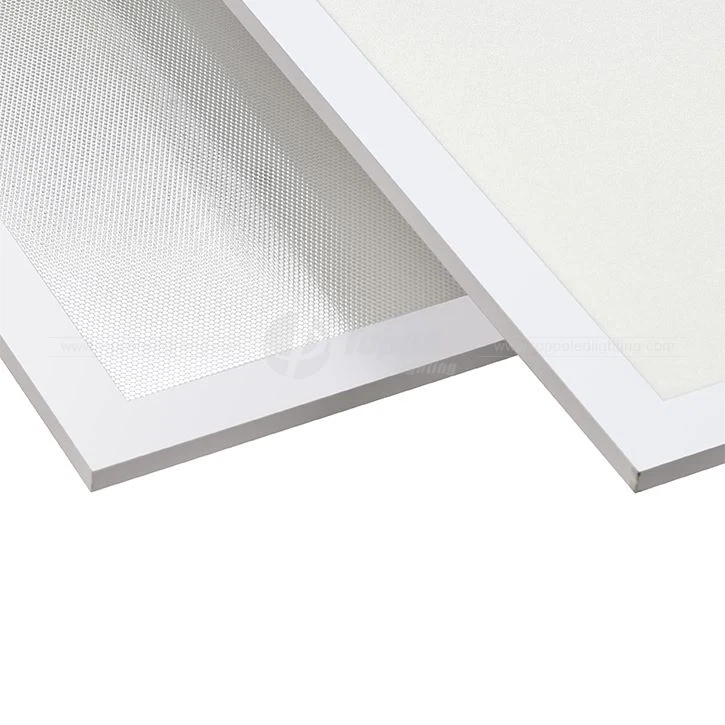

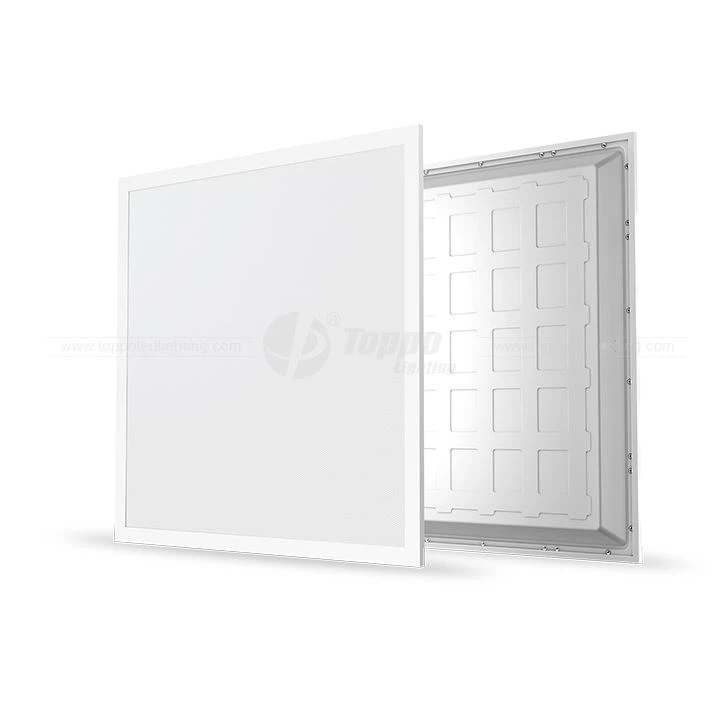

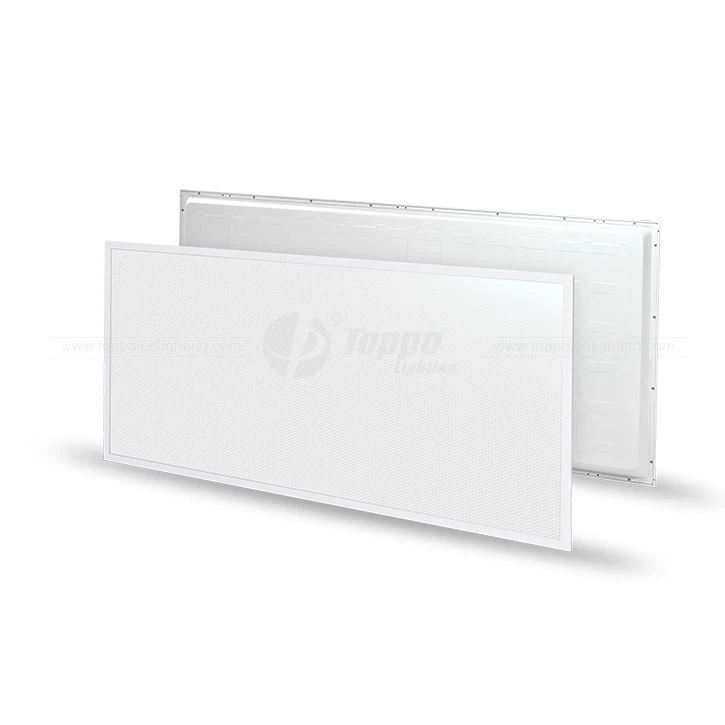

P05 Prismatic UGR<19 Backlit LED Panel Light
 | |  |  |
| 60 X 60cm: 30W | 62 X 62cm: 30W | 30 X 120cm: 30W | 60 X 120cm: 50W |
Premium: 105LM/W
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | UGR | AC Input | Power Factor |
| PN22-30SN1-BPN1B-001 | 600*600/30W Standard P05 Backlit | 30W | 3150LM | 105LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN41-30SN1-BPN1B-001 | 300*1200/30W Standard P05 Backlit | 30W | 3150LM | 105LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN62-30SN1-BPN1B-001 | 620*620/30W Standard P05 Backlit | 30W | 3150LM | 105LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN42-50SN1-BPN1B-001 | 600*1200/50W Standard P05 Backlit | 50W | 5250LM | 105LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
Premium: 120LM/W
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | UGR | AC Input | Power Factor |
| PN22-30PN1-BPN1B-001 | 600*600/30W Premium P05 Backlit | 30W | 3600LM | 120LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN41-30PN1-BPN1B-001 | 300*1200/30W Premium P05 Backlit | 30W | 3600LM | 120LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN62-30PN1-BPN1B-001 | 620*620/30W Premium P05 Backlit | 30W | 3600LM | 120LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |
| PN42-50PN1-BPN1B-001 | 600*1200/50W Premium P05 Backlit | 50W | 6000LM | 120LM/W | Ra>80 | Prismatic UGR<19 | AC200-240V | PF>0.95 |

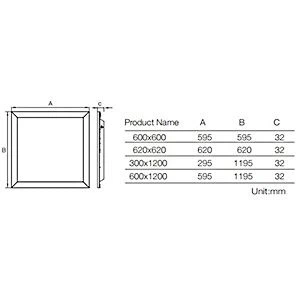

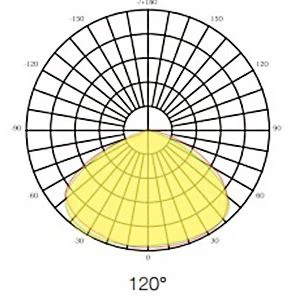

| Dimensions | Beam angle |
|
|

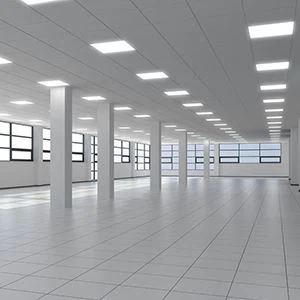

Applications
 |  |  |

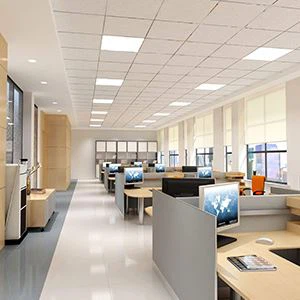

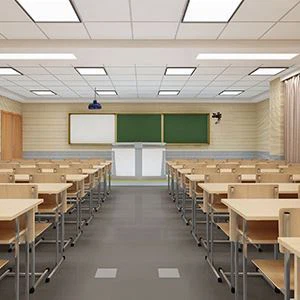

| Office | School | Corridor |
▲Replacement for fluorescent troffer

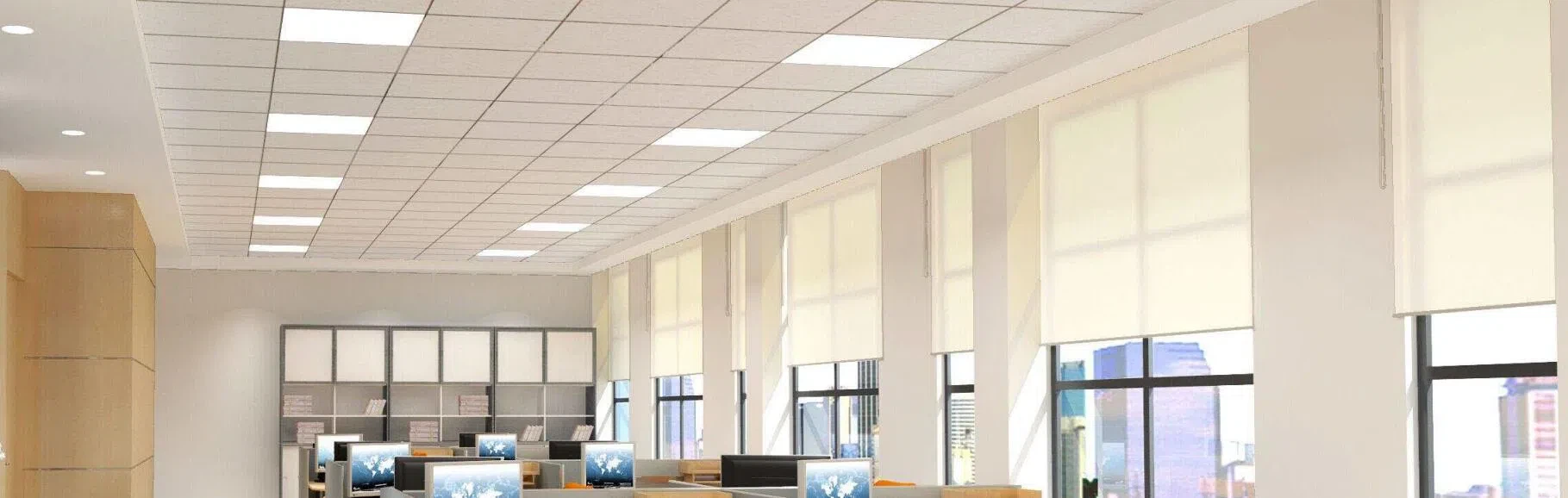

▲Offices/Schools
▲Hospitals/Retails
▲Corridors/Stairwells
