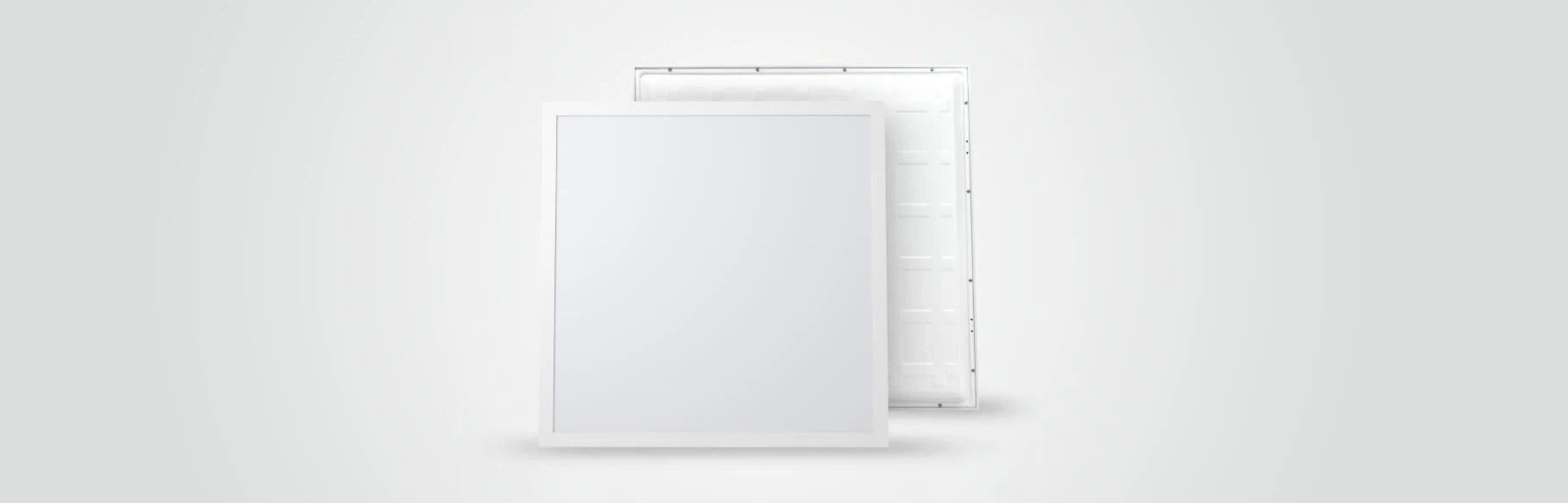

Backlit LED Panel Light P11 Series: ETL Listed HB/ Non-Fireproof

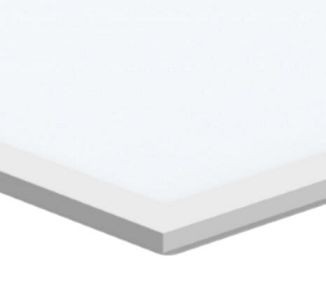

- Own designed ultra flat casing: 32mm. Cancel the LGP, no yellow changing problem.
- To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 180° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.
- 2*2ft, 4*1ft, 4*2ft as standard size, 100lm/w, 125lm/w as option.
- Optional Accessories:
Tri-Color available (CCT adjustable)
Drivers: Regular On/Off driver, 1-10V dimmable or DALI dimmable
3H Emergency power supply
- To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 180° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.
- 2*2ft, 4*1ft, 4*2ft as standard size, 100lm/w, 125lm/w as option.
- Optional Accessories:
Tri-Color available (CCT adjustable)
Drivers: Regular On/Off driver, 1-10V dimmable or DALI dimmable
3H Emergency power supply
Send Inquiry
Backlit LED Panel Light P11 Series: ETL Listed HB/ Non-Fireproof
Features
 |  |  |
| PS disffuser | Ultra flat casing:32mm | 170° degree Uniform lighting |
Data sheet
| 30W / 40W | 30W / 40W | 30W / 40W | 38W / 50W / 60W |
 |  |  |  |
| 60 X 60cm | 62 X 62cm | 30 X 120cm | 60 X 120cm |
| Lumen Efficacy 100LM/W, 125LM/W | Protection Class IP20/IP44 | BeamAngle 120° |
| Housing material Metal + PS | Function ON/OFF, 1-10V | CCT 3000K/4000K/5000K/6000K |
| Input AC100-277V/50Hz | Power factor >0.95 | Color Index Ra>80 |
Dimension | Photometry Curve |
 |  |
