LED Batten Lights Structure: Design, Components & Industrial Applications



LED Batten Lights have a long, rectangle shape. They have built-in LED modules. This makes them great for factories and warehouses.
You get a design that looks new. It works well and lasts a long time.

When you compare them to old tube lights, you get:

They use less energy.

They last much longer, up to 50,000 hours.

They look smooth and mount on surfaces.

They are waterproof and keep out dust with IP65 rating. Knowing about these design and parts helps you get better use and longer life in tough places.

Key Takeaways

• LED Batten Lights use much less power than old bulbs. They can save up to 90% of energy. This helps you spend less money on electricity.
• These lights last a long time, over 50,000 hours. You do not need to change or fix them often.
• The strong design has aluminum housing and an IP65 rating. This makes them good for tough places like factories and warehouses.
• Good thermal management keeps the lights from getting too hot. This helps the lights stay bright and safe.
• LED Batten Lights give even light everywhere. This makes industrial spaces safer and easier to see in.

Contact now

LED Batten Lights Structure

Linear Form Factor

LED Batten Lights are long and shaped like rectangles. This shape helps light spread out over big areas. The linear form factor has many LED chips in a row. Each chip lights up when it gets electricity. The fixture can connect to AC or DC power. The built-in LED driver makes sure the LEDs get the right power. A heat sink takes away extra heat. This keeps the lights cool and working well.

Tip: The optical system uses diffusers and reflectors. These parts help spread light evenly. They also cut down on shadows and glare at work.

Here is a table that shows the main features of the linear form factor:

Characteristic	Description
LED Components	Many LED chips give off light in an efficient way.
Electrical Supply	Can connect to AC or DC power.
LED Driver	Controls voltage and current for steady lighting.
Heat Sink	Pulls away extra heat to keep LEDs safe.
Optical System	Uses diffusers and reflectors for even light.
Control Methods	Can use manual, sensor, or programmable controls, including dimming.
Energy Efficiency	Turns more electricity into light than old lights.
Longevity	Solid-state design lasts longer and needs fewer changes.



Integrated Design

The integrated design of LED Batten Lights helps you a lot. The housing is made from thick aluminum. This makes the light strong and tough. The polycarbonate cover helps get rid of heat. This lets the light last longer. You can add things like power cables and connectors. These make it easy and fast to set up. The design means there are fewer parts to handle.

The aluminum housing stands up to shocks and shaking.

The polycarbonate cover helps manage heat.

Extra accessories make setup simple and quick.

You save energy and make less heat than with fluorescent lights.

The lights can last over 50,000 hours, so you do not need to replace them often.



Structural Impact on Performance

The structure of LED Batten Lights changes how well they work in factories. The long strip shape spreads light out evenly. This is good for places like warehouses and parking garages. Strong materials like aluminum and PC plastic make them last longer. The high-transmittance diffuser gives even light and cuts down on dark spots and glare.

You get high luminous efficiency, often over 160 lumens per watt, which saves energy.

The lights can reach up to 9600 lumens, so big spaces are bright.

The IP65 rating keeps out dust and water, so you can use them in wet or dirty places.

The solid-state design stands up to shocks, shaking, and hot or cold weather. This makes them better than incandescent or fluorescent lights.

You spend less time and money fixing them because they last longer and need fewer changes.

Here is a quick table to compare durability:

Lighting Type	Durability Characteristics
LED Batten Lights	Very tough, stands up to shocks, shaking, and hot or cold.
Incandescent Bulbs	Breaks easily and is fragile.
Fluorescent Lights	Somewhat tough, but does not like big temperature changes.

Note: LED Batten Lights need very little care. Old lights need to be replaced more often, which costs more and takes more time.

The structure of LED Batten Lights is important. It gives you better efficiency, more brightness, and stronger lights. You get a lighting choice that works well in tough places and helps you save energy and money.



Design Principles

Material Choices

Factories need strong materials for lighting. Most LED Batten Lights use aluminum and polycarbonate. Aluminum makes the housing tough. It does not break or rust easily. Polycarbonate covers protect the LEDs. They also help control heat. These materials keep out dust and water. This is good for rough places.

Here is a table that shows how material choices affect performance:

Feature	Description
IP Rating	High IP65 rating keeps out dust and moisture for outdoor and indoor use.
Heat Dissipation	Aluminum and polycarbonate help remove heat, so LEDs last longer.
Material Strength	Aluminum resists impact and bending. Polycarbonate adds extra durability.

Note: Tough materials mean you do not fix or replace lights often.



Thermal Management

It is important to control heat in lights. Good thermal management keeps LEDs from getting too hot. This helps them stay bright. Manufacturers use different ways to cool the lights.

Aluminum spreads heat out so it does not build up.

Parts are placed to let air move and cool the fixture.

High-quality LEDs work well for a long time.

There are two main ways to cool the lights:

Active cooling uses fans or vents for more airflow.

Passive cooling uses heat sinks and pads to move heat away.

Aluminum heat sinks have fins or grooves. These make more surface area. Air can move around the fixture better. This helps in hot places like factories.



Safety Features

Safe lighting is important at work. LED Batten Lights have features to protect people and the fixture. The sealed housing keeps out dust and water. This lowers the chance of electrical problems. Overheat protection turns off the light if it gets too hot. Surge protection keeps the lights safe from power spikes.

IP65 enclosures stop short circuits from water.

Thermal switches turn off lights to prevent fires.

Surge protectors keep lights safe when voltage changes.

Tip: Picking lights with these safety features helps you follow safety rules and lowers repair needs.



Components of LED Batten Lights

Contact now



Housing

A strong housing keeps your lights safe. LED Batten Lights use aluminum, copper, and plastic. Aluminum helps move heat away from the LEDs. Copper makes the fixture strong and helps with heat. Plastic protects the light and keeps wires safe. Silicon is the base for LED chips. Rare earth materials make the light brighter.

Material	Function
Aluminum	Pulls heat away from LEDs, keeps fixture cool.
Copper	Supports structure, helps with heat and wiring.
Plastic	Shields light, insulates electrical parts.
Silicon	Forms the base for LED chips.
Rare earth materials	Boost brightness and efficiency.

Tip: Pick aluminum housing for strong lights and better cooling.



LED Modules

LED modules make your lights bright and save energy. They use special chips for strong light in big spaces. You get more light for each watt used. This means you save money and energy.

LED Batten Lights use less energy than old lights.

They give more light per watt, good for large rooms.

They are brighter than LED tube lights.

Feature	LED Batten Lights	LED Tube Lights	Traditional Tube Lights
Energy Efficiency	High	Moderate	Low
Light Output (lm/W)	160+	100-120	70-90
Lifespan (hours)	50,000+	30,000-40,000	10,000-15,000



Power Driver

The power driver keeps your lights working well. It controls the power so the LED chips do not get hurt. A good driver saves energy and helps the lights last longer. Safety features protect the lights from problems.

The driver gives steady power to the LEDs.

It changes power so less is wasted.

It helps LEDs last longer.

Safety features stop electrical problems.

Good drivers lower interference.

Note: Use certified drivers for safe and strong lights.



Diffuser

The diffuser spreads light and stops glare. Prismatic diffusers help control how light moves. Putting a diffuser over the LEDs makes light even. This helps people see better and feel comfortable.

Prismatic diffusers control glare and light direction.

Diffusers spread light and stop harsh spots.

They make light soft and easy on the eyes.

Diffuser Type	Benefit
Prismatic	Controls glare, directs light
Frosted	Softens light, reduces shadows
Clear	Maximizes brightness



Heat Sink

Heat sinks keep your lights cool and working longer. Extruded aluminum heat sinks have fins for more cooling. Stamped aluminum heat sinks work for small lights. Heat pipes move heat fast in strong lights. Some lights use fans for extra cooling. Heat moves from the LED to the heat sink, then air takes it away.

Extruded aluminum heat sinks are good and save money.

Stamped aluminum heat sinks work for simple lights.

Heat pipes move heat fast in big lights.

Fans help cool lights in hot places.

Fins make more space for heat to leave.

Heat Sink Type	Application	Performance Level
Extruded Aluminum	General industrial use	High
Stamped Aluminum	Low-power applications	Moderate
Heat Pipes	High-power environments	Very High
Active Cooling Fans	Extreme heat situations	Maximum



Mounting Hardware

Mounting hardware helps you put up your lights. You use brackets, screws, and anchors to hold the lights. Tools like wire strippers and screwdrivers help you set up safely. You can change the brackets for different places.

Get your tools and parts ready.

Put up the brackets with screws and anchors.

Connect the wires and tape them.

Use a tester to check the power.

Tip: Flexible mounting lets you use LED Batten Lights in many places.



Integration for Performance and Maintenance

LED Batten Lights work as one system. All parts help the lights work well and last longer. You do not need to fix or change them often. The design has fewer parts, so setup is fast. You save money and get good lights for any industrial job.

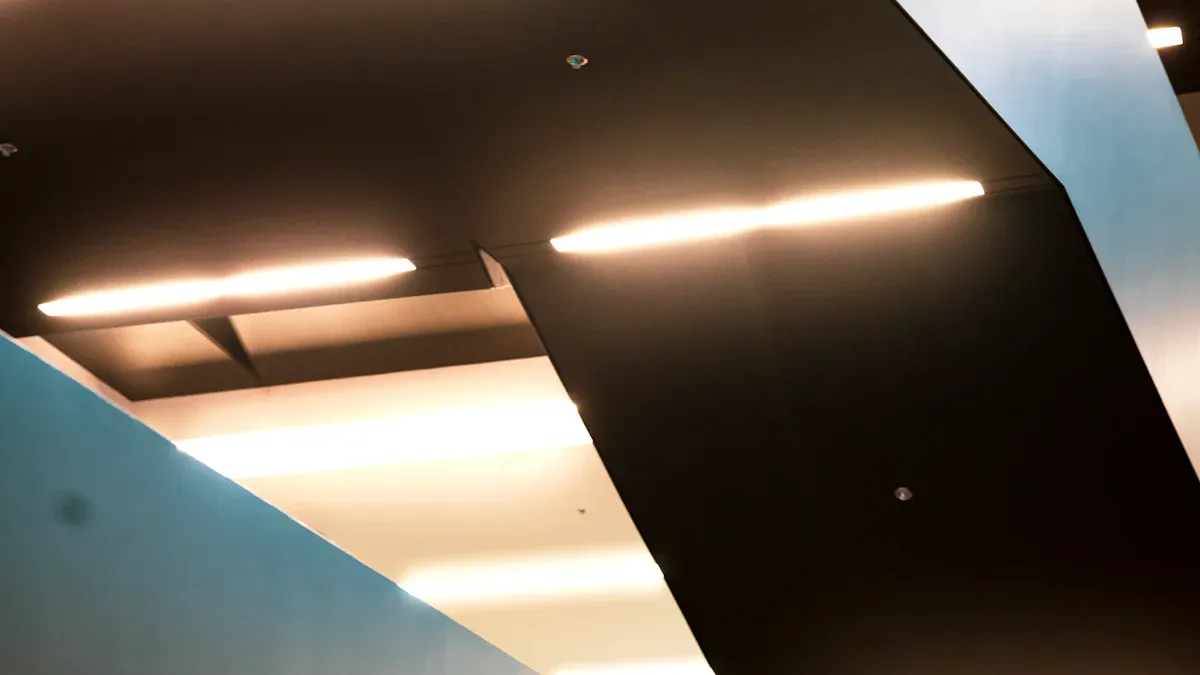

Industrial Applications



Factories

Factories need good lighting to keep work safe. LED Batten Lights are bright and show colors well. They spread light evenly across the room. The table below shows what factories need for lighting:

Lighting Requirement	Specification
Illuminance Levels (Lux)	150–2,000 (varies by task)
Uniformity Ratio	0.6 or more
Color Rendering Index (CRI)	80+
Glare Control	Anti-glare features
Efficiency	Energy-efficient systems

LED Batten Lights use less energy than old lights. You can save up to 75% on power. These lights last up to 50,000 hours. You do not need to fix them often. They are bright and make work safer for everyone.



Warehouses

Warehouses need lights that work in hard places. There is dust, water, and machines moving around. LED Batten Lights have IP65 protection to block dust and water. The aluminum housing is strong and does not break easily. They keep working even when things shake or bump into them.

Feature	Benefit
IP65 Protection	Blocks dust and moisture
Aluminum Housing	Handles impacts and shocks
Vibration Resistance	Stays functional in busy areas
Long Lifespan	50,000–100,000 hours, less maintenance
Standards Compliance	Meets safety and lighting codes

You can save 50–70% on your energy bills. Some models give more than 150 lumens per watt. You can change the brightness in different areas. This saves even more energy.

These lights last a long time. You do not need to replace them often. This is good for tall shelves. Quick swaps keep work going and seals tight.



Parking Garages

Parking garages need bright lights for safety. LED Batten Lights use less power and save money. They give even light with few shadows. Drivers and people feel safer. These lights work in hot or cold weather. They last longer than old lights.

• Using less energy saves money.
• Even light helps people see better.
• Strong fixtures work in any temperature.
• Fewer changes mean less work.
• Bright lights make garages safer at night.
• Using less energy helps the planet.



Benefits Over Traditional Lighting

LED Batten Lights are better than old bulbs. They use 80–90% less energy than incandescent bulbs. You only need 13 watts for 800 lumens. Old bulbs need 60 watts for the same light. You can save 30–90% energy in factories. These lights last 50,000–80,000 hours. You do not need to change them often.

Lighting Type	Energy Use (for 800 lm)	Lifespan (hours)	Maintenance Needs
LED Batten Lights	13W	50,000–80,000	Low
Incandescent Bulbs	60W	1,000	High
Fluorescent Tubes	18–36W	10,000–15,000	Moderate



Buyer Considerations

When you pick lights for your building, think about these things:

Factor	Description
Energy Efficiency	130–150 lumens per watt saves energy
Illumination Levels	Match light output to your space
Installation	Check voltage compatibility and mounting options
Temperature Ratings	Choose fixtures for extreme environments
Color Rendering Index	High CRI improves visibility and quality control
Fixture Options	Pick the right type for your application
Certifications	CSA, UL, and CE ensure safety and performance



Many companies want certified lights for warranty. CSA and UL marks show the lights are safe. This is important for factories and warehouses.

You get lights that work well in hard places with LED Batten Lights. They have a strong build and smart design. Their special parts help you use less energy and spend less on repairs. You save more money over time.

Aspect	LED Batten Lights	Fluorescent Lights
Energy Cost Reduction	Saves you over half	Costs more to run
Lifespan	Lasts more than 50,000 hours	Does not last as long

LED Batten Lights give steady, safe, and cheap lighting. Change your building's lights to make work better and help your business grow.

Contact now

FAQ



Why should you choose LED batten lights for industrial spaces?

LED batten lights use less energy and last longer. You spend less money on electricity and repairs. Their strong build works well in hard places. The light is bright and even, which helps people stay safe and work better.



Why do LED batten lights last longer than traditional tube lights?

LED batten lights have solid-state technology. Their design keeps dust and water away from the LEDs. Good cooling stops them from getting too hot. You do not need to change them often, so you save time and money.



Why is thermal management important in LED batten lights?

Thermal management stops LED batten lights from getting too hot. This keeps the LED chips and power driver safe. The lights work well for a long time. Good cooling also keeps the light bright and the color clear.



Why do B2B buyers prefer LED batten lights over fluorescent fixtures?

B2B buyers want lights that work well and cost less. LED batten lights use less power and need fewer repairs. Their strong design meets safety rules. You get better light and spend less money over time.
