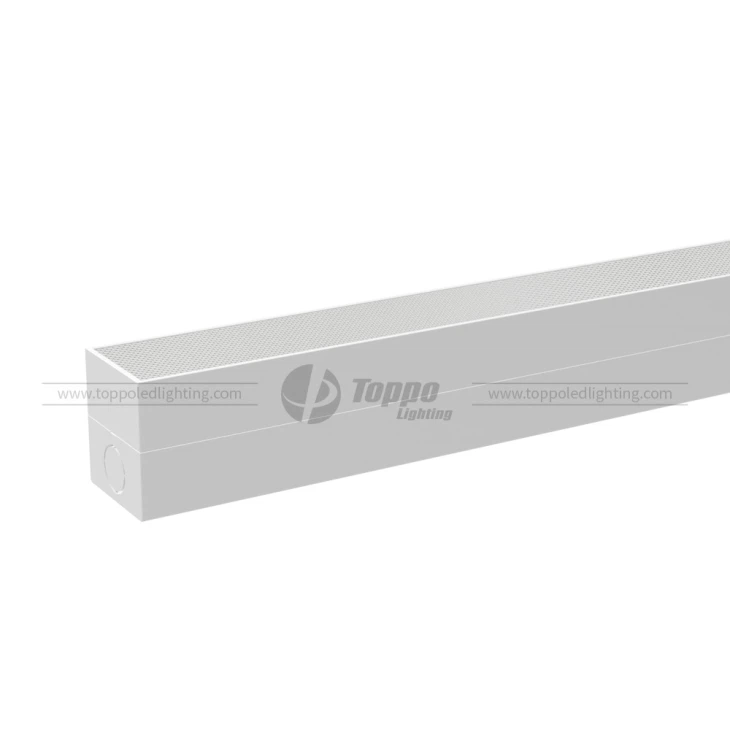

LED Linear Lighting Strips
Product Introduction
LED Linear Lighting Strips is generally installed on relatively high buildings. In addition, it has good performance in terms of water resistance, UV resistance, and oxidation resistance. It is easy to use and meets different installation needs.
Product Features
Its material is soft and flexible, easy to install, and suitable for various environments.
The light color is uniform, anti-glare and comfortable, and the light effect is soft.
Low voltage is not easy to leak electricity and not easy to hurt people.
LED Linear Lighting Strips use a horizontal design to effectively protect the chip.
The heat dissipation is efficient, safe and reliable.
Gentle Linear Retrofit kit
|
 |
| Product Features |
· Patent low glare linear · End or rear cable entry · Multiple link without light gap · 5 years warranty |
| Options |
· Dimming:ON-OFF / 1-10V dimming · Installation : Surface mounting OR suspension |
| Application |

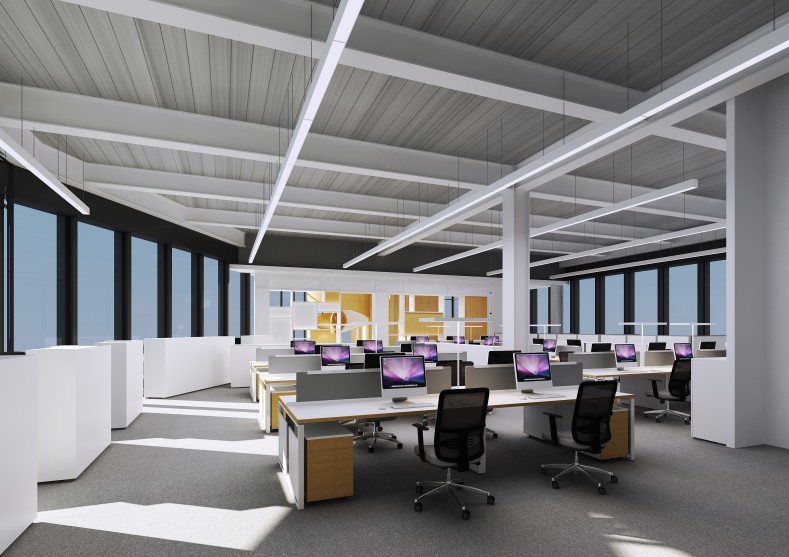

· Replacement for T8 fluorescent batten · Warehouses,Factories, Car Parks,Supermarkets · Stations,Office · etc |
|
 |
 |
●Technical / Electrical Characters (at TA=25°C) Item Symbol L=120CM18W L=120CM/32W L=150CM22W L=150CM40W L=180CWI27W L=180CM/50W Rated Power W 18W 32W 22W 40W 27W 50 Product Code / LGA4D1-18TR LGA441-32TR LGA5D1-22TR LGA5D1-40TR LGA6D1-27TR LGA6D1-50TR LEDType/Qty SMD2835 234X2 273X2 273X2 351 X2 312 X2 390X2 Lumen Eficacy Lm/w typ.110 typ:110 typ.110 typ.110 typ.110 typ.110 Luminous Flux LM typ.1950 typ.3500 typ. 2400 typ. 4400 typ. 2950 typ. 5500 UGR Data 19<UGR<22 Condition Celing/0.7, Wall /0.5 ,Working Plan/0.2 Color Index CRI(Ra) Ra>80 Color Temperature TC(K) TRI-COLOR : 3005000 Mixed: 4000K Beam Angle Degree 120 degree Dimming Funtion / ON _OFF OR 1-10V dimming Power Factor PF PF>0.95 LED current mA Constant 50mA Input Voltage V AC100-277V150Hz Working Voltage V Constant DC36-42V Housing material / Aluminum+PC Starting time S <0.55 Protection Class IP IP20 Temperature °C Operation: -15°C-+50°C Storage: -25°C~ +55°C Lumen Maintenance@6000hrs % 80% Switch cycle before failure times 100000 Life Span h 50,000 hours Warranty / 5years |
|
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
Hot Tags: LED linear lighting strips, China, manufacturers, suppliers, factory, customized, price, newest, made in China
