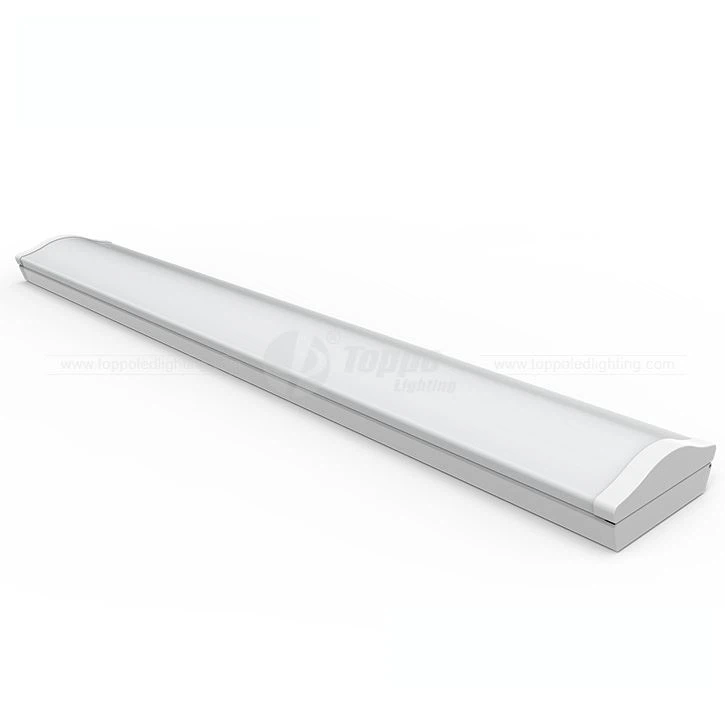

LED Linear UK

· Patent design on product opening

· Micro-wave sensor available

· LED Linear UK has high CRI.

· Easy installation on end cable entry

· Outstanding light effect

· Replacement for T8 fluorescent batten

· Warehouses,Factories, Car Parks,Supermarkets

· Stations,Office

· etc

· Product Name(Unit: mm): 4ft pattern(1200, 215, 88), 5ft pattern(1500, 215, 88)

· Photometry Curve: AVERAGE BEAM ANGLE(50%) 120DEG

· Item: L=120CM/32W, L=150CM/32W, L=150CM/60W

· Rated Power: 32W, 60W

· Product Code

  VBS4P1-32N1, VBS5P1-32N1, VBS5S1-60N1

· LED Type/Qty: SMD2835 : 221, 325

· Lumen Efficacy

  Lm/w: typ.125

· Luminous Flux

  Frosted: typ.4000, typ.7500

· UGR

 19<UGR<22

· Color Index

  CRI(Ra): Ra>80

· Color Temperature

  TC(K): WW:3000K, NW:4000K, PW:5000K, CW:6000K

· Beam Angle

  Degree: 120 degree

· Dimming Function

  ON-OFF / 1-10V dimming / MS

· Housing Material

  Steel Case+PC Cover

· Power Factor

  PF>0.95

· LED current

  mA: Constant 50mA

· Input Voltage

  V: AC200~240V/50Hz

· Working Voltage

  V: Constant DC36~42V

· Starting time

  S: <0.5S

· Lumen Maintenance @6000hrs

  80%

· Protection Class

  IP: IP20

· Swtich cycle before failure

  times: 100,000

· Temperature

  Ope ration:-15°C~+50°C    Storage :-25°C~+55°C

· Life Span

  50,000 hours

· Warranty

  5 years

LED Linear UK is a Led lamp with precision quality. It has longevity and durability, outstanding light effect, stable brightness, and is the first choice for home and business. It can replace ordinary fluorescent tubes and is widely used in home decoration and commercial places such as offices, hotels and factories.
