LED battens can be connected through the end or rear knock-oouts in the end and rear of the unit.This allows for end-to-end continuous installation.This special design makes the batten widely used in factories,supermarket,public transport stations and so on.The LED battens are held by a simple clip design ensuring a simple installation procedure.
Send Inquiry

Patent Design Slim Batten Tube

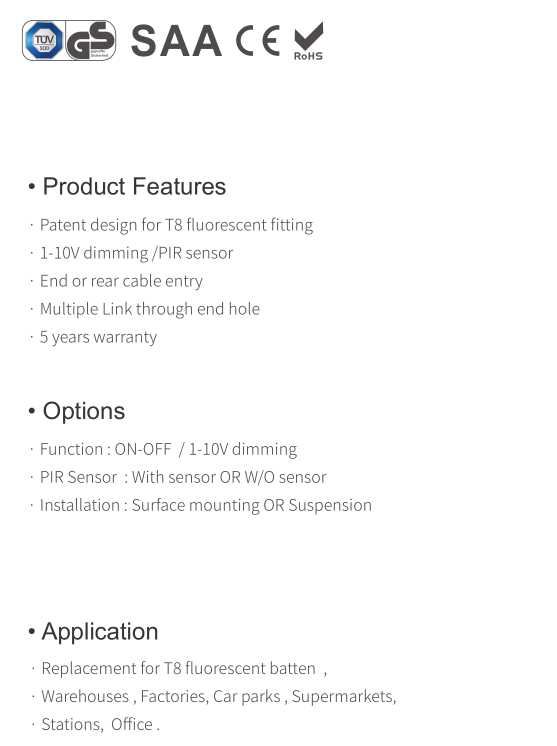

Key Features







Options

> Case finish: White or silver

> Lighting Cover: Clear or Frosted

> Warm white: WW/3000K

> Neutral white: NW/4000K

> Pure white: PW/5000K

> Cool white: CW/6000K

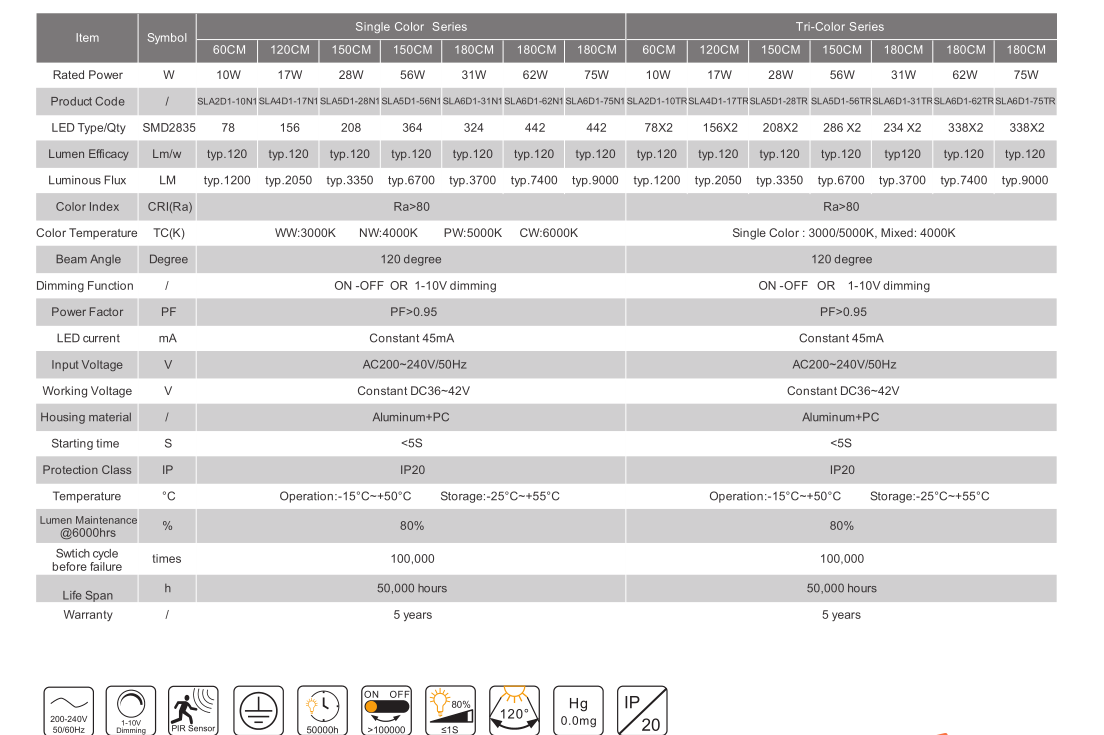

Technical Features

Input Voltage: AC90-277V 50/60Hz

Operation Voltage: DC36-42V

Total harmonic distortion: THD<10%

Power Factor: PF>0.95

Color Index: Ra>80

Lumen maintenance @6000h: >80%

Switching cycle before failure: 100,000

IP Rating: IP20

Life Span: 50,000 hours

Warranty: 5 years

Operation Temperature: -15°C~+50°C

Storage Temperature: -25°C~+55°C
