Pro Flex System Led Linear Lighting

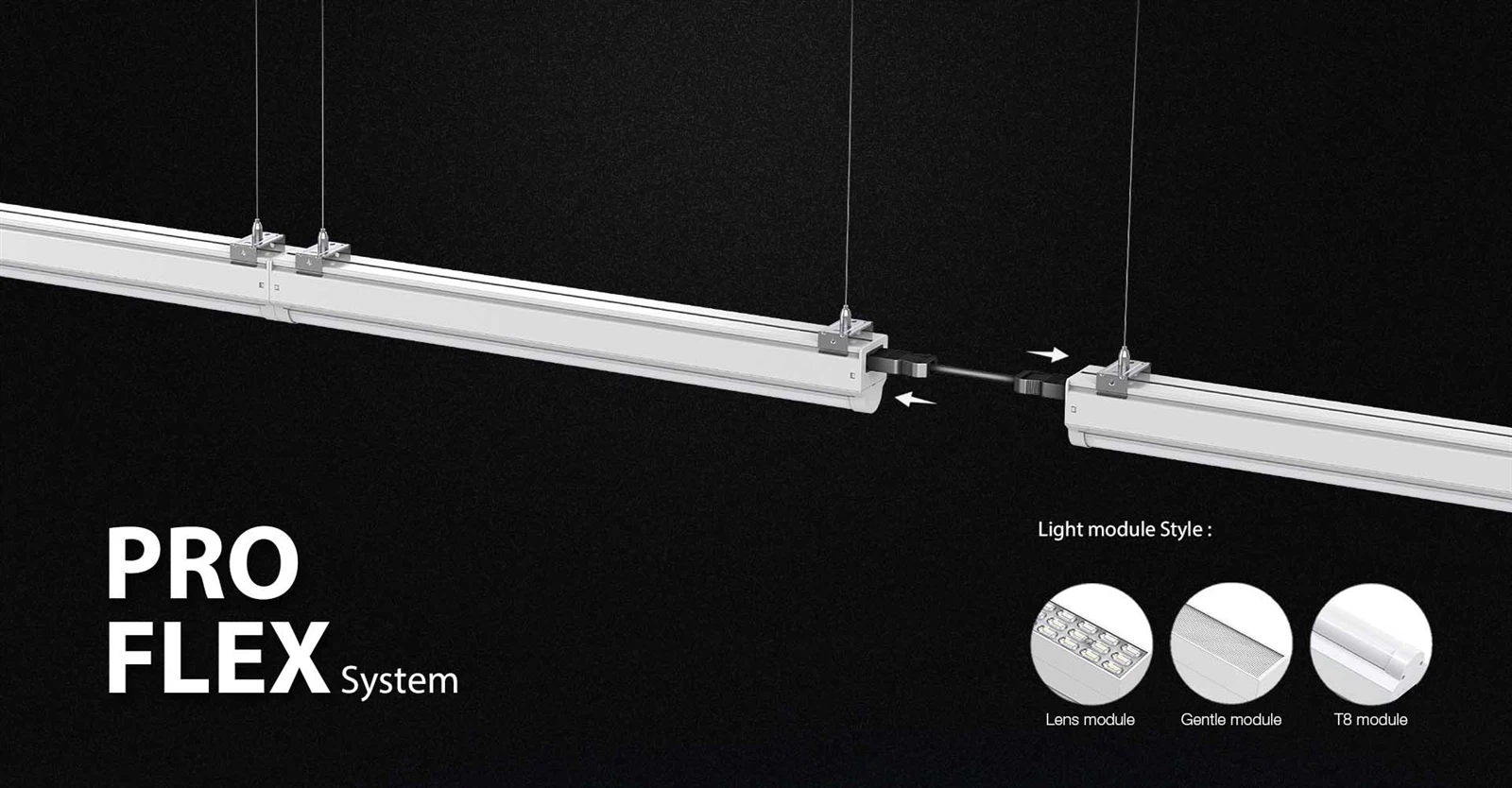

Pro Flex is a own designed multiple link led linear light system, adopts 5 different light modules: Weston UGR light module, Frosted light module, T8 Light module, Lens light module and Narrow light module, which provide the optimized lighting solution for industrial and commercial applications, such as: Supermarket, Shopping Malls, Offices, Factories, Warehouse, etc. Pro Flex delivers a tool free magnet installation which can be max 100 meters multiple link, 600mm/1200mm/1500mm/1800mm size as options. Loop in and out, fast connector design for easier wire connection, easy installation and maintenance, widely installation way: surface mounted/ suspended/ magnet installation.

Send Inquiry

Combine Your Ideas with Our high-quality led lighting projects

If you have more solutions for lighting fixtures, please feel free to consult us and we will do our best to develop them for you.

Send Inquiry Now

Pro Flex offers tool-free magnet mounting, up to 100m multi-link. LED linear light strips are available in 2 ft/4 ft/5 ft/6 ft sizes. Loop in and out linear light, fast connector design for easier wire connection, easy installation and maintenance, a wide range of installation options: surface mounted/ suspended/ magnet installation.

Led Module	Order Code	Rated Power	LM/W	Lumen	SDCM/Ra	IP Class	Product dimension	GW/CTN	QTY/CTN
Lens Module(30°/60°/90°/LR25° optional)	LL300-04W-KN1-40F01-00	20/40W	Typ.125	typ.2500/5000	SDCM<3,<5/Ra80,90	IP20	L1205 X W55 X H58	11.5kg	8pcs
Lens Module(30°/60°/90°/LR25° optional)	LL300-05W-KN1-50F01-00	30/50W	Typ.125	typ.3750/6250	SDCM<3,<5/Ra80,90	IP20	L1505 X W55 X H58	14.5kg	8pcs
Lens Module(30°/60°/90°/LR25° optional)	LL300-06W-KN1-60F01-00	30/60W	Typ.125	typ.3750/7500	SDCM<3,<5/Ra80,90	IP20	L1805 X W55 X H58	17.5kg	8pcs
Gentle Module (UGR<22)	LL305-04W-KN1-40F01-00	20/40W	Typ.125	typ.2500/5000	SDCM<3,<5/Ra80,90	IP20	L1205 X W55 X H64	11.5kg	8pcs
Gentle Module (UGR<22)	LL305-05W-KN1-50F01-00	30/50W	Typ.125	typ.3750/6250	SDCM<3,<5/Ra80,90	IP20	L1505 X W55 X H64	14.5kg	8pcs
Gentle Module (UGR<22)	LL305-06W-KN1-60F01-00	30/60W	Typ.125	typ.3750/7500	SDCM<3,<5/Ra80,90	IP20	L1805 X W55 X H64	17.5kg	8pcs
T8 Module	LL307-04W-KN1-40F01-00	20/40W	Typ.125	typ.2500/5000	SDCM<3,<5/Ra80,90	IP20	L1205 X W55 X H58	11.5kg	8pcs
T8 Module	LL307-05W-KN1-50F01-00	30/50W	Typ.125	typ.3750/6250	SDCM<3,<5/Ra80,90	IP20	L1505 X W55 X H58	14.5kg	8pcs
T8 Module	LL307-06W-KN1-60F01-00	30/60W	Typ.125	typ.3750/7500	SDCM<3,<5/Ra80,90	IP20	L1805 X W55 X H58	17.5kg	8pcs
