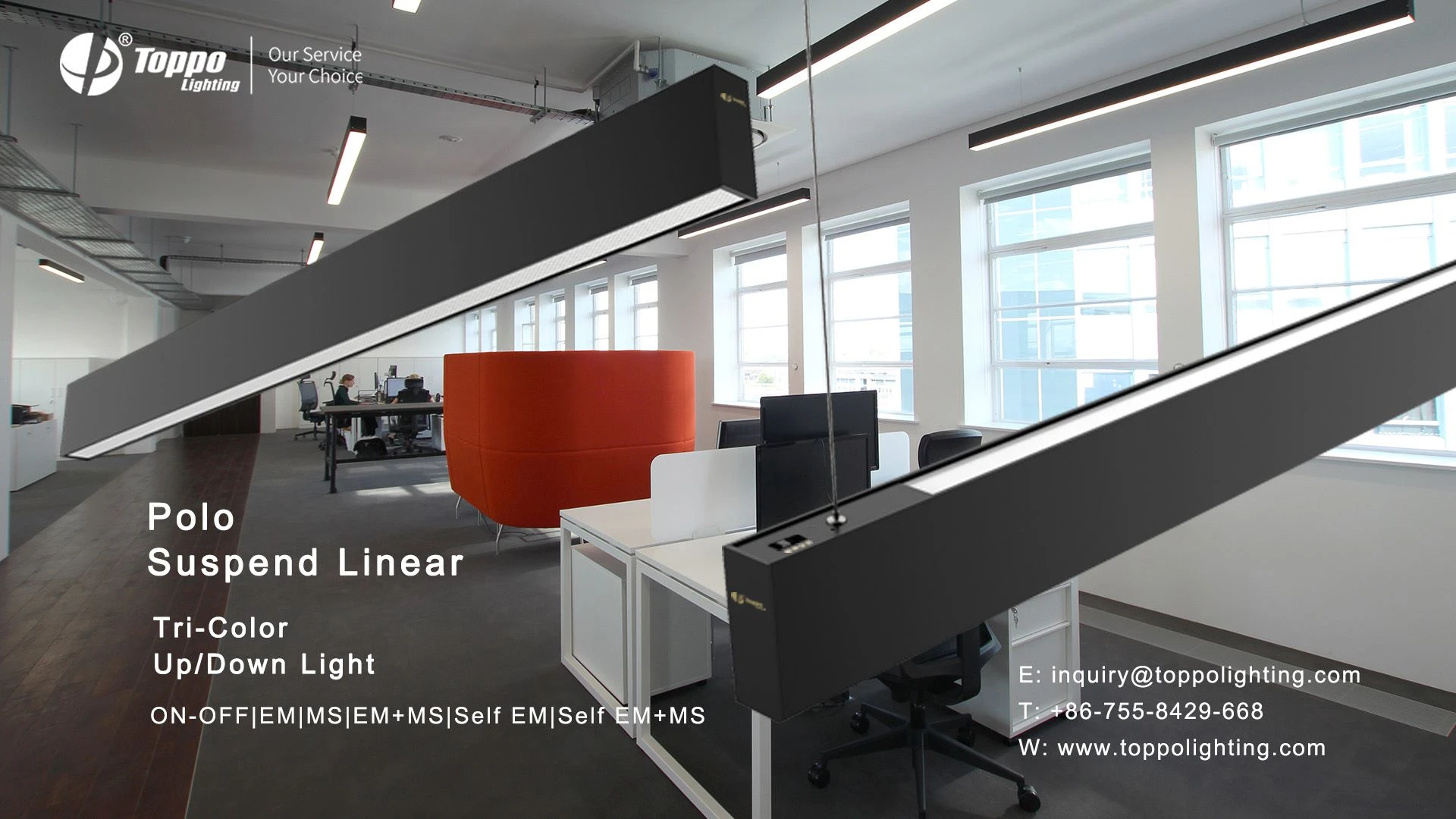

LED Polo Suspend Linear Light Up Down Lighting 120cm/42W 150cm 56W
• Applications
> Replacement for normal battens
> Education light : Classrooms
> Office Light : Offices, Conference Rooms
> Commercial Light : Supermarkets, Shopping malls
Send Inquiry
| Features: | Emitting color: |
| • Suitably efficient - up to 110 LM/W | · Tri-Color |
| • Opal cover | Installation : |
| • Independent control of Up and Down lighting | · Suspension |
| • Contructed by Aluminum for heating dispatching | Function: |
| • 4 steps switch for Tri-color option | • F1: 1-10V Dimming |
| • Integral driver on the gear tray | • F2: 1-10V + 3H EM |
| • 1-10V dimming as standard | • F3: ON/OFF + MS |
| • Suspension Installation | • F4: ON/OFF + MS + 3H EM |
| • 120cm 36W Down+6W Up, 150cm 50W Down+6W Up | • F5: 1-10V + 3H Self EM |
| • Constant up light at 6W/360LM | • F6: ON/OFF + MS + 3H Self EM |
| • Case color: Matt White/ Matt Grey/ Matt Black | |
| • Warranty: 5 years , EM Battery: 2 years |
Specifications
|
Order Code |
Product Name |
Wattage |
Lumen Output |
Lumen Efficiency |
CRI |
CCT | AC Input |
Power Factor |
Flicker Free |
|
BT04-36GN1 -PLF1J-001 |
120CM-36W Suspend Linear |
36W | 3780LM | 105LM/W |
Ra>80 |
Tri color: 3000/ 4000/5000K |
AC200-240V | PF>0.95 | Y |
|
BT04-50GN1 -PLF1J-001 |
120CM-50W Suspend Linear |
50W | 5250LM | 105LM/W |
Ra>80 |
Tri color: 3000/ 4000/5000K |
AC200-240V | PF>0.95 | Y |
|
BT05-50GN1 -PLF1J-001 |
150CM-50W Suspend Linear |
50W | 5250LM | 105LM/W |
Ra>80 |
Tri color: 3000/ 4000/5000K |
AC200-240V | PF>0.95 | Y |

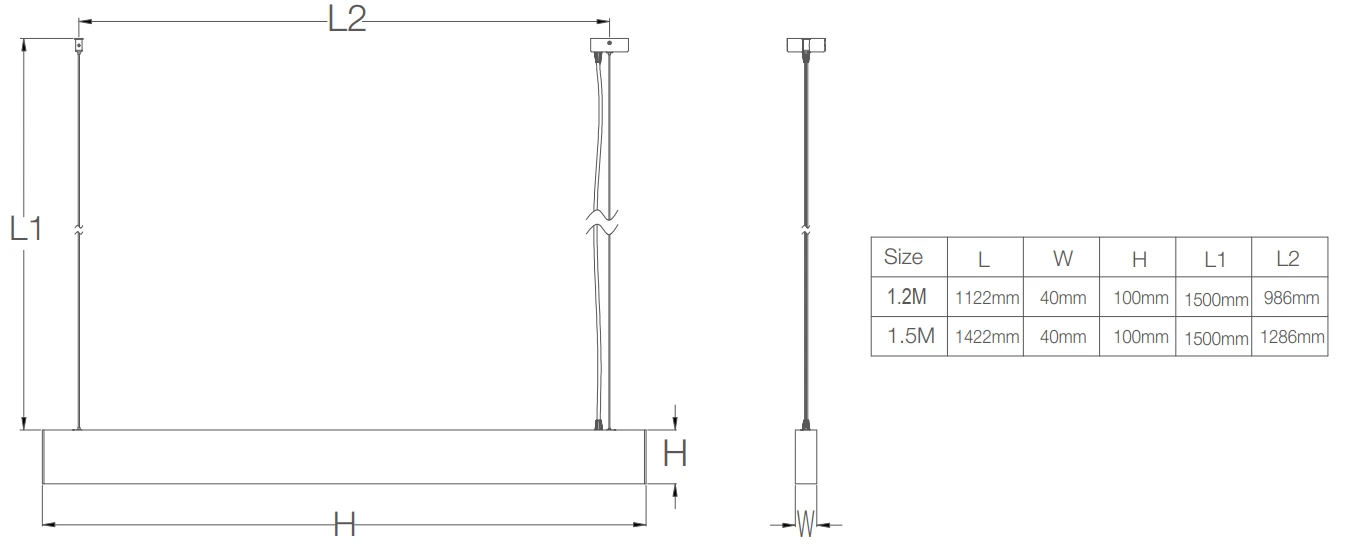

Product Size
Different Color To Choose
 |
 |
 |
| Black | Grey | White |
