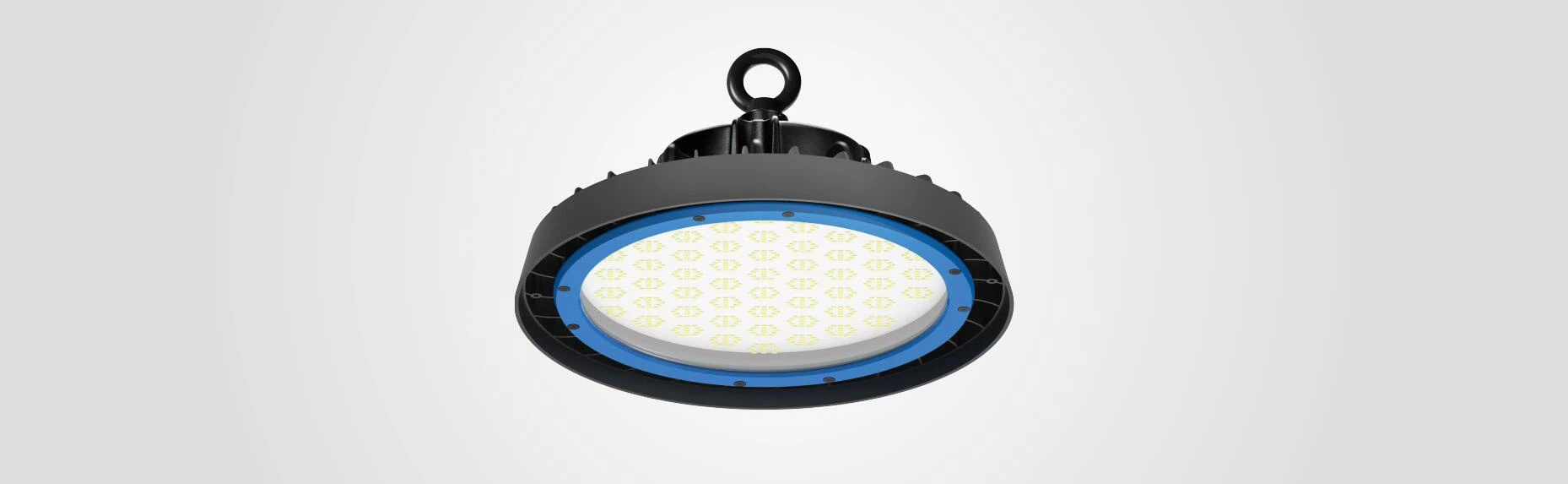

MatePro UFO Highbay Glass Cover, 180LM/W With Stand-by Motion Sensor
Overview
Our MatePro UFO Highbay Glass Cover is safe and environment-friendly, free of heavy metals and resistant to high temperature. Our lampshade has a special shape, which can effectively prevent mosquitoes. Details decide success or failure, quality wins the market. The essence of life is the return of taste and texture. Our products have stable performance and smooth appearance.
We choose high quality glass material to make better products for you. Our MatePro UFO Highbay Glass Cover has the characteristics of high strength, safety and non-toxic, not easy to aging, not fade and so on. It has good light transmission, long service life, corrosion resistance and easy cleaning. Using polishing treatment, the edge is smooth and does not hurt hands.
| Item | Symbol | Advance:160LM/W | Advance:180LM/W | ||||||
| D300 | D300 | D350 | D350 | D300 | D300 | D350 | D350 | ||
| Unit Power | W | 100W | 150W | 200W | 240W | 100W | 150W | 200W | 240W |
| Product Code | / | HB30-1ADN1 -UGN5M-001 | HB30-1BDN1 -UGN5M-001 | HB30-2ADN1 -UGN5M-001 | HB30-2BDN1 -UGN5M-001 | HB30-1ATN1 -UGN5M-001 | HB30-1BTN1 -UGN5M-001 | HB30-2ATN1 -UGN5M-001 | HB30-2BTN1 -UGN5M-001 |
| LED Type/Qty | SMD2835 | 444 | 444 | 636 | 636 | 750 | 750 | 1152 | 1152 |
| Lumen Efficacy | Lm/w | typ.160 | typ.160 | typ.160 | typ.160 | typ.180 | typ.180 | typ.180 | typ.180 |
| Luminous Flux | LM | typ.16000 | typ.24000 | typ.32000 | typ.38400 | typ.18000 | typ.27000 | typ.36000 | typ.43200 |
| Color Index | CRI(Ra) | Advance/Deluxe:Ra>80 , Top:Ra>70 | |||||||
| Color Temperature | TC(K) | WW:3000K, NW:4000K, PW:5000K, CW:6000K | |||||||
| Beam Angle | Degree | 110° | |||||||
| Dimming Function | / | ·1-10V Dimming · Motion sensor ·Emergency ·DALI control ·Daylight sensor | |||||||
| LED current | mA | Constant 60mA | |||||||
| Input Voltage | V | AC100~277V/50Hz | |||||||
| Working Voltage | V | Constant DC36~60V | |||||||
| Housing material | / | Aluminum + PC | |||||||
| Protection Class | IP | IP65/IK10 | |||||||
| Temperature | °C | Operation:-15°C~+50°C Storage:-25°C~+55°C | |||||||
| Life Span | h | 50,000 hours | |||||||
Switching Cycle before Failure | / | >100,000 times | |||||||
| Warranty | Y | 5 years | |||||||

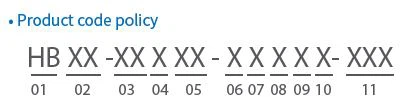

Dimension
01. Product category: HB: High Bay Light
02. Product dimension: eg: 30:Φ300mm;
03. Rated power: eg: 1A: 100W; 1B: 150W
04. Luminous Efficacy: A:Advanced 140LM/W
05. Color Temperature: eg:N1: 4000~4500K
06. Product name: U: UFO Highbay
07. Product version: G:Glass Cover
08. Electrical function:N:ON/OFF
09.Power attribute:5:AC100-277V Flicker free power drive
10.Power supply manufacturer
11.Series No.: 001-499.
