What is a T5 and T8 LED tube light?

You often hear the question, what is a t5 and t8 led tube light? These names tell you about the size and shape of the led tube light. The "T" stands for "tubular," and the number shows the diameter in eighths of an inch-t5 means 5/8 inch, and t8 means 1 inch. Knowing what is a t5 and t8 led tube light helps you pick the right led option for your space. These choices matter because more people switch to led lighting every year.

The global market for these tube lights could reach over $2 billion by 2033, showing how important it is to understand what is a t5 and t8 led tube light before you buy.



What is a T5 and T8 LED tube light

If you ask, "what is a t5 and t8 led tube light," you want to know how they are different. You also want to know which one is best for you. T5 and T8 tell you the shape and size of the tube. The "T" means tubular. The number shows the diameter in eighths of an inch. T5 is 5/8 inch wide. T8 is 1 inch wide. These sizes change how you use each LED tube light at home, school, or work.



T5 LED Tube Light

A t5 led tube is slim and works very well. You see t5 led tubes where bright light is needed but space is small. The t5 tube fits into tight fixtures. It is used in fancy stores, labs, and display cases. The tube is about 5/8 inch wide. It is much thinner than a t8 tube.

Note: T5 LED tubes last longer and use less energy than old fluorescent tubes. You save money on power and replacement over time.

Here is a table that shows the main features of a t5 led tube and a t8 led tube:

Specification	T5 LED Tube Light	T8 LED Tube Light
Diameter	5/8 inch (about 16 mm)	1 inch (about 25 mm)
Length	Commonly 600 mm, 1200 mm, varies	Commonly 600 mm, 1200 mm, standard sizes
Luminous Efficiency	Over 90 LM/W	About 70 LM/W
Lifespan	Nearly twice as long as T8 tubes	About 10,000 hours
Lumen Output	Lower than T8 but high efficiency	Higher lumen value (1450-2400 LM)
Color Rendering Index	Ra over 80 (better color rendering)	Standard color rendering
Ballast Compatibility	Electronic ballasts only	Magnetic and electronic ballasts
Cost	More expensive due to higher efficiency	More cost-effective, budget-friendly
Typical Applications	High-end commercial, art exhibitions, labs	Offices, retail stores, classrooms

T5 led tubes give more light for each watt. This means you use less energy for the same brightness. The slim tube fits where t8 tubes cannot. T5 tubes show colors better, so things look bright and real. Many t5 led tubes let you pick the color temperature and do not flicker. These features help your eyes feel better and let you choose the best light.





T8 LED Tube Light

A t8 led tube is the most common led tube light. You find it in offices, schools, and stores. The t8 tube is 1 inch wide, so it is bigger than a t5 tube. T8 tubes fit in regular fixtures. These tubes are often 2, 3, 4, or 5 feet long. They give good brightness, use less energy, and cost less.

T8 led tubes work with magnetic and electronic ballasts. You can also use them in fixtures without a ballast. This makes them easy to put in many places. T8 tubes give more light, so they are good for big rooms like classrooms and warehouses.

Here is a quick list of what makes t8 led tubes different from t5 tubes:

• T8 tubes are wider (1 inch) and fit regular fixtures.
• They give more total light, which is good for big spaces.
• T8 tubes cost less at first, so they save money.
• They come in standard lengths, usually 4 feet, so you can swap old tubes easily.
• T8 tubes do not fit in t5 fixtures because they are different sizes.

New t8 led tubes have flicker-free light and full-spectrum choices. These help your eyes and make colors look better. Some t8 led tubes let you pick the color temperature, so you can change the light for your needs.

When you look at what is a t5 and t8 led tube light, you see t5 tubes are slimmer and use less energy. T8 tubes give more light and fit most fixtures. Both types help you save energy and meet new lighting rules at home and work.





Differences

When you compare T5 and T8 tube lights, you see several key differences. These differences help you choose the best option for your lighting needs. Let's look at each area in detail.



Size and Shape

T5 and T8 tubes have different sizes and shapes. The T5 tube light is slimmer, measuring 5/8 inch in diameter. The T8 tube light is wider, with a diameter of 1 inch. This size difference affects how each tube fits into fixtures.

Tube Type	Diameter	Common Lengths
T5	5/8 inch	2 ft, 3 ft, 4 ft
T8	1 inch	2 ft, 3 ft, 4 ft, 5 ft

You cannot use a T5 tube light in a T8 fixture or the other way around. The pin sizes and lengths do not match. T5 tubes work best in compact fixtures or places with limited space. T8 tubes fit standard fixtures and are common in offices and schools.

Tip: Always check the fixture size before you buy a new tube. This step saves you time and money.





Brightness

Brightness is a key factor when you pick a tube light. T5 and T8 tubes offer different levels of light output. You measure brightness in lumens. A standard 4-foot T8 LED tube gives about 3,000 lumens while using 25 to 32 watts. T5 high-output tubes can reach up to 5,000 lumens but use more power.

Tube Type	Length	Wattage	Typical Lumen Output
T5HO	4 ft	54 W	~5,000 lumens
T8	4 ft	32 W	~3,000 lumens

T5 tubes often appear brighter and work well in places that need high-bright LED tube lights, such as labs or display cases. T8 tubes give enough light for most rooms, like classrooms or warehouses. If you want the brightest option, T5 high-output tubes stand out.





Energy Efficiency

Energy efficiency matters if you want to save on power bills. Both T5 and T8 LED tubes use less energy than old fluorescent tubes. T8 tubes use about 32 watts for a 4-foot tube and give you 3,000 lumens. T5 high-output tubes use about 54 watts for 5,000 lumens.

Tube Type	Wattage (4-foot tube)	Lumen Output	Notes
T5 (T5HO)	~54 watts	~5,000 lumens	High brightness, more power used
T8	~32 watts	~3,000 lumens	Good for general use, more energy efficient for lower brightness needs

You get more light per watt with T5 tubes, but they use more power for higher brightness. T8 tubes are more energy efficient for standard lighting needs. Both types help you move toward energy-efficient lighting and lower your carbon footprint.

Note: LED tubes, including both T5 and T8, last much longer than fluorescent tubes. Many LED tubes work for about 50,000 hours, which means you replace them less often.



Cost

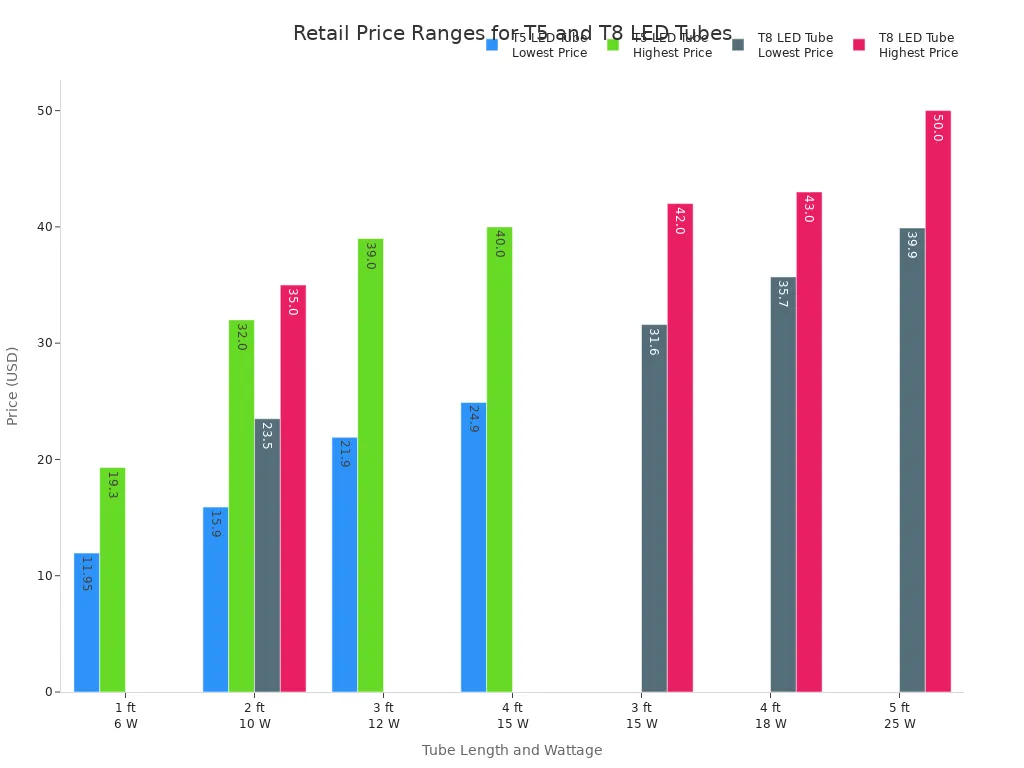

Cost is another important factor. Basic LED tube lights start at around $7 to $15 each. Prices change based on length, wattage, and special features. T5 tubes often cost more than T8 tubes, especially for high-output or specialty models.

LED Tube Type	Length	Wattage	Price Range (Special to Regular)
T5 LED Tube	1 ft	6 W	$11.95 - $19.30
T5 LED Tube	2 ft	10 W	$15.90 - $32.00
T5 LED Tube	3 ft	12 W	$21.90 - $39.00
T5 LED Tube	4 ft	15 W	$24.90 - $40.00
T8 LED Tube	2 ft	10 W	$23.50 - $35.00
T8 LED Tube	3 ft	15 W	$31.60 - $42.00
T8 LED Tube	4 ft	18 W	$35.70 - $43.00
T8 LED Tube	5 ft	25 W	$39.90 - $50.00

Premium T8 light bulbs, such as full spectrum or high CRI models, can cost much more. Some reach up to $179 per tube for special uses like art studios or horticulture. If you want an energy-efficient and cost-effective solution, compare the features and prices before you buy.



Compatibility

Compatibility means how well a tube fits and works in your current fixture. T8 LED tubes give you more options. You find T8 tubes that work with electronic ballasts, magnetic ballasts, or direct wiring. Some T8 tubes are plug-and-play, while others need you to bypass the ballast.

T8 LED tubes come in several types:

• Type A: Works with electronic ballasts (plug-and-play)
• Type B: Needs ballast bypass (direct wiring)
• Hybrid: Works with both ballasts and direct wiring
• Universal: Fits both T12 magnetic and T8 electronic ballasts

T5 tubes need special fixtures and ballasts. You cannot use a T5 tube in a T8 fixture. The pin size and wiring are different. T5 tubes have less retrofit flexibility. You must match the tube to the right fixture and ballast.

Aspect	T5 LED Tube Lights	T8 LED Tube Lights
Mechanical Compatibility	Not cross-compatible with T8 fixtures; needs T5 fixtures	Fits T8 fixtures; some fit T12 fixtures too
Ballast Compatibility	Needs T5 ballasts only	Many types: plug-and-play, ballast bypass, hybrid, universal
Installation Complexity	Needs matching fixture and ballast	Plug-and-play or rewiring options available
Retrofit Flexibility	Limited	High; many retrofit options

Safety Tip: Always turn off power before you install or replace any LED tube light. Follow the instructions for your tube type to avoid electrical hazards.



Key Differences at a Glance

• T5 tubes are slimmer, brighter, and often more efficient for high-output needs.
• T8 tubes are wider, fit more fixtures, and offer more retrofit options.
• You cannot swap T5 and T8 tubes due to size and wiring differences.
• T8 light bulbs are usually more cost-effective for standard spaces.
• Both types help you achieve energy-efficient and cost-effective lighting.





Applications of LED Tube Light



T5 Uses



T5 LED tubes are used where strong light is needed. They fit in small spaces and work well in busy places. You see T5 tubes in offices, gyms, and workshops. They are also used in warehouses and display cases. Many people pick T5 tubes for art galleries and under cabinets. The slim shape lets them fit in tight spots. T5 tubes save energy and lower bills. They last over 50,000 hours, so you do not change them often. This is good for places where fixing lights is hard.

Here is a table showing common commercial uses for T5 LED tubes:

Application	Benefit
Offices	Bright, efficient lighting for workspaces
Warehouses	Lights large areas with energy savings
Retail Stores	Improves product visibility
Schools	Flicker-free light for classrooms
Garages	Durable, long-lasting workspace lighting
Art Galleries	Enhances artwork without damage

Tip: T5 LED tubes are great for places that need bright light and little upkeep.



T8 Uses

T8 LED tubes are the most popular for homes and businesses. You find T8 tubes in kitchens and living rooms. They are also in offices and supermarkets. Many schools and stores use T8 tubes. T8 tubes fit most fixtures, so you can swap old lights easily. They give bright, even light and help save energy. In factories and garages, T8 tubes work well because they are tough. You can use T8 tubes in supermarket aisles to make products easy to see.

Some T8 tubes are made for tough places. These tubes resist dust, water, and heat. They are good for food plants and factories.

• T8 LED tubes fit most home and office fixtures.
• T8 bulbs turn on right away with no wait.

You can pick plug-and-play, hybrid, or universal types for easy setup.



Choosing for Your Needs

Think about your space before picking T5 or T8 tubes. T5 tubes are best for small areas or places that need bright light. Labs and display cases use T5 tubes a lot. T8 tubes are better for big rooms like classrooms or supermarkets. Both T5 and T8 tubes help save energy and need less fixing.

Look at these things before you choose:

• Fixture fit: T5 tubes need special fixtures. T8 tubes fit most regular ones.
• Brightness: T5 tubes are brighter for their size. T8 tubes light up bigger spaces.
• Cost: T5 tubes cost more but last longer and use less power.
• Environment: Pick strong tubes for tough places like factories.

Remember: Always check your fixture and lighting needs before buying a new LED tube light. This helps you get the best results and saves money.





Choosing

Factors to Consider

When picking a new LED tube light, check a few things. First, measure your old tube's diameter. T5 tubes are about 5/8 inch wide. T8 tubes are 1 inch wide. Look at the label on your old tube to see its type. Next, check what kind of ballast your fixture has. Old fixtures often use magnetic ballasts. Most T8 fixtures have electronic ballasts. Decide which LED tube type works for you. Type A tubes work with electronic ballasts and are easy to put in. Type B tubes need you to skip the ballast and wire them straight in. Hybrid tubes let you use either way.

Use this table to compare important things:

Criterion	Explanation
Lumen Output	More lumens mean brighter light for big rooms.
Color Temperature	Warm white is good for homes. Cool white is better for stores or security.
Energy Efficiency	Lower wattage means you save power and money.
Durability	Pick tubes with high IP ratings for outside use.
Safety Certifications	UL and CE marks show the tube is safe.
Installation & Maintenance	Easy to install and care for means the tube lasts longer.
Cost Considerations	Think about both the price now and how long the tube will last.

Do not pick a tube just because it is cheap. Good quality and trust matter for how long it works. Look for tubes with a high L70 rating. This means the light stays bright for many years.



Replacement Tips

Switching from fluorescent to LED tubes saves energy and money. First, turn off the power at the breaker. Use a voltage tester to make sure it is safe. Take out the old tube carefully. If you use a Type B tube, take out the ballast and connect the wires right to the lamp holders. Follow the wiring diagram for your tube. Put in the new T8 or T5 LED tube and make sure it fits well. Turn the power back on and test the light. It should turn on right away with no flicker.

Clean your LED tubes often so they last longer. Dust can block light and make them less bright. Check your tubes for flickering or dimming. Fix bad wires and use surge protectors to stop damage from power spikes. Mount the tubes well to stop shaking and help them last longer.

Tip: If you do not know how to wire, ask a licensed electrician for help. Safety is always most important.



Mistakes to Avoid

People sometimes make mistakes when putting in new tubes. Wrong wiring can cause short circuits or sparks. Always follow the instructions for your T5 or T8 LED tube. Loose wires or bad planning can use too much power. Know how much power your fixture can handle. Place tubes so the light spreads out evenly. Do not use cheap tubes without safety marks. These might not be safe and can break early.

• Do not wire single-ended tubes the wrong way.
• Double-ended wiring is safer for most jobs.
• Plan your setup to stop using too much power.
• Buy tubes from good brands with safety marks.

Check your lights often and plan well. This helps you avoid problems and keeps your lighting safe and affordable.

There are clear differences between t5 and t8 LED tube lights. T5 tubes use less energy and give more light for each watt. This helps you save electricity as time goes on. T8 tubes cost less at first and fit most light fixtures. This makes them simple to put in. Both types last longer than old fluorescent tubes. They also help cut down on greenhouse gas pollution. Before you pick one, look at your fixture size, how bright you want the light, and how much you want to spend. Choosing the right tube saves you money and helps the planet.

FAQ

What is the main difference between a T5 and T8 LED tube light?

You will notice the key differences in size and efficiency. A T5 tube light measures 5/8 inch in diameter, while a T8 tube light is 1 inch wide. T5 LED tubes often provide higher efficiency and brighter light for their size.

Can I use a T5 LED tube in a T8 fixture?

No, you cannot use a T5 LED tube in a T8 fixture. The sizes and pin configurations do not match. Always check your fixture before buying a new LED tube light to ensure compatibility.

Are T8 LED tubes more cost-effective than T5 tubes?

T8 LED tubes usually cost less at first and fit most fixtures. T5 LED tubes last longer and use less energy, which saves money over time. Both options help you achieve energy-efficient and cost-effective lighting.

Where should I use high-bright LED tube lights?

You should use high-bright LED tube lights in places that need strong, clear light. These include supermarkets, warehouses, and display cases. A T8 LED tube for supermarket aisles helps products stand out and improves visibility.

How do LED tube lights help with energy-efficient lighting?

LED tube lights use less power than old fluorescent tubes. You save on electricity bills and reduce greenhouse gas emissions. Both T5 and T8 light bulbs support energy-efficient and cost-effective upgrades for homes and businesses.
