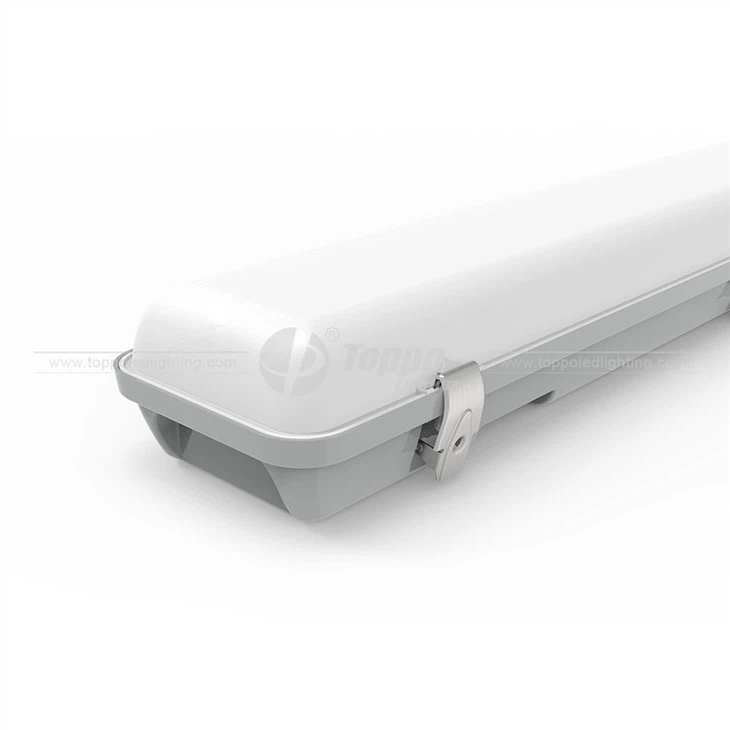

1-10V dimming IP65/IK8 Tri-Color 125LM/W Full Plastic Case Toppo A Version LED Tri Proof Light

Send Inquiry Chat Now
2017 Toppo Led Tri Proof Light A version /Full Plastic Case, 1-10V dimming/DALI 120-130LM/W,Beam Angle 120 degree,TUV-GS/SAA/CE/ROHS approved,IP65/IK08,The 50000 hours life span and 100,00 Switch cycle before failure with 5 years warranty.


Key Features

IP65 water proof /IK8/dust proof /
Led driver on tray for easy replacement

Multiple Dimming Function

Construction Features
Full Plastic Case
IP65/IK8 connector for multiple link
Single or double side wiring


Replacement for fluorescent NCF fittings

in commercial and industrial application

such as Factory,Warehouse,Supermarket, Car parks, factories,sports facilities,food storage

Technical Features
Input Voltage:
LED BOKE driver: AC200-240V 50/60Hz
Operation Voltage: DC36-42V
Total harmonic distortion: THD<15%
Power Factor: PF>0.95
Color Index: Ra>80
Lumen maintenance @6000h: >80%
Switching cycle before failure: 100,000
IP Rating: IP65
Life Span: 50,000 hours

Warranty: 5 years

Lumen Maintance after 6000hrs

Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C?




Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.


1.how important is IP ?

Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.

2.What is IK ?

The protection level of the external mechanical collision of electrical equipment

3.what’s the meaning of “Beam Angle ?

The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
