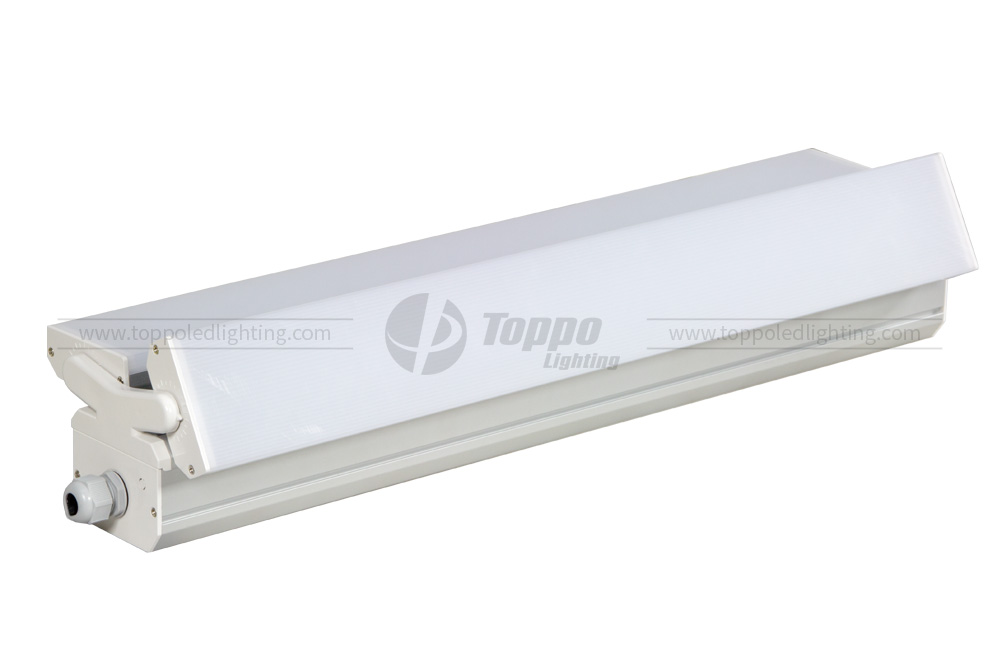

Suspended Installation 5ft 60w LED Twins Batten
The twins unit angle can be adjust max at 60 degree.This design makes the twins batten very smart.It also can be slided out through the clip on the end.This makes the batten easy installation and be widely used in factories,supermarket,public transport stations and so on.
Send Inquiry
  |
 |
|
|
 |
|
 |
 |
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
|

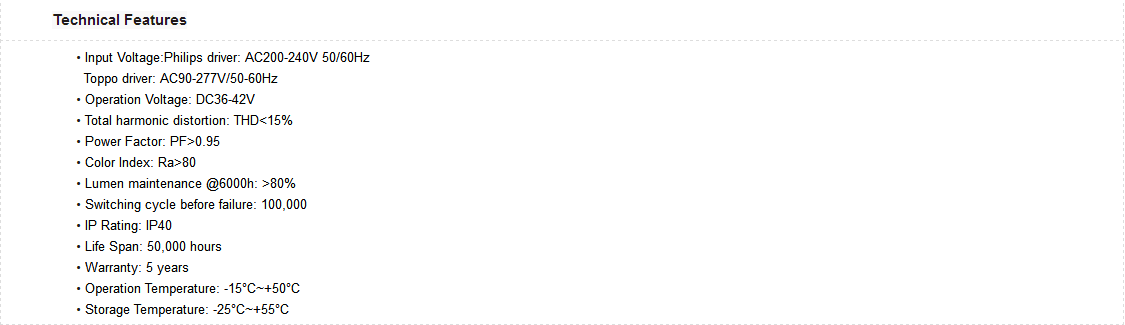

| Item | Symbol | 2ft/60cm/32w | 4ft/120cm/40w | 4ft/120cm/60W | 5ft/150cm/60W | |
| Product Code | / | TP-BTW2D1-32-E0 | TP-BTWS4D1-40-E0 | TP-BTW4D1-60-E0 | TP-BTW5D1-60-E0 | |
| Rated Power | W | 2x16W | 2x20W | 2x30W | 2x30W | |
| LED Typ/Qty | SMD3825 | 2x108 | 2x132 | 2x180 | 2x180 | |
| Luminous Flux | LM | typ.3850-4150 | typ.4800-5200 | typ.7200-7800 | typ.7200-7800 | |
| Luminous Efficacy | LM/W | typ.120-130 | ||||
| Color Index | Ra | Ra>80 | ||||
| Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
| Lumen maintance | % | >80% | ||||
| AC Input Voltage | V | AC100-277V | ||||
| Power Factor | PF | PF>0.95 | ||||
| Flicker-free | / | Yes | ||||
| Switching Cycle before Failure | Times | 100000 | ||||
| Life Span | Hours | 50000 hours | ||||
| Warranty | Years | 5 years | ||||
| Operation Temperature | ℃ | -15℃~+50℃ | ||||
| Storage Temperature | ℃ | -25℃~+55℃ | ||||
