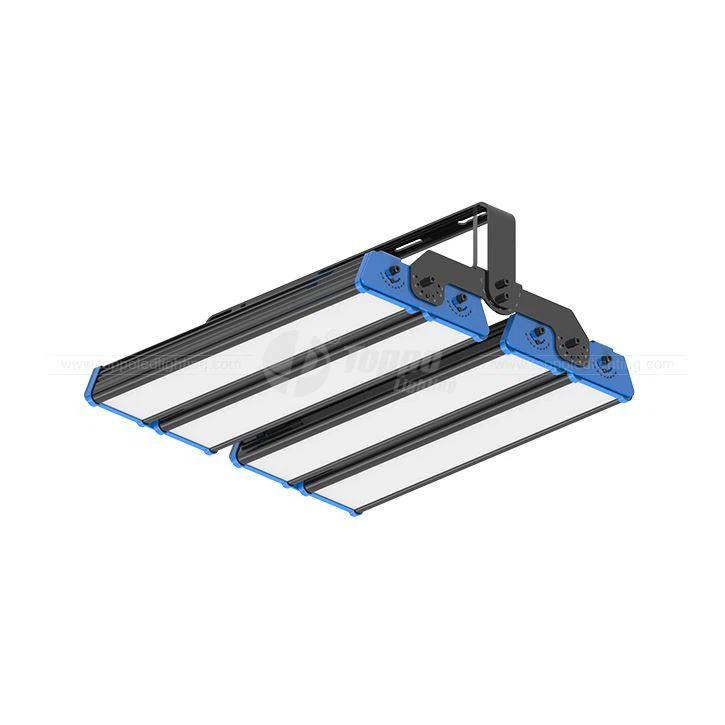

400W Modular Flood Light with Frosted Cover 160lm/w
400W Modular Flood Light with Frosted Cover 160lm/w
|
| Product Features |
> Highly energy efficient - up to 160 lm/w > Advanced cooling-fin structure for excellent heat dissipation > Superior honeycomb-reflector-optic for low glare applications > IP65 and IK10 for all industrial areas of application > Driver and housing separated by spacers > Newest generation of SMD2835 1W LED chips > Double-rail mounting solution for driver and other components > D-Mark tested for the use in paper production, wood processing etc. > No UV or IR and completely mercury free > L80/B10 @ 50.000h > 5 years warranty |
| Options |
> Drivers: Meanwell, Sosen > Controls and Dimming ·Zigbee wireless control ·1-10V Dimming ·Motion sensor ·Emergency ·DALI control ·Daylight sensor > Lumen efficiency: 140Lm/w or 160Lm/w > Installation: Suspended OR Surface mounted |
| Application |
> Factories and warehouses > High rooms and halls > Exhibition- & showrooms |

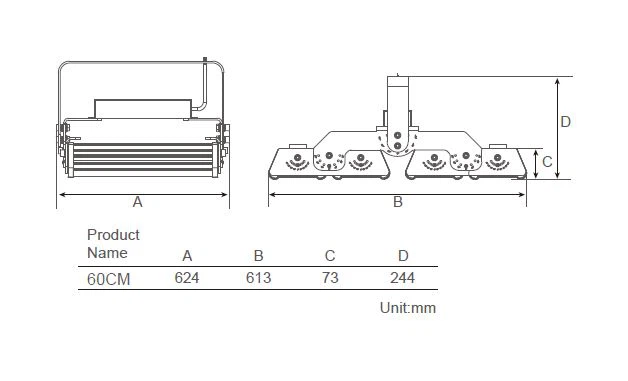

Dimension |
|
Specification
| Product Name | Forsted Modular Flood Light | |||
| Power Rated (W) | 4x50W | 4x50W | 4x100W | 4x100W |
| Product Code | FL01-2AAN1 -MFN5M-001 | FL01-2ADN1 -MFN5M-001 | FL02-4AAN1 -MFN5M-001 | FL02-4ADN1 -MFN5M-001 |
| LED Type | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| Lumen Efficacy (Lm/w) | typ. 140Lm/w | typ. 160Lm/w | typ. 140Lm/w | typ. 160Lm/w |
| Luminous Flux (Lm) | typ. 28000Lm | typ. 32000Lm | typ. 56000Lm | typ. 64000Lm |
| UGR | / | |||
| Color Index CRI(Ra) | Ra>80 | |||
| Color Temperature TC(K) | WW:3000K, NW:4000K, PW:5000K, CW:6000K | |||
| Beam Angle | 120° | |||
| Power Factor (PF) | PF>0.95 | |||
| LED Current (mA) | Constant 1.0~1.6A | |||
| Input Voltage (V) | AC100~277V/50Hz | |||
| Working Voltage (V) | Constant DC36~60V | |||
| Housing Material | Aluminum + PC | |||
| Protection Class (IP) | IP65/IK10 | |||
| Temperature (°C) | Operation:-15°C~+50°C, Storage:-25°C~+55°C | |||
Switching Cycle before Failure | >100,000 times | |||
| Warranty | 5 years | |||
