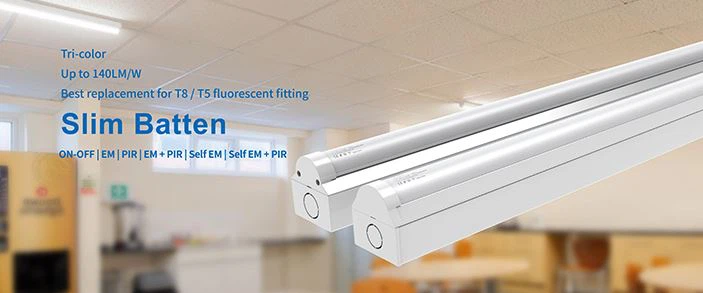

LED T8 Slim Batten Light
Function
 |  |  |
| Standard ON-OFF | PIR Sensor | Emergency |
Features
● Patent design for T8 fluorescent fitting
● High lumen output at 125LM/W
● Multiple Function: ON-OFF / 1-10V / DALI / PIR / EM
● End cable or rear cable entry
● Multiple Link through end hole
● Flicker free & 5 years warranty
Specifications
| Order Code | Product Name | Wattage | Lumen Output | Lumen Efficiency | CRI | CCT | AC Input | Power Factor | Dimension(mm) |
BT02-10PN1- STN1B-001 | 60CM-10W T8 Slim batten | 10W | 1250LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L600 X W55 XH58 |
BT04-17PN1- STN1B-001 | 120CM-17W T8 Slim batten | 17W | 2100LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1200 X W55 XH58 |
BT04-32PN1- STN1B-001 | 120CM-32W T8 Slim batten | 32W | 4000LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1200 X W55 XH58 |
BT05-28PN1- STN1B-001 | 150CM-28W T8 Slim batten | 28W | 3500LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1500 X W55 XH58 |
BT05-56PN1- STN1B-001 | 150CM-56W T8 Slim batten | 56W | 7000LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1500 X W55 XH58 |
BT06-32PN1- STN1B-001 | 180CM-32W T8 Slim batten | 32W | 4000LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1800 X W55 XH58 |
BT06-62PN1- STN1B-001 | 180CM-62W T8 Slim batten | 62W | 7750LM | 125LM/W | Ra>80 | 3000/4000/ 5000/6000K | AC200-240V | PF>0.95 | L1800 X W55 XH58 |
