Wattage Adjustable Version(1-10V Dimming) Tri-proof Light

Name: China Customized Wattage Adjustable Version(1-10V Dimming) Tri-proof Light Manufacturers, Suppliers - Factory Direct Price - TOPPO
Brand: TOPPO
SKU: 60895317

Shenzhen Toppo led Tri-proof lights can be widely used in supermarkets,shopping malls,schools, hotels, airports etc. And Toppo led tri-proof light have on/off function and 1-10V dimming and high quality with TUV-GS/SAA/CE/ROHS approved.

Send Inquiry

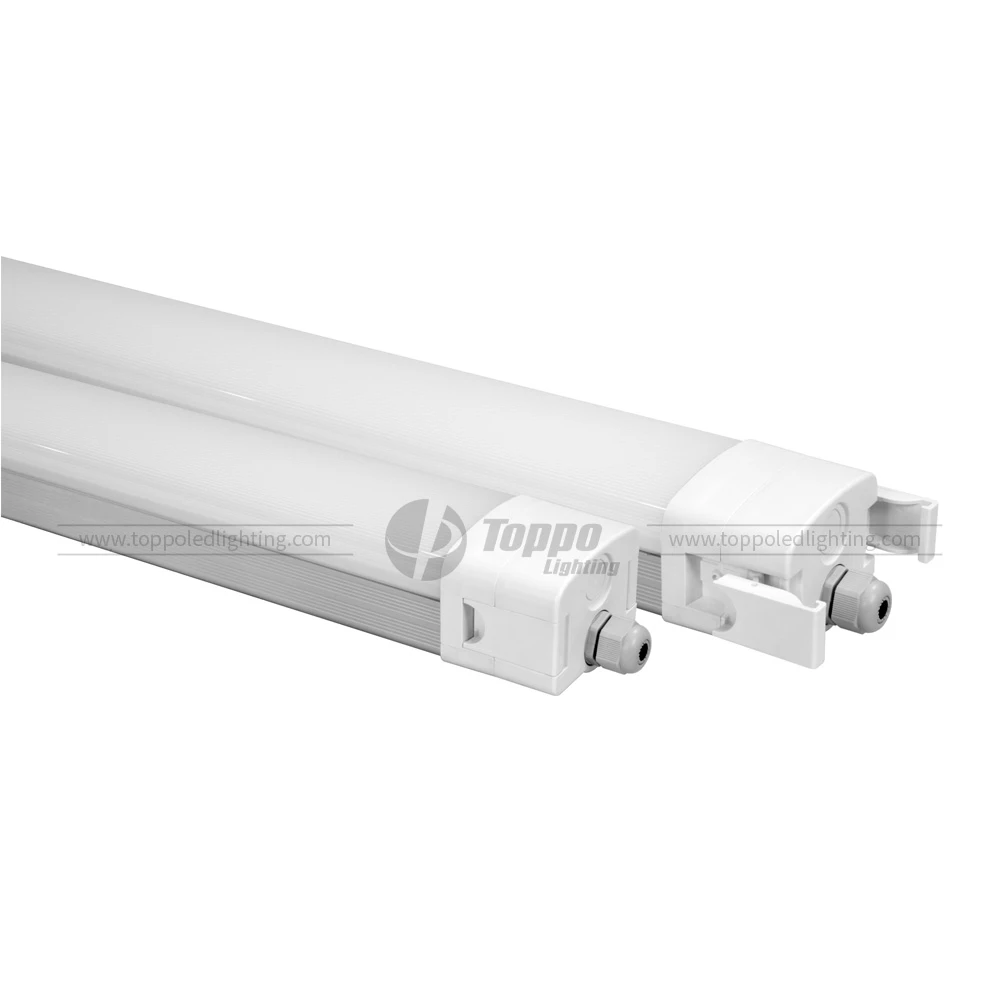

Wattage adjustable Version(1-10V dimming) Tri-proof light

D Version Tri-proof light EU

Standard:100LM/W Premium:125LM/W Deluxe:140LM/W

Product Features

· Owner design clip end cap for easy installation

· 1-10V dimming with flicker free driver

· Compatible Dimmer : Lutron / LEVITON

· Single or Double wiring

· IP 65 /IK10 Approval

· Multiple Link with double wiring

· Patent aluminum case as heatsink

· 5 years warranty

Option

· Single or Double wiring

· Color Index: Ra>80 or Ra>90

· Dimming : 1-10V or ON-OFF

· Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W

Application

· Replacement for fluorescent NCF

· Warehouses , Factories, Car parks , Sports facilities

· Sports facilities, Outdoor & Indoor Locations

· etc

Wattage adjustable Version(1-10V dimming) Tri-proof light


Tri-proof : 60cm&120cm
Item	Symbol	L=60cm/2ft			L=120cm/4ft
		Standard	Premium	Deluxe	Standard	Premium	Deluxe
Rated Power	W	22W			40W / 60W
LED Type/Qty	SMD2835	143pcs			234pcs
Lumen Efficacy	LM/W	typ.100	typ.125	typ.140	typ.100	typ.125	typ.140
Luminous Flux	LM	typ.2200	typ.2750	typ.3050	typ.4000/6000	typ.5000/7500	typ.5600/8400
LED Current	mA	Constant 50mA
Color Index	CRI(Ra)	Ra>80, R9>0
Color Temperature	TC(k)	Tri-color : 3000/5000k Mixed : 4000k
Beam Angle	Degree	120 degree
Dimming Function	/	ON-OFF/ 1-10V dimming
Power Factor	PF	PF>0.95
Input Voltage	V	AC200-240V / 50HZ
Housing Material	/	Alumium +PC
Starting Time	S	<0.55
Protection Class	IP	IP65/IK10
Lifespan	h	50,000 hours
Guarantee	/	5 years
Tri-proof : 150cm&240cm
Item	Symbol	L=150cm/5ft			L=240cm / 8ft
		Standard	Premium	Deluxe	Standard	Premium	Deluxe
Rated Power	W	60W			100W
LED Type/Qty	SMD2835	325pcs			520pcs
Lumen Efficacy	LM/W	typ.100	typ.125	typ.140	typ.100	typ.125	typ.140
Luminous Flux	LM	typ.6000	typ.7500	typ.8400	typ.10000	typ.12500	typ.14000
LED Current	mA	Constant 50mA
Color Index	CRI(Ra)	Ra>80, R9>0
Color Temperature	TC(k)	Tri-color : 3000/5000k Mixed : 4000k
Beam Angle	Degree	120 degree
Dimming Function	/	ON-OFF/ 1-10V dimming
Power Factor	PF	PF>0.95
Input Voltage	V	AC200-240V / 50HZ
Housing Material	/	Alumium +PC
Starting Time	S	<0.55
Protection Class	IP	IP65/IK10
Lifespan	h	50,000 hours
Guarantee	/	5 years

Wattage adjustable Version(1-10V dimming) Tri-proof light

Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.

Wattage adjustable Version(1-10V dimming) Tri-proof light

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
