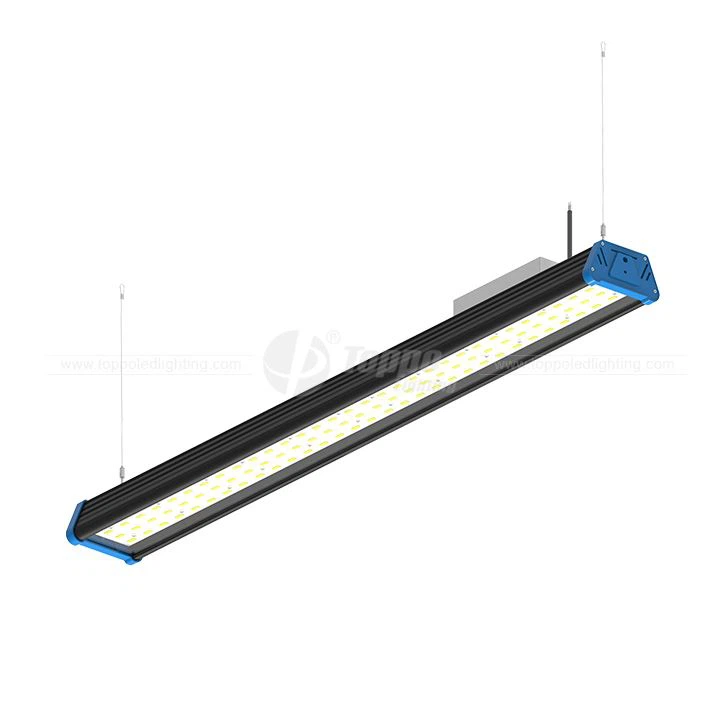

T-line Linear High Bay: AC100-277V High Efficiency To 180lm/w Outdoor Suspending LED Light

> Highly energy efficient - up to 180 lm/w

> Advanced cooling-fin structure for excellent heat dissipation

> IP65 and IK10 for all industrial areas of application

> Driver and housing separated by spacers

> Newest generation of SMD2835 1W LED chips

> Double-rail mounting solution for driver and other components

> D-Mark tested for the use in paper production, wood processing etc.

> No UV or IR and completely mercury free

> L80/B10 @ 50.000h

> 5 years warranty

> Drivers: Meanwell, Sosen, Shanpin

> Beam angle: 120°

> Controls and Dimming

·Zigbee wireless control ·1-10V Dimming

·Motion sensor ·Emergency

·DALI control ·Daylight sensor

> Lumen efficiency:

160Lm/w or 180Lm/w

> Installation: Suspended OR Surface mounted

> Factories and warehouses

> High rooms and halls

> Exhibition- & showrooms

           Dimension

            Beam Angle

LED Type/

Qty

Luminous

Flux

Color

Temperature

Dimming

Function
