Toppo IP65 1-10V dimming LED Tri Proof Light

Key Features

• IP65 water proof /dust proof /IK10 • Led driver on tray for easy replacement • Philips xitanium driver for 5 years warranty

Construction Features

• Stainless steel clip as standard clit • IP65 connector for multiple link • Single or double side wiring

Application

• Replacement for fluorescent NCF fittings • Warehouses & factories • Car parks & sports facilities • Kitchens & food storage

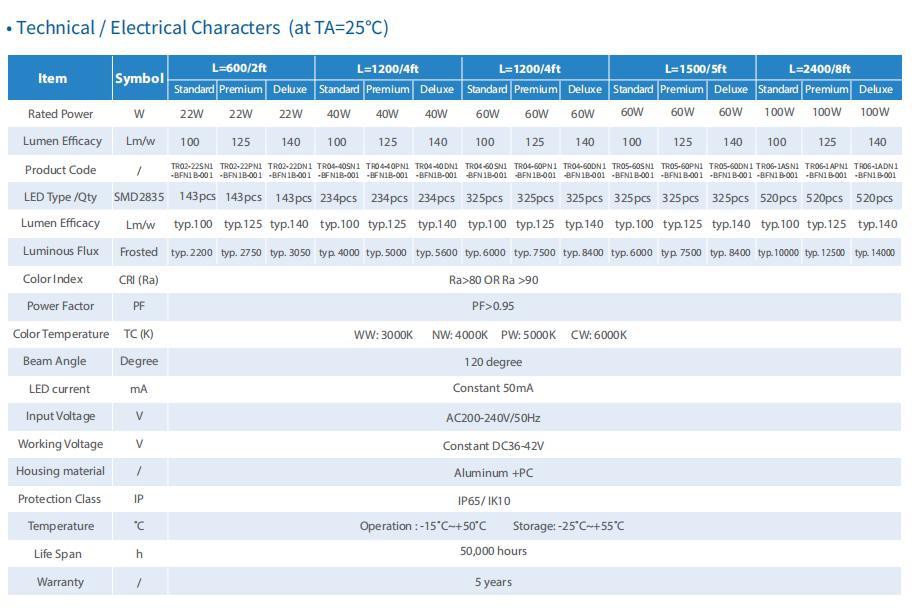

Technical Features

• Input Voltage: LEDdriver: AC200-240V 50/60Hz • Operation Voltage: DC36-42V • Total harmonic distortion: THD<15% • Power Factor: PF>0.95 • Color Index: Ra>80 • Lumen maintenance @6000h: >80% • Switching cycle before failure: 100,000 • IP Rating: IP65 • Life Span: 50,000 hours • Warranty: 5 years • Operation Temperature: -15°C~+50°C • Storage Temperature: -25°C~+55°C•

Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement‎ manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement‎ at competitive price with us. We can also offer you customized service.

FAQ:

1.what’s the meaning of “Beam Angle “?

The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

2.Are you the factory or trading company ?

Yes sure, we have own factory. We are a worldwide LED manufacturer, which specialize in developing, producing and selling for LED lights.

3.Where’s our company ?

TOPPO Lighting Company

The address is :D building of 6th Huanping Road,GaoQiao Zone of PingDi Town,LongGang district,Shenzhen 518116,P.R.C

Welcome to visit our company.

4.Do you know “dali “?

Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

5.What’s the fire rating categories ?

VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
