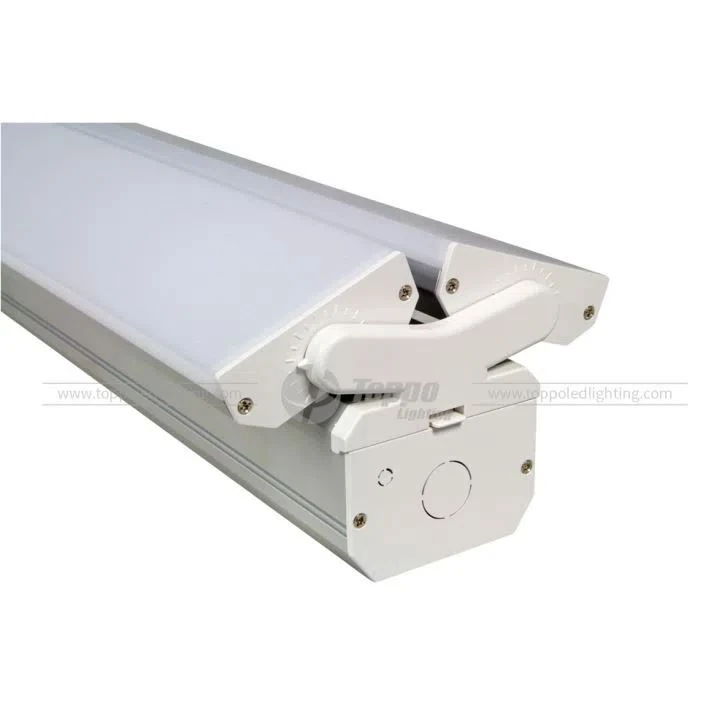

Suspension Installation LED 40w 1200mm Twins Batten
 |
 |
| Key Features |
0-60 degree rotatable angle Sliding structure for easy installation Philips Xitaninum driver for 5 years wrranty |
| Construction Features |
Turnable and sliding structure design White or silver paint finish 1500px &3000px basic unit for infinite connection Housing material: Aluminum + PC Surface monuting / suspension installation |
| Application |
Replace fluorescent batten Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc |
| Technical Features |
Input Voltage:Philips driver: AC200-240V 50/60Hz Toppo driver: AC90-277V/50-60Hz Operation Voltage: DC36-42V Total harmonic distortion: THD<15% Power Factor: PF>0.95 Color Index: Ra>80 Lumen maintenance @6000h: >80% Switching cycle before failure: 100,000 IP Rating: IP40 Life Span: 50,000 hours Warranty: 5 years Operation Temperature: -15°C~+50°C Storage Temperature: -25°C~+55°C |
 |
|
 |
 |
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
1.What’s Power factor ?
The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
2.What’s Smart Lighting ?
Automated lighting control using sensors and /or scheduling switches.
3.What’s Watt ?
The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.
4.How to explain “ZigBee“ ?
A low -power ,low date rate, local area wireless network; ideal for lighting control.
5.How to explain “lumen output “ ?
The total lumens emitted of a light source, system, or solution.
20.How to explain “luminous Efficacy“ ?
A measure of how well a light source products visible light expressed as lumens /Watt.
| c | Symbol | 2ft/60cm/32w | 4ft/120cm/40w | 4ft/120cm/60W | 5ft/150cm/60W | |
| Product Code | / | TP-BTW2D1-32-E0 | TP-BTWS4D1-40-E0 | TP-BTW4D1-60-E0 | TP-BTW5D1-60-E0 | |
| Rated Power | W | 2x16W | 2x20W | 2x30W | 2x30W | |
| LED Typ/Qty | SMD3825 | 2x108 | 2x132 | 2x180 | 2x180 | |
| Luminous Flux | LM | typ.3850-4150 | typ.4800-5200 | typ.7200-7800 | typ.7200-7800 | |
| Luminous Efficacy | LM/W | typ.120-130 | ||||
| Color Index | Ra | Ra>80 | ||||
| Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
| Lumen maintance | % | >80% | ||||
| AC Input Voltage | V | AC100-277V | ||||
| Power Factor | PF | PF>0.95 | ||||
| Flicker-free | / | Yes | ||||
| Switching Cycle before Failure | Times | 100000 | ||||
| Life Span | Hours | 50000 hours | ||||
| Warranty | Years | 5 years | ||||
| Operation Temperature | ℃ | -15℃~+50℃ | ||||
| Storage Temperature | ℃ | -25℃~+55℃ | ||||
