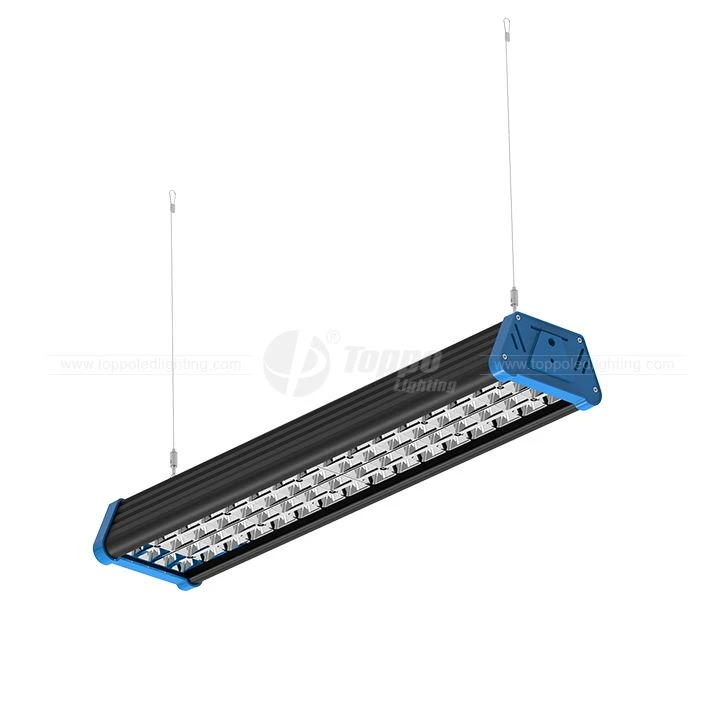

Superior Honeycomb-reflector Asymmetric Honeycomb T-line Linear Highbay Light
| Features |
|
● Highly energy efficient - up to 160 lm/w. ● Advanced cooling-fin structure for excellent heat dissipation. ● Superior honeycomb-reflector-optic for low glare applications. ● IP65 and IK10 for all industrial areas of application. ● Double-rail mounting solution for driver and other components ● L80/B10 @ 50.000h ● 5 years warranty |
| Options |
|
● Beam angle: 60°x110° or 90°x110° ● Controls and Dimming: Zigbee wireless control 1-10V Dimming Motion sensor Emergency DALI control Daylight sensor ● Lumen efficiency: 140Lm/w or 160Lm/w ● Installation: Suspended OR Surface mounted |

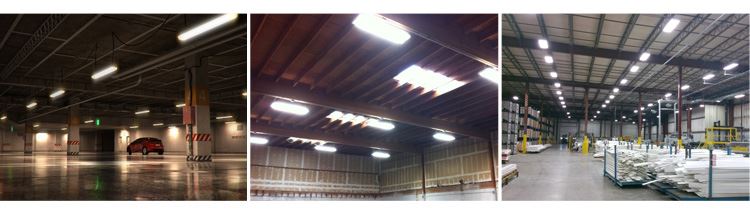

| Applications |
|
● Manufacturing area ● Factories&Warehouses ● Exhibitions&Showrooms ● Etc. |
|
Dimension
|
|
Beam Angle
|
Advance: 140LM/W
| Order Code | Product Name | Length |
Rated Power |
Lumen Output |
Lumen Efficiency |
Color Index |
Beam Angle |
AC Input |
Power Factor |
Flicker Free |
|
HB02-1AAN1- TSN5M-001 |
Advance 60CM/100W Asymmetric Honeycomb T-Line Linear High Bay |
60CM | 100W | 14000LM | 140LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB03-1CAN1- TSN5M-001 |
Advance 90CM/120W Asymmetric Honeycomb T-Line Linear High Bay |
90CM | 120W | 16800LM | 140LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB03-1BAN1- TSN5M-001 |
Advance 90CM/150W Asymmetric Honeycomb T-Line Linear High Bay |
90CM | 150W | 21000LM | 140LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB04-2AAN1- TSN5M-001 |
Advance 120CM/200W Asymmetric Honeycomb T-Line Linear High Bay |
120CM | 200W | 28000LM | 140LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
Deluxe: 160LM/W
| Order Code | Product Name | Length |
Rated Power |
Lumen Output |
Lumen Efficiency |
Color Index |
Beam Angle |
AC Input |
Power Factor |
Flicker Free |
|
HB02-1ADN1- TSN5M-001 |
Deluxe 60CM/100W Asymmetric Honeycomb T-Line Linear High Bay |
60CM | 100W | 16000LM | 160LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB03-1CDN1- TSN5M-001 |
Deluxe 90CM/120W Asymmetric Honeycomb T-Line Linear High Bay |
90CM | 120W | 19200LM | 160LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB03-1BDN1- TSN5M-001 |
Deluxe 90CM/150W Asymmetric Honeycomb T-Line Linear High Bay |
90CM | 150W | 24000LM | 160LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
|
HB04-2ADN1- TSN5M-001 |
Deluxe 120CM/200W Asymmetric Honeycomb T-Line Linear High Bay |
120CM | 200W | 32000LM | 160LM/W | Ra>80 |
60°x110° 90°x110° |
AC 100-277V |
>0.95 | Y |
