Super Thin Hign Lumen Round LED Panel
Super Thin Hign lumen Round LED Panel
Key Features
• Aluminum Frame as heatsink

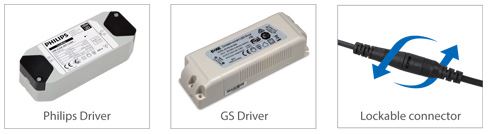

• Philips certa driver for high quality
Construction Features
• Extra thin aluminum frame
• Housing material: Aluminum + PMMA
• Recessed installation
Application
• Retail, offices, schools, hospitals
• Corridors and stairwells
• Suspended ceiling lighting for offices
Technical Features
• Input Voltage:
AC90-277V 50/60HZ OR AC200-240V 50/60HZ
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 50,000
• IP Rating: IP20
• Life Span: 30,000 hours
• Warranty: 3 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
Product Name | Rated Power | Input Voltage | LED Type | LED Qty | Luminous Flux(LM) | Lumen Efficacy | CRI | Power Factor |
R120 / 6W | 6W | AC200-240V | SMD2835 | 24 | 380 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.9 |
R145 / 9W | 9W | AC200-240V | SMD2835 | 48 | 650 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.9 |
R180 / 12W | 12W | AC200-240V | SMD2835 | 60 | 900 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.95 |
R200 / 15W | 15W | AC200-240V | SMD2835 | 72 | 1150 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.95 |
R240 / 18W | 18W | AC200-240V | SMD2835 | 96 | 1400 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.95 |
R300 / 22W | 22W | AC200-240V | SMD2835 | 120 | 1700 | 75-80 | Ra>80 | Philips/PF>0.6 GS/PF>0.95 |
Options
> Dimming: STD ON-OFF / 1-10V dimmable
> Emergency: 3 hours integrated emergency
> Warm white: WW/3000K
> Neutral white: NW/4000K
> Pure white: PW/5000K
> Cool white: CW/6000K
Toppo Lighting is one of the leading super thin hign lumen round led panel manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest super thin hign lumen round led panel at competitive price with us. We can also offer you customized service.
