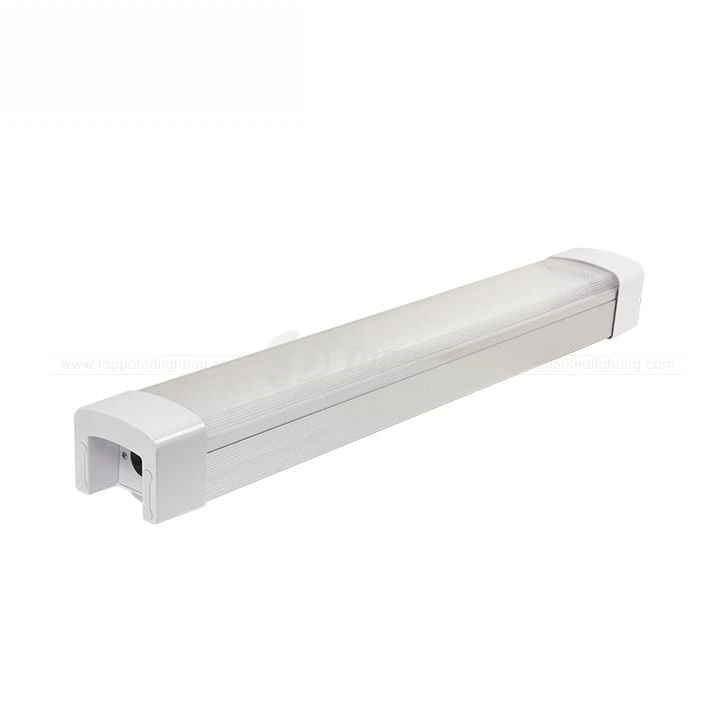

CE Rosh Waterproof IP65 Outdoor LED Tri-proof Batten
B Version Tri-proof light Standard:100LM/W Premium:125LM/W Deluxe:140LM/W
|
 |
| Product Features |
· Single or Double wiring · IP 65 /IK10 Approval · Multiple Link with double wiring · Patent aluminum case as heatsink · 5 years warranty |
| Option |
· Wiring: Single or Double · CRI : Ra>80 · Function : ON-OFF / 1-10V dimming · Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W |
| Application |
· Replacement for fluorescent NCF · Warehouses, Factories, Car parks, Sports facilities · Sports facilities, Outdoor & Indoor Locations · etc |
|
 | |||||||
Tri-proof : 60cm&120cm | |||||||
Item | Symbol | L=60cm/2ft | L=120cm/4ft | ||||
Standard | Premium | Deluxe | Standard | Premium | Deluxe | ||
Rated Power | W | 22W | 40W / 60W | ||||
LED Type/Qty | SMD2835 | 143pcs | 234pcs | ||||
Lumen Efficacy | LM/W | typ.100 | typ.125 | typ.140 | typ.100 | typ.125 | typ.140 |
Luminous Flux | LM | typ.2200 | typ.2750 | typ.3050 | typ.4000/6000 | typ.5000/7500 | typ.5600/8400 |
LED Current | mA | Constant 50mA | |||||
Color Index | CRI(Ra) | Ra>80, R9>0 | |||||
Color Temperature | TC(k) | Tri-color : 3000/5000k Mixed : 4000k | |||||
Beam Angle | Degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming | |||||
Power Factor | PF | PF>0.95 | |||||
Input Voltage | V | AC200-240V / 50HZ | |||||
Housing Material | / | Alumium +PC | |||||
Starting Time | S | <0.55 | |||||
Protection Class | IP | IP65/IK10 | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||
Tri-proof : 150cm&240cm | |||||||
Item | Symbol | L=150cm/5ft | L=240cm / 8ft | ||||
Standard | Premium | Deluxe | Standard | Premium | Deluxe | ||
Rated Power | W | 60W | 100W | ||||
LED Type/Qty | SMD2835 | 325pcs | 520pcs | ||||
Lumen Efficacy | LM/W | typ.100 | typ.125 | typ.140 | typ.100 | typ.125 | typ.140 |
Luminous Flux | LM | typ.6000 | typ.7500 | typ.8400 | typ.10000 | typ.12500 | typ.14000 |
LED Current | mA | Constant 50mA | |||||
Color Index | CRI(Ra) | Ra>80, R9>0 | |||||
Color Temperature | TC(k) | Tri-color : 3000/5000k Mixed : 4000k | |||||
Beam Angle | Degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming | |||||
Power Factor | PF | PF>0.95 | |||||
Input Voltage | V | AC200-240V / 50HZ | |||||
Housing Material | / | Alumium +PC | |||||
Starting Time | S | <0.55 | |||||
Protection Class | IP | IP65/IK10 | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||
|
Toppo Lighting company limited is one of the professional manufacturers which specialize in developing, producing and selling for Led Lighting. As a worldwide LED manufacturer, We have various series of LED lighting which include: LED Panel Light, LED linear light, LED tri-proof light, LED batten light, Led trunk linear, LED Tube Light, LED Down Light, LED Ceiling Light, LED troffer, etc. |
In order to achieve high quality and capacities, we use the Auto-SMT and Auto production assembly line to meet the high-quality requirements. By these advanced applications. Our monthly production capacity increased, LED panel exceeds 60,000 pcs, LED Linear and batten exceed 80,00pcs. The other products exceed 30,000-50,000 pcs for each series.
We always insist on our value system “ Morality as the basic, Quality as the life , Customer as the center, Innovation as the source, Result as the guide” to make the growing of our team. “Our service your choice ” as the marketing concept to make the best-led lighting to emblaze your happy modern life.
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer of led commercial and industrial lighting, and we have built up our company since 2008.
2. Where is your factory located?
Our factory address is D building of 6th Huangpin Road, Gaoqiao Zone, PingDi Town, Longgang District, Shenzhen, Guangdong Province, China.
3. How can I get to your factory?
Our factory 1.5 hours from Shenzhen Baoan Airport, we can pick you up at the airport or pick you up anywhere in Shenzhen.
4. If I will need to stay in your place for a few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
