Round LED Panel Light 18w

·  Slim Design for easy installation

·  Best replacement on CFL/PLL

·  Round LED Panel Light 18w is up to 60% energy savings

·  IP Rating : IP20

·  Easy Recessed installation

·  5 years warranty

·  Dimming:STD ON-OFF / Triac Dimming

·  Micro-wave sensor: 0% / 30% /100%

·  Intallation: Recessed / Suspension

·  Package:Standard or color box

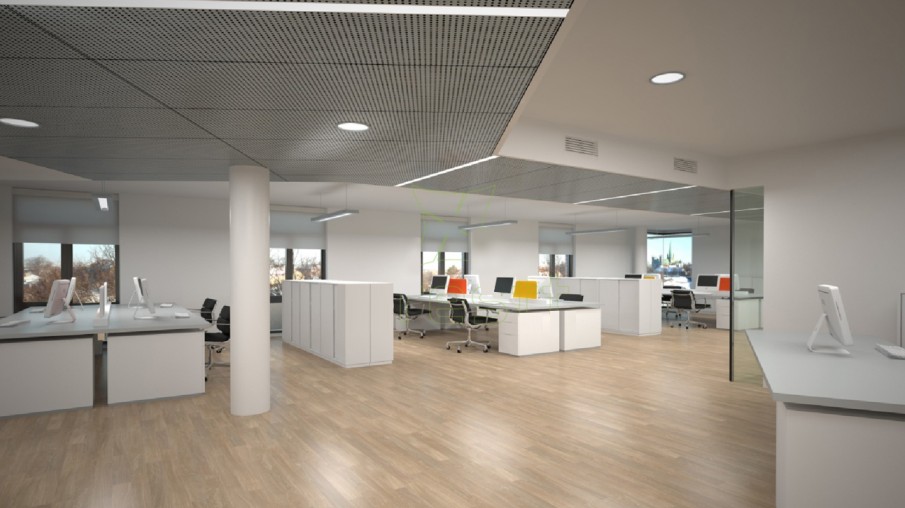

· Commerical Lighting: Shoping mall, Super-market,Hotel,  Office

· Public Lighting:  Path way , Stations , School ,Libary  etc

Dimension and Specification

· Product Name: R120, R145, R170, R200, R225, R240, R300

· Technical/Electrical Characters (at TA=25℃)

· Rated Power: R120/8w, R145/10w, R170/12w,  R190/18w, R240/18w,  R330/22w

· Product Code

  ON-OFF: DLS90K-04N1-EF1, DLS12K-08N1-EF1,DLS15K-10N1-EF1, DLS17K-12N1-EF1, DLS19K-18N1-EF1, DLS24K-18N1-EF1, DLS30K-22N1-EF1

 Triac: DLS90K-04N1-EF4, DLS12K-08N1-EF4, DLS15K-10N1-EF4, DLS17K-12N1-EF4, DLS19K-18N1-EF4, DLS24K-18N1-EF4, DLS30K-22N1-EF4

 MS: DLS90K-04N1-EMS, DLS12K-08N1-EMS, DLS15K-10N1-EMS, DLS17K-12N1-EMS, DLS19K-18N1-EMS, DLS24K-18N1-EMS, DLS30K-22N1-EMS

· LED Type/Qty SMD2835 :20, 36, 48, 60, 72, 96, 120

· Lumen Efficacy

  Lm/w: typ.75, typ.80

· Luminous Flux

  LM: typ.300, typ.600, typ.900, typ.1350, typ.1450, typ.1750

· Color Index

  CRI(Ra): Ra>80

· Color Temperature

  TC(K): WW:3000K, NW:4000K, PW:5000K, CW:6000K

· Beam Angle

  Degree: 120 degree

· Dimming Function

  ON-OFF/ TRAIC Dimming /Micro-wave sensor

· Power Factor

  PF>0.95

· LED current

  mA: Constant 45mA

· Input Voltage

  V: AC200~240V/50Hz

· Working Voltage

  V: Constant DC36~42V

· Life Span

  50,000 hours

· Warranty

  5 years

Round LED Panel Light 18w is one of the leading alternatives to traditional tube lamps and LED fluorescent lamps. There are manufacturing plants and suppliers in China. We have competitive prices. In addition, we can also provide you with customized services. Our company adheres to the business strategy of survival by quality, development by efficiency, and reputation by service. Constantly develop new products, expand business areas, and promote enterprise development.
