PIR Sensor or 1-10v Dimmable Function 120lm/w 1500mm 56w LED Slim Batten
 |
 |
| Key Features |
| Slim aluminum case thinner than normal batten The popping clip make the top head out for installation Higher Lumen output than the fluorescent batten Infinite connection |
| Construction Features |
| Smart popping clip for installation Similar normal fluorescent batten with higher Lumen Easy installation on top head cover |
| Application |
| Replace fluorescent batten Industrial Lighting: Factory, Warehouse, etc Commercial Lighting: Office, Supermarket, etc. Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc |
 |
|
|
 |
|
|
| Options |
> Case finish: White or silver > Lighting Cover: Clear or Frosted > Warm white: WW/3000K > Neutral white: NW/4000K > Pure white: PW/5000K > Cool white: CW/6000K |
| Technical Features |
Input Voltage: AC90-277V 50/60Hz Operation Voltage: DC36-42V Total harmonic distortion: THD<10% Power Factor: PF>0.95 Color Index: Ra>80 Lumen maintenance @6000h: >80% Switching cycle before failure: 100,000 IP Rating: IP20 Life Span: 50,000 hours Warranty: 5 years Operation Temperature: -15°C~+50°C Storage Temperature: -25°C~+55°C |
 |
Hot Tags: pir sensor or 1-10v dimmable function 120lm/w 1500mm 56w LED slim batten, China, manufacturers, suppliers, factory, customized, price, newest, made in China
You Might Also Like

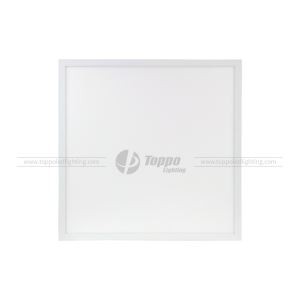

UGR Less Than 19 Ceiling Mounted 30W LED Slim Panel
5 Years Warranty Multiple Linkable LED Linear Light
Gentle Linear Ugr<19 Installation : Surface Mounting...
Surface Mounting or Suspension 1-10v Dimming PIR Sen...

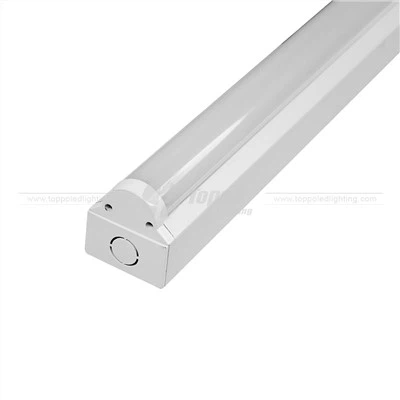

120lm/w Slim Batten Popular with Tri-color PIR Sensor
