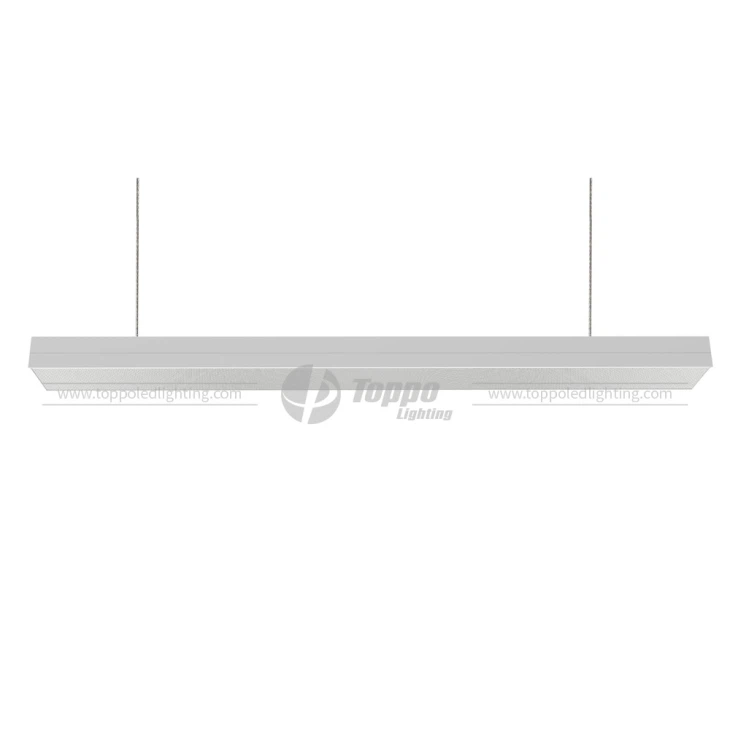

PET Low Glare LED Batten Light 4ft 5ft
120mm Gentle Linear Lighting EU
|
 |
| Product Features |
· Patent low glare linear · End or rear cable entry · Multiple link without light gap · 5 years warranty |
| Options |
· Dimming:ON-OFF / 1-10V dimming · Installation : Surface mounting OR suspension |
| Application |
· Replacement for conventional led shop light · Warehouses,Factories, Car Parks,Supermarkets · Stations,Office · etc |
|
 |
 | |||||||
Gentle Kingston batten | |||||||
Item | Symbol | L=120cm/4ft | L=150cm/5ft | L=180cm/6ft | |||
Rated Power | W | 17W | 32W | 22W | 40W | 27W | 50W |
LED Type/Qty | SMD2835 | 208x2 | 260x2 | 260x2 | 312x2 | 312x2 | 364x2 |
Lumen Efficacy | LM / W | typ. 110 | |||||
Luminous Flux | LM | 1950 | 3500 | 2400 | 4400 | 2950 | 5500 |
UGR | Data | UGR<19 | |||||
Condition | Ceiling / 0.7, Wall / 0.5, Working Plan / 0.2 | ||||||
Color Index | CRI(Ra) | Ra>80 | |||||
Color Temperature | TC(k) | Tri-color : 3000/5000k , Mixed : 4000k | |||||
Beam Angle | degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming/ DALI | |||||
Power Factor | PF | PF>0.95 | |||||
Lumen Current | mA | Constant 45mA | |||||
Input Voltage | V | AC200-240V / AC100-277V / 50 Hz | |||||
Housing Material | / | Aluminum + Pc | |||||
Starting Time | S | <0.55 | |||||
Protection Class | IP | IP20 | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||
|
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
QUALITY & ENVIROMENTAL MANAGEMENT : NOA ISO9001:2015 ISO140012015
To insure the high level company daily management and service. We ensure our processes are compliant
with and certificated by NOA to ISO9001/ISO14001.
This action makes a quality team who can offer the best service to all valued customers.
PRODUCT CERTIFICATIONS
Toppo aim to ensure all products are certificated by UL / CUL / DLC / FCC/TUV/VDE/CE.
In order to ensure the quality, Toppo build the owner laboratory for the daily quality controling.
All these actions make Toppo become a reliable manfacturer on the LED Lighting.
