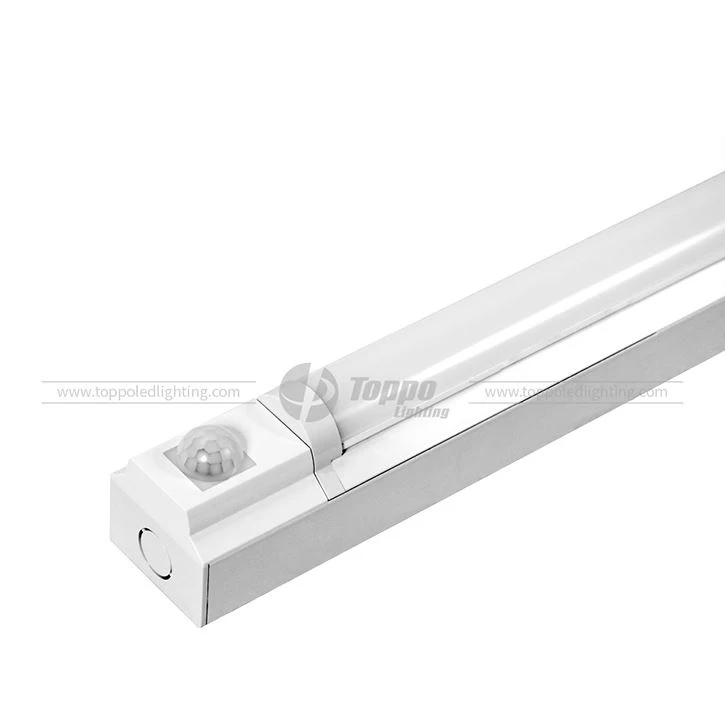

New Design CE TUV-gs Approved 56W 5ft 1-10V Dimmable Slim LED Linkable Batten Light

Key Features

? Slim aluminum case thinner than normal batten ? The popping clip make the top head out for installation ? Higher Lumen output than the fluorescent batten ? Infinite connection

Construction Features

? Smart popping clip for installation ? Similar normal fluorescent batten with higher Lumen ? Easy installation on top head cover

Application

? Replace fluorescent batten ? Industrial Lighting: Factory, Warehouse, etc ? Commercial Lighting: Office, Supermarket, etc. ? Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc

Options

> Case finish: White or silver > Lighting Cover: Clear or Frosted > Warm white: WW/3000K > Neutral white: NW/4000K > Pure white: PW/5000K > Cool white: CW/6000K

Technical Features

? Input Voltage: AC90-277V 50/60Hz ? Operation Voltage: DC36-42V ? Total harmonic distortion: THD<10% ? Power Factor: PF>0.95 ? Color Index: Ra>80 ? Lumen maintenance @6000h: >80% ? Switching cycle before failure: 100,000 ? IP Rating: IP20 ? Life Span: 50,000 hours ? Warranty: 5 years ? Operation Temperature: -15°C~+50°C ? Storage Temperature: -25°C~+55°C

FAQ:

1.What’s the fire rating categories ?

VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.

2.What’s your main product line is made ?

We mainly produce LED indoor lights (LED Panel light, led Tri-proof light, LED Batten light, LED tube,LED Ceiling light, LED Down light, LED Round Panel Light, LED 2D ceiling Light,LED Wall Pack )
