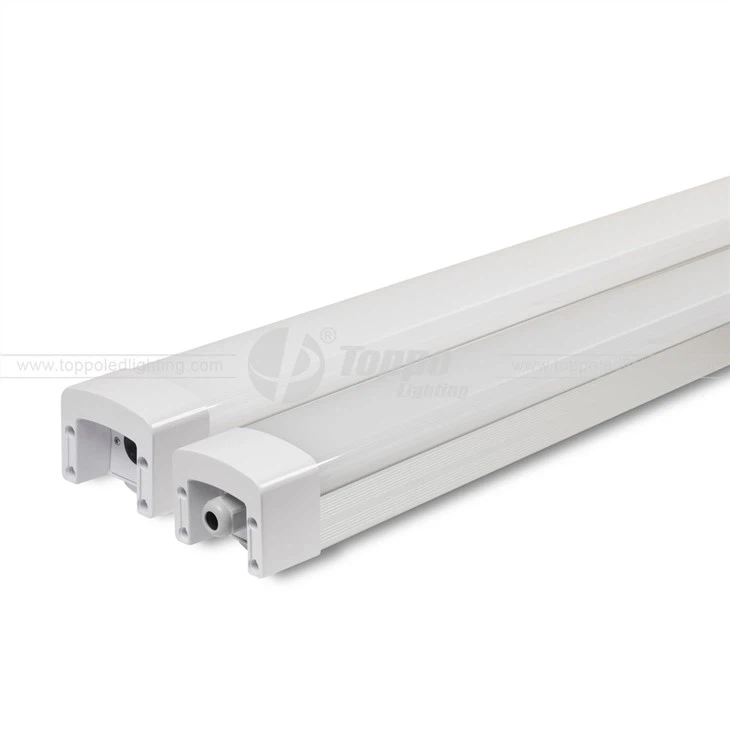

Micro-wave Sensor LED Tri-proof Light 120 Degree Beaming Angle
![]() |
| Key Features |
1.IP65 water proof /dust proof /explosion proof /IK8 |
| Construction Features |
| 1. Stainless steel clip as standard clit 2.IP65 connector for multiple link 3.2ft /4ft /5ft/8ft 22w /40w /60w /100w |
| Application |
1. Replacement for fluorescent NCF fittings |
| Technical Features |
![]() |
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. 1.Could we can do OEM ? We offer OEM services. We can print your own logo on product and packaging and customize packaging box. 2.Are you the factory or trading company ? Yes sure, we have own factory. We are a worldwide LED manufacturer, which specialize in developing, producing and selling for LED lights. 3.Where’s our company ? TOPPO Lighting Company The address is :D building of 6th Huanping Road,GaoQiao Zone of PingDi Town,LongGang district,Shenzhen 518116,P.R.C Welcome to visit our company. 4.Warranty ? 3-5 years from the manufacturing date. |
| Item | Symbol | 2ft/22w | 4ft/40w | 4ft/60W | 5ft/60W | 5ft/100W |
| Product Code | / | TRB2D1-22-E1 | TRB4D1-40-E1 | TRB4D1-60-E1 | TRB5D1-60-E1 | TRB5D1-100-E1 |
| Rated Power | W | 22 | 40 | 60 | 60 | 100 |
| LED Typ/Qty | SMD2835 | 143 | 234 | 325 | 325 | 520 |
| Total Circuit Power | W | 22±1 | 40±1 | 60±1 | 60±1 | 100±1 |
| Luminous Flux | lm | typ.3050 | typ.5600 | typ.8400 | typ.8400 | typ.14000 |
| Luminous Efficacy | lm/w | typ.140 | typ.140 | typ.140 | typ.140 | typ.140 |
| Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
| Color Index | Ra | Ra>80 | ||||
| Beam Angle | Degree | 120 | ||||
| IP Rating | / | 120 | ||||
| AC Input Voltage | V | AC90-277V/50-60Hz | ||||
| Lumen maintance | Hours | >80% | ||||
| Power Factor | PF | PF>0.95 | ||||
| Switching Cycle before Failure | Times | 100000 | ||||
| Protection class | / | IP65/IK10 | ||||
| Life Span | Hours | 50000 hours | ||||
| Warranty | Years | 5 years | ||||
| Operation Temperature | ℃ | -15℃~+50℃ | ||||
| Storage Temperature | ℃ | -25℃~+55℃ | ||||
Hot Tags: micro-wave sensor LED tri-proof light 120 degree beaming angle, China, manufacturers, suppliers, factory, customized, price, newest, made in China
