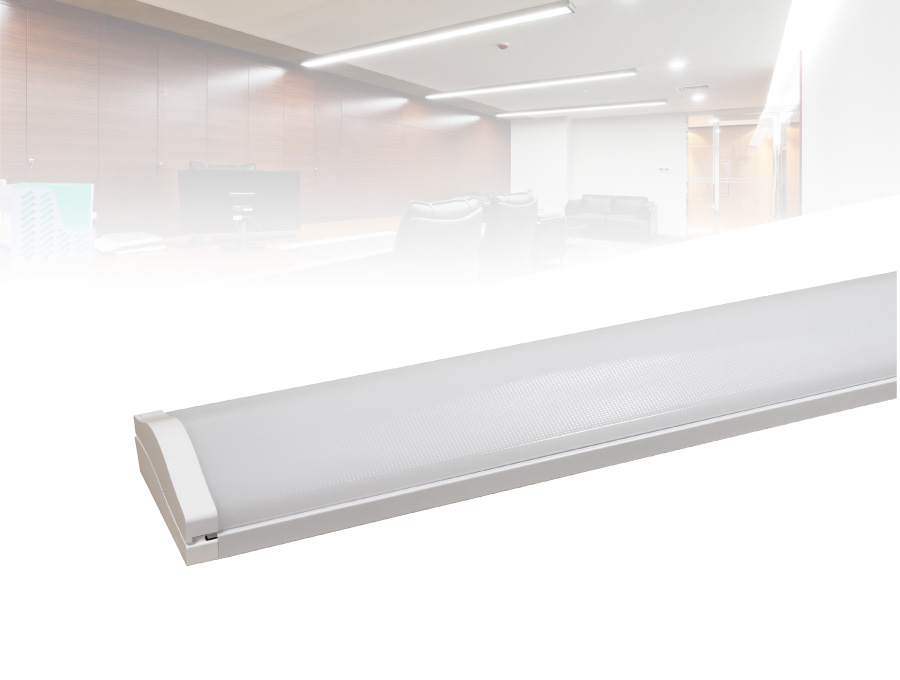

Linear Lighting Fixtures
Product Introduction
Linear Lighting Fixtures is applied to the office field, high-end commercial space, home space, industrial lighting and other environments to create different light and shadow effects.
It has both the function of lighting and the function of visual art. The size, light color, installation method and control method of the product are all changing according to each individual space.
Product Features
Linear Lighting Fixtures can be freely customized according to the specific application scope and the length according to the actual installation requirements;
The built-in light bar light source can also be changed in power and color temperature according to specific usage scenarios. It has good heat dissipation and is not easy to change color.
The use of integrated thickened aluminum strips makes the air convection and dissipate heat, which is helped and used for a long time. Reflective design makes the light uniform, good condensing, no dark areas, no flashes, and excellent illumination.

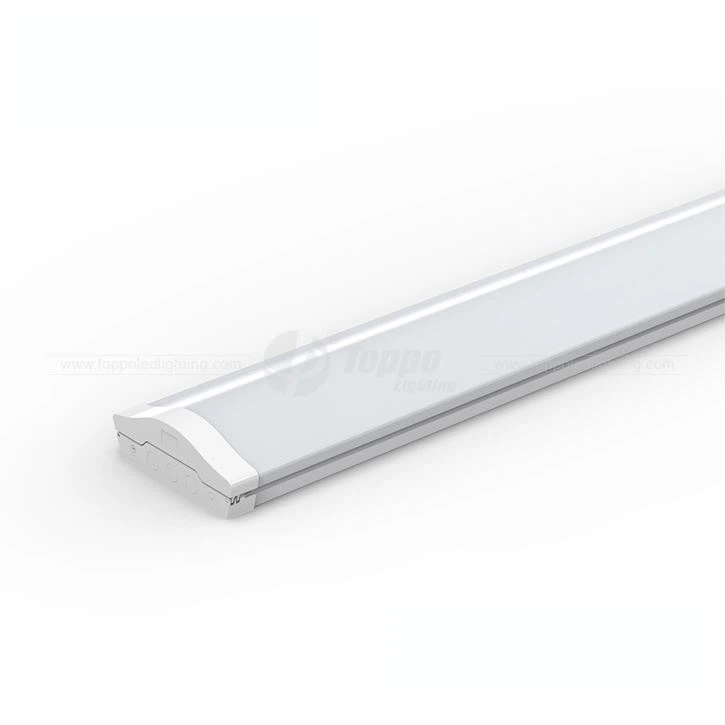

ARCO LED batten Lighting EU
|
 |
| Product Features |
· Patent design on product opening · ON-OFF / 1-10V dimming function · Micro-wave sensor available · Easy installation on end cable entry · 5 years warranty |
| Options |
· Function:ON-OFF / 1-10V dimming / MS · Installation : Surface mounting OR suspension |
| Application |

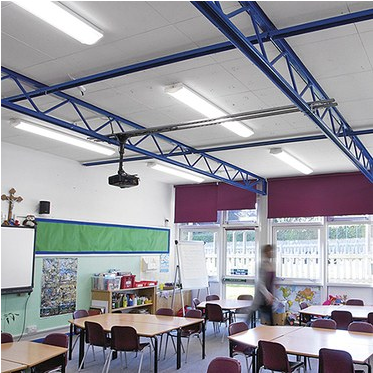

· Replacement for T8 fluorescent batten · Warehouses,Factories, Car Parks,Supermarkets · Stations,Office · etc |
|
|
 |
Item Symbol L-120CM/32W L-150CM/32W L=150CM/60W Premium Premium Premium Rated Power W 32W 32W 60W Product Code / VBS4P1-32N1 VBSSP1-32N1 VBS5S1-6ON1 LED Type/Qty SMD2835 221 221 325 Lumen Eficacy Lm/w typ.125 typ.125 typ.125 Luminous Flux Frosted typ.4000 typ.4000 trp. 7500 UGR / 19<UGR<22 Color Index CRI(Ra) Ra>80 Color Temperature TC(K) WW:3000K, NW.4000K, PW:5000K CW:6000K Beam Angle Degree 120 degree Dimming Function / ON-OFF OR 1-10V dimming Power Factor PF PF>0.95 LED current V Constant 50mA Input Voltage V AC200~240V/50H2 Working Voltage V Constant DC36~42V Housing material / Steel Case + PC Cover Starting time S <0.55 Protecton Class IP IP20 Temperature ℃ Operation:+15℃~+50℃ Storage-25℃~+55℃ Lumen Maintenance % 80% @6000 Swtich cycle times 100000 before fallure Life Span h 50,000 hours . Warranty / 5years |
|
| Why choose us? |
Toppo has set up a quality control and management system by ISO 9001:2015.
Relevant documents and record are effectively controlled to ensure the operation of quality system.
In order to achieve the high quality and capacities,
we use the Auto-SMT and Auto production assembly line to meet high quality requirement.
By these advance applications. Our monthly production capacity increased, LED panel exceed 60,000 pcs,
LED Linear and batten exceed 80,00pcs. The other products exceed 30,000-50,000 pcs for each series.
