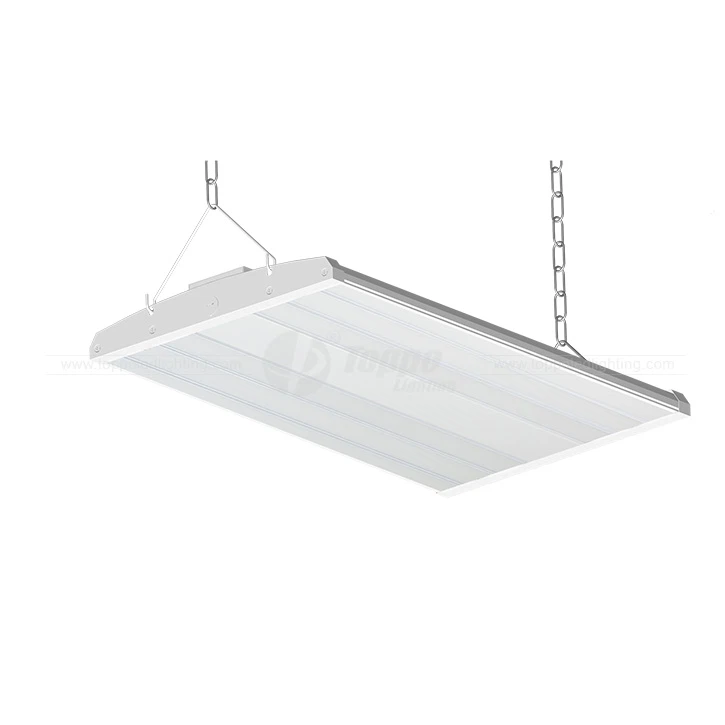

Linear LED High Bay Light
Product Introduction
Linear LED High Bay Light uses high-quality LED chips, high luminous efficiency, low heat, low luminous decay, and high color rendering index. The use of high thermal conductivity thickened aluminum substrate, fast heat dissipation, and prolongs the life of the lamp beads.
The working temperature is safe, and the service life of the overall lamp is improved.
It adopts all-aluminum and bottom plate, which has a wide range of uses and types: Logistics warehouse, gymnasium and fitness place, toll station, farmer's market, exhibition hall, factory workshop
Product Features
Finned radiator, energy-saving and power-saving, Linear LED High Bay Light adopts strong convection heat dissipation design to improve heat dissipation performance and ensure lamp beads.It dissipates heat quickly, and the overall life of the lamp is longer. The light can be reflected uniformly, and the irradiation range is wider, so as to achieve a better lighting effect. Smart IC drive energy-saving and power-saving, stable current, it ensures that the ball is not damaged by unstable voltage, extends lamp life.
 |
 |
| Product Features |
· Rated power : 80-300W · LED driver: Meanwell / Philips · 130Lm/W and 50,000H life span · Steel case as heat sink · Customs-made dimension |
| Options |
· Dimming: On-off OR 1-10V · LED driver: Meanwell or Philips · CCT: WW:3000K, NW:4000K PW:5000K ,CW:6000K · Installation : Chain /Cable Mount Rod Mount / Surface mount |
| Application |
· Traditional lamp replacement · Factories / Warehouses · Supermarkets / schools · Car Parks / Gas stations · etc |
|
 |
●Technical / Electrical Characters (at TA=25°C) Item Symbol 1X2ft 2X2ft 1X4ft 2x4ft 80W 100W 150W 200W 150W 200W 300W Uhit Power W 80W 100W 150W 200W 150W 200W 300W Product Code / TP-HBG12D-80N1-U0 TP-HBG12D-10N1-U0 TP-HBG22D-15N1-U0 TP-HBG22D-20N1-U0 TP-HBG14D-15N1-U0 TP-HBG14D-20N1-U0 TP-HBG24D-30N1-U0 LED TypelQlty SMD2835104X4 143X4 143X6 169X6 221X4 260X4 260X6 Lumen Eficacy Lmw typ.130 typ.130 typ.130 typ.130 typ.130 typ.130 typ.130 Luminous Flux Frosted typ. 10400 typ.13000 typ. 19500 typ. 260000 typ.19500 typ.26000 typ 3000 Product dimension mm 404X612X56. 2mm 564x612X56 2mm 404x1184X56 2mm 564x1184X56. 2mm Color Index CR(Ra) Ra>80 Color Temperature TC(K) WW.3000K. NW.4000K. P:5000K. CN.6000K BeamAngle Degree 120 degree Dimming Function / ON-OFF / 1-10V dimming , Flicker Free Power Factor PF PF>0.95 LED current mA Constant 45mA Input Votage V AC10-277V/50Hz Working Vttage V Constant DC36-42V Housing material / Auminum+ PC Starting time S <0.5S Protection Class IP IP20 Temperature ℃ Operation-15C-+50℃ Storage-25"C-+55℃ Lumen Maintenance@6000hrs % 80% Swtich cycle before failure times 100，000 Life Span h 50,000 hours Warranty / 5 years |
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
