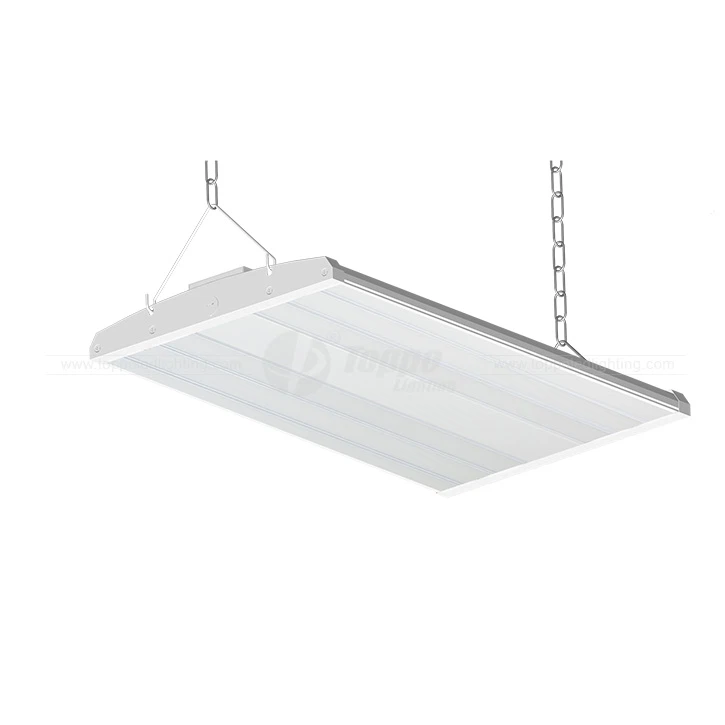

Linear High Bay Light

· Anti-aging and corrosion-resistant

· Linear High Bay Light has various specifications and sizes

· Long lasting

· Soft light without dazzling

· Customs-made dimension

· Corridors

· Factories / Cafes

· Bedrooms / Schools

· Gyms / Movie theaters

· etc

· Product Name: 1x2ft, 2x2ft, 1x4ft, 2x4ft

· Technical/Electrical Characters (at TA=25℃)

· Unt Power: 1x2ft(80W/100W), 2x2ft(150W/200W), 1x4ft(150W/200W), 2x4ft(300W)

· Product Code

  TP-HBG12D-80N1-U0, TP-HBG12D10N1-U0, TP-HBG22D-15N1-U0, TP-HBG22D20N1-U0, TP-HBG14D-15N-U0, TP-HBG-14D-20N1-U0, TP-HBG-24D-30N1-U0

· LED Type/Qty: SMD2835 :104X4, 143X4, 143X6, 169X6, 221X4, 260X4, 260X6

· Lumen Efficacy

  Lm/w: typ.130

· Luminous Flux

  Frosted: typ.10400, typ.13000, typ.19500, typ.26000, typ. 39000

· Poduct drmension

  mm: 404X612X56.2mm, 564x612X56.2mm, 404x1184X56.2mm, 564x1184X56.2mm,

· Color Index

  CRI(Ra): Ra>80

· Color Temperature

  TC(K): WW:3000K, NW:4000K, PW:5000K, CW:6000K

· Beam Angle

  Degree: 120 degree

· Dimming Function

  ON-OFF/ 1-10V dimming

· Power Factor

  PF>0.95

· LED current

  mA: Constant 45mA

· Input Voltage

  V: AC100~277V/50Hz

· Working Voltage

  V: Constant DC36~42V

· Starting time

  S: <0.5S

· Temperatuer

  Operation:-15°C+50°C, Storage: -25°C+55°C

· Lumen Maintenance

  80%

· Switch Cycle before Failure

  times: 100,000

· Warranty

  5 years

Linear High Bay Light has excellent material and quality assurance. Its light perception is bright and uniform, and the use effect is better. It has a variety of sizes and is easy to install. It can often be used for lighting occasions such as offices, bedrooms, movie theaters, gyms, factories, supermarkets, etc. If you want, hurry up and buy the horns. We are here to welcome you anytime. In the future, our goal is to become a sustainable, stable and prosperous enterprise. While continuously innovating and developing new technologies and new products that are beneficial to society, we must always assume the responsibility of social progress and environmental protection!
