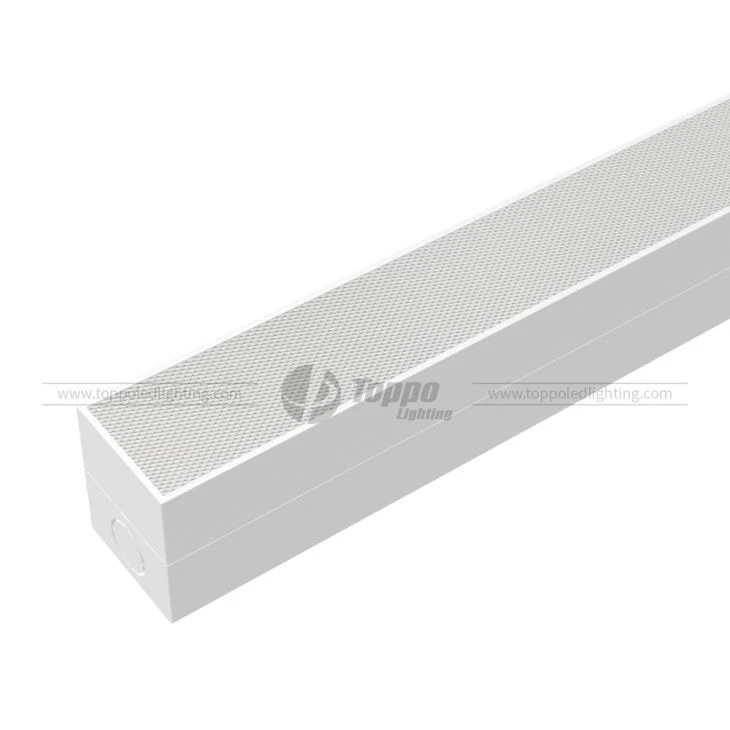

LED Linear Track Light

Product  Features

· Max 200 meter multiple link
·130&150LM/W output
· Wattage adjustable
· Tool Free installation
· Owner design Lens
· LED Linear Track Light has 5years warranty

Options

· Functions : ON-OFF / 1-10V dimming /DALI
· Micro-wave sensor/ PIR Sensor
· 3H EM @10% Lumen output
· Lighting color : Single color or Tri-color
· Beam Angle: 30/60/90/LR25 Degree
· Installation: Surface mounting OR Suspension

Application

· Commerical applications: Supermarkets , Shopmalls, Stations, Car parks, etc

· Industrial applications: Warehouse, Factories, etc

Dimension and Specification

· Product Name: 0.6M/2ft/12W, 0.6M/2ft/24W, 1.2M/4ft/25W, 1.2M/4ft/50W, 1.5M/5ft/32W, 1.5M/5ft/64W,

· Product Code

  TS-LM06-12PN1-AN001, TS-LM06-12PN1-AN002, TS-LM06-12PN1-AN003, TS-LM06-24RN1-AN001, TS-LM06-24RN1-AN002, TS-LM06-24RN1-AN003, TS-LM12-25PN1-AN001, TS-LM12-25PN1-AN002, TS-LM12-25PN1-AN003, TS-LM12-50RN1-AN001, TS-LM12-50RN1-AN002, TS-LM12-50RN1-AN003, TS-LM15-32PN1-AN001, TS-LM15-32PN1-AN002, TS-LM15-32PN1-AN003, TS-LM15-64RN1-AN001, TS-LM15-64RN1-AN002, TS-LM15-64RN1-AN003,

· Lumen Efficacy

  Lm/w: typ.130, typ.150

· Luminous Flux

  LM: typ.1550, typ.3600, typ.3250, typ.7500, typ.4150, typ.9600

· Color Index

  CRI(Ra): Ra>80

· Color Temperature

  Singel color or Tri-color, Tri-color : 3000/5000K, Mixed: 4000K

· Function

  ON-OFF/1-10V/DALI

· Power Factor

  PF>0.95

· Input Voltage

  V: AC200~240V/50Hz

LED Linear Track Light is manufactured with precision, simple and elegant appearance, fine texture, high brightness and good quality. When it is used for lighting, the color reproduction of the object is high, and the color rendering effect is good. It has good light transmittance, sturdiness and durability, and long life.
