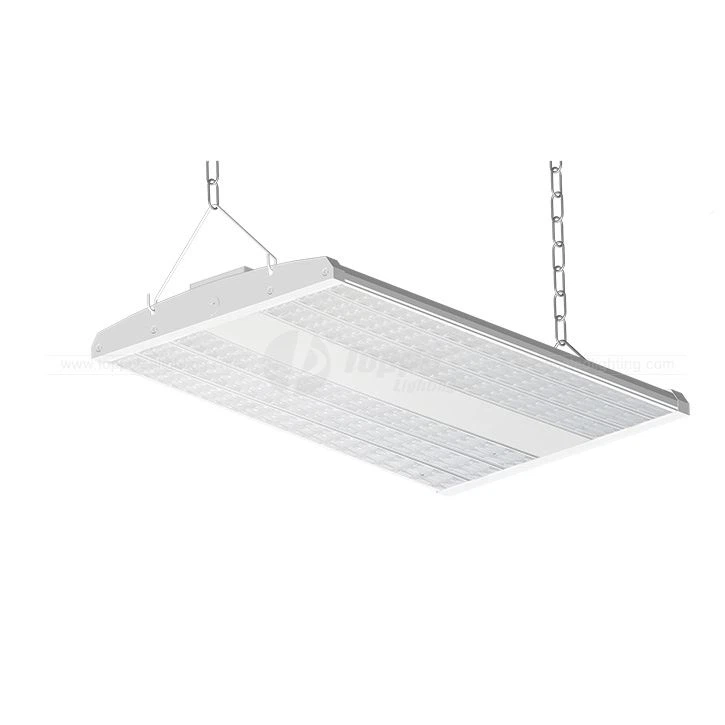

LED Linear Pendant Light

· Energy saving

· LED Linear Pendant Light has stable heat dissipation

· Easy to install

· A variety of styles are available

· High quality and long life

· High brightness and positive color temperature

· Product Name(Unit: mm): 1x2ft(404,612,56.2), 2x2ft(564,612,56.2), 1x4ft(404,1184,56.2), 2x4ft(564,1184,56.2)

· Photometry Curve: AVERAGE BEAM ANGLE(50%) 120DEG

· Technical/Electrical Characters (at TA=25℃)

· Unt Power: 1x2ft(80W/100W), 2x2ft(150W/200W), 1x4ft(150W/200W), 2x4ft(300W)

· Product Code

  TP-HBG12D-80N1-U0, TP-HBG12D10N1-U0, TP-HBG22D-15N1-U0, TP-HBG22D20N1-U0, TP-HBG14D-15N-U0, TP-HBG-14D-20N1-U0, TP-HBG-24D-30N1-U0

· LED Type/Qty: SMD2835 : 104X4, 143X4, 143X6, 169X6, 221X4, 260X4

· Lumen Efficacy

  Lm/w: typ.130

· Luminous Flux

  Frosted: typ.10400, typ.13000, typ.19500, typ.26000, typ.39000,

· Color Index

  CRI(Ra): Ra>80

· Beam Angle

  Degree: 120 degree

· Dimming Function

  ON-OFF/ 1-10V dimming /Ficker Free

· Power Factor

  PF>0.95

· LED current

  mA: Constant 45mA

· Input Voltage

  V: AC100~277V/50Hz

· Working Voltage

  V: Constant DC36~42V

· Housing material

  Alumminum+PC

· Open office area

· Meeting rooms

· Dinning rooms

· Warehouses

· etc

LED Linear Pendant Light is It is comfortable and bright, power saving and no flicker.. It is high quality and durable. It has a wide range of uses and can be used in many occasions. It is stable and absolutely safe. It is easy to install, and we will provide after-sales service to your satisfaction. We guarantee you an absolutely comfortable shopping experience.
