LED Batten 1200

· Paten low glare design on 80mm

· Easy open between up-down case

· End or rear cable entry

· Multiple link without light gap

· LED Batten 1200 has 5 years warranty.

· Tri-color CCT:3000/4000/5000K

· Function:ON-OFF / 1-10V dimming

· Installation : Surface mounting OR suspension

· Replacement for T8 fluorescent batten

· Warehouses,Factories, Car Parks,Supermarkets

· Stations,Office

· etc

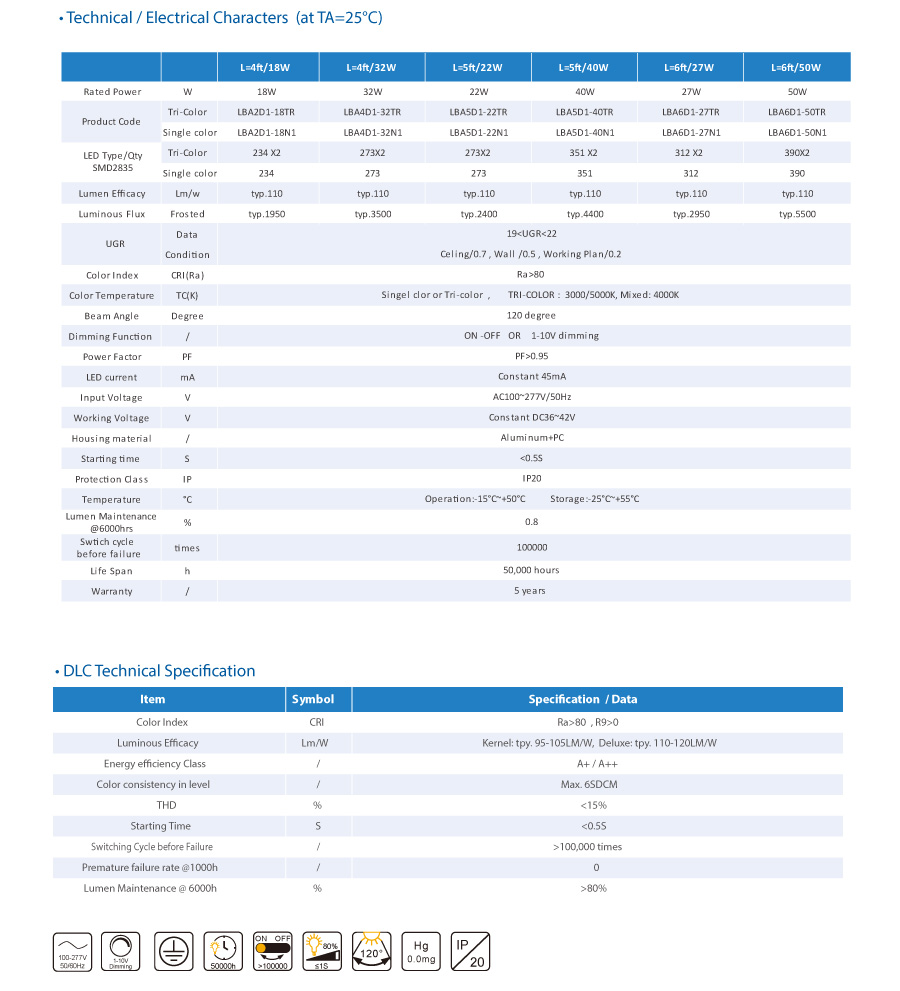

Dimension and Specification

· Product Name(Unit: mm): 120cm/4ft, 150cm/5ft, 180cm/6ft

· Photometry Curve: AVERAGE BEAM ANGLE(50%) 120DEG

· Item: L=4ft/18W, L=4ft/32W, L=5ft/22W, L=Sft/40W, L=6ft/27W, L=6ft/50W

· Rated Power: 18W, 32W, 22W, 40W, 27W, 50W

· Product Code

  Tri- Color: LBA2D1-18TR, LBA4D1-32TR, LBASD1-22TR, LBA5D1-40TR, LBA6D1-27TR, LBA6D1-50TR
  Single color: LBA2D1-18N1, LBA4D1-32N1, LBASD1-22N1, LBA5D1- -40N1, LBA6D1-27N1, LBA6D1-S0N1

· LED Type/Qty(SMD2835)

  Tri-Color:234 X2, 273X2, 351 X2, 312 X2, 390X2
  Single color: 234, 273, 351, 312, 390

· Lumen Efficacy

  Lm/w: typ.110

· Luminous Flux

  Frosted: typ.1950, typ.3500, typ.2400, typ.4400, typ.2950, typ.5500

· UGR

 19<UGR<22

· Color Index

  CRI(Ra): Ra>80

· Color Temperature

  Singel color or Tri-color, Tri-color : 3000/5000K, Mixed: 4000K

· Beam Angle

  Degree: 120 degree

· Dimming Function

  ON-OFF / 1-10V dimming

· Housing Material

  Aluminum+PC

· Power Factor

  PF>0.95

· LED current

  mA: Constant 50mA

· Input Voltage

  V: AC100~277V/50Hz

· Working Voltage

  V: Constant DC36~42V

· Starting time

  S: <0.5S

· Lumen Maintenance @6000hrs

  80%

· Protection Class

  IP: IP20

· Swtich cycle before failure

  times: 100,000

· Temperature

  Ope ration:-15°C~+50°C    Storage :-25°C~+55°C

· Life Span

  50,000 hours

· Warranty

  5 years

The light sources are evenly distributed and the heat dissipation effect is good. Its raw materials have been washed, polished and high-temperature stamped many times, so its quality is stable and the driving power supply effect is good. Its color temperature is comfortable, and adapting to LED Batten 1200 can bring people a sense of pleasure.
