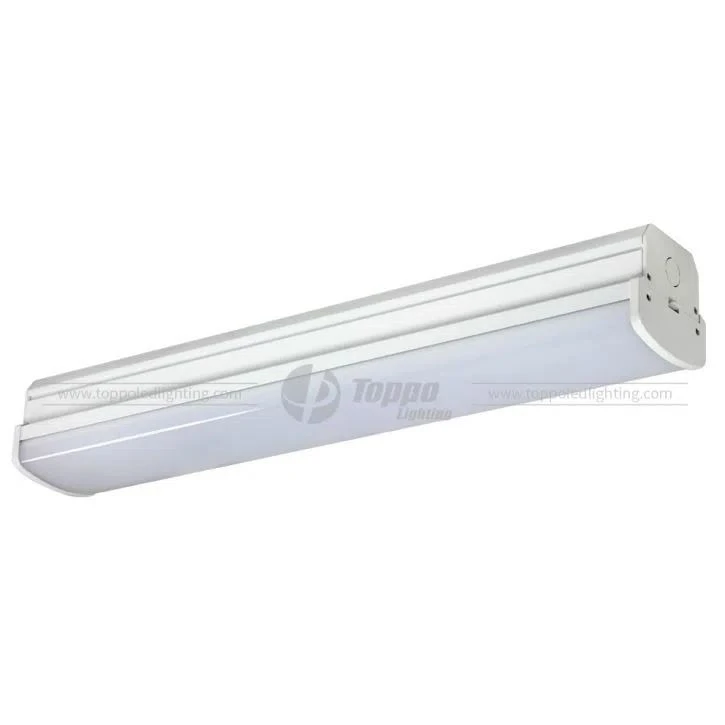

LED 150cm Single Batten CRI>80 SMD3825
LED single battens can save energy up to 60% and are the best replacement for fiuorescent twin batten fitting.
Due to the high lumen efficacy and the best replacement ofthe fluorscent twins batten fitting.The led single batten is very popular in european market.
Send Inquiry
  |
|
|
|
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
|
| Item | Symbol | 2ft/60cm/22w | 4ft/120cm/32w | 5ft/150cm/540W | 5ft/150cm/55W | 6ft/180cm/65W |
| Product Code | / | TP-BTS2D1-22-E0 | TP-BTS4D1-32-E0 | TP-BTS5D1-40-E0 | TP-BTS5D1-55-E0 | TP-BTS6D1-65-E0 |
| Rated Power | W | 18 | 32 | 40 | 55 | 65 |
| LED Typ/Qty | SMD3825 | 132 | 192 | 240 | 364 | 442 |
| Luminous Flux | LM | typ.2650-2850 | typ.3850-4150 | typ.4800-5200 | typ6500-7000 | typ.7800-8400 |
| Luminous Efficacy | LM/W | typ.120-130 | ||||
| Color Index | Ra | Ra>80 | ||||
| Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
| Lumen maintance | % | >80% | ||||
| AC Input Voltage | V | AC100-277V | ||||
| Power Factor | PF | PF>0.95 | ||||
| Flicker-free | / | Yes | ||||
| Switching Cycle before Failure | Times | 100000 | ||||
| Life Span | Hours | 50000 hours | ||||
| Warranty | Years | 5 years | ||||
| Operation Temperature | ℃ | -15℃~+50℃ | ||||
| Storage Temperature | ℃ | -25℃~+55℃ | ||||
