Wattage Adjustable 2D MOD Bulkheads LED Ceiling Lamp
Product View
〼 Brief Introduction The Wattage Adjustable 2D MOD Bulkheads LED Ceiling Lamp is a modern and versatile light fixture, which some people also call it oyster light. With the UV resistant plastic housing, the light will not turn yellow quickly even you use it outdoor. The metal gear tray is replaceable, with PCB and CCT switch above and driver / emergency kit / sensor / terminal block beneath it. Aluminum PCB and the metal plate are screwed closely, making the heat dissipation excellent.
| |
〼 Feature View √ UV Resistant Plastic Case √ Surface Mounted Method √ D320 Large Dimension | 〼 Benefit View √ Energy Saving √ Long 5 Warranty Period √ Protect your eyes from UV harm |
 |  |  |
| Surface Mounted | IP65 Plastic Case | D320 |
Parameter Learning
〼 Specification
| Waterproof D320 MOD Bulkheads | |||
| Item | Specification / Data | Item | Specification / Data |
| Rated Power | 14W/18W | LED Type/Qty | SMD2835 84*2 |
| Lumen Efficacy | 100lm/w | Lumen Flux | 1400lm/1800lm |
| Color Index | Ra>80 | Power Factor | >0.95 |
| Beam Angle | 120 degree | Efficiency in | >93% |
| Color Temperature | Single Color or Tri-Color | Energy Efficiency Class | A |
| Dimming Function | STD/ON-OFF STD+EM STD+MS STD+EM+MS | Standard deviation of color matching | <5 |
| MS Function | 0% Or 10% Brightness on Micro-wave sensor | Starting Time | <0.55 |
| EM time / LM | 1W/3H Emergency at 10% lumen output | Warm-up time to 60% | <0.55 |
| LED current | Constant 67 mA | Lifespan | >30,000h |
| Input Voltage | AC200-240V / 50HZ~60Hz | Lumen Maintenance at e.o.l. | >80% |
| Working Voltage | Constant DC36-42V | LED Device Lifetime | L80/B10@50,000h |
| Temperature | Operation: -15℃ ~ +50℃, Storage: -25℃ ~ + 55℃ | Switching Cycle before Failure | >10,000 times |
| Projection Class | IP65 | Color consistency in level | Max 6SDCM |
| Warranty | 5-year warranty, EM battery: 3-year | THD | <15% |
| 〼 Dimension | 〼 Beam Angle |
 |  |
| 〼 Installation | ||
 |  |  |

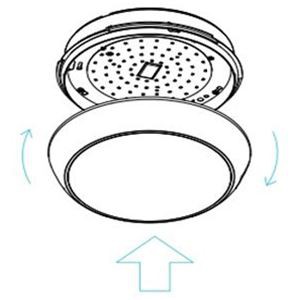

1) Counterclockwise rotate the cover to remove it. | 2) Loosen the gear tray mounting screws and slightly rotate the gear tray to remove it. | 3) Install the waterproof rubber grommet and drill a hole in it to insert the AC mains cable. |
 |  |  |

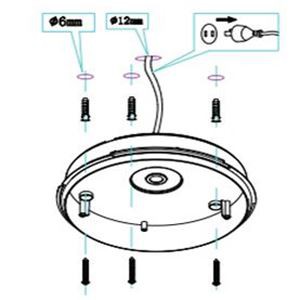

4) Drill the mounting screw holes and fix the lamp base to the mounting surface. | 5) Connect the AC mains to the connection terminal and reinstall the gear tray. | 6) Reinstall the cover. |
Application Show
Toppo Anti-UV MOD Bulkheads Lamp is best replacement for traditional 2D fluorescent, suitable for various applications :
> Houses
> Stairs /Corridors
> Architectural lightin
 |  |
Balcony | Passage |
Package & Delivery
〼 Package
| D320 MOD Package | ||||||
| Product Type | Rated Power | Inner Box | Outer Carton | Qty/Carton | Unit N.W. | G.W/Carton |
| STD ON-OFF | 14w/18w | 335 x 117 x 335mm | 685 x 605 x 360mm | 10pcs | 0.95Kg | 13kg |
| STD+EMG | 14w/18w | 335 x 117 x 335mm | 685 x 605 x 361mm | 10pcs | 1.02Kg | 14kg |
| STD+MS | 14w/18w | 335 x 117 x 335mm | 685 x 605 x 362mm | 10pcs | 1.01Kg | 13.9kg |
| STD+EMG+MS | 14w/18w | 335 x 117 x 335mm | 685 x 605 x 363mm | 10pcs | 1.08Kg | 14.7kg |
〼 Delivery
 |  |
| Container | Transportation |
About FAQs
Q1: Can CCT switch to be 3000K, 4000K and 6000K?
A1: Yes, the CCT switch can be 3000K-4000K-6000K.
Q2: How many years warranty for your Led light products？
A2: Mostly 5 years warranty.
Q3: Is free sample available from you？
A3: Yes, we are willing to provide free sample.
(More FAQs are expected...If you have any question, welcome to contact us.)
Our Company
Toppo Lighting is one of the professional manufacturers, which specializes in developing, production and selling on LED lighting since 2009. As a global LED enterprise, Toppo provides products ranging from the industrial lighting, commercial lighting, office lighting, education lighting and residential lighting, including LED Highbay Light, LED Workbench light, LED Linear light, LED Trunking System, LED Panel Light, LED Bulkhead, LED Down light, LED Tube etc. We also offer OEM customization. If needed, pls contact us : inquiry@toppolighting.com
