Indoor Suspended LED Linear Lighting

Send Inquiry Chat Now
The linear system comprises of LED module sections,trunking sections and accessories .It's pre-wired for easy multiple link with very lower labour cost . The smart design on the linear system make more and more client interest it. It provide 5 years warranty and maintenacne free .

indoor suspended led linear lighting


indoor suspended led linear lighting.jpg
indoor suspended led linear lighting.jpg

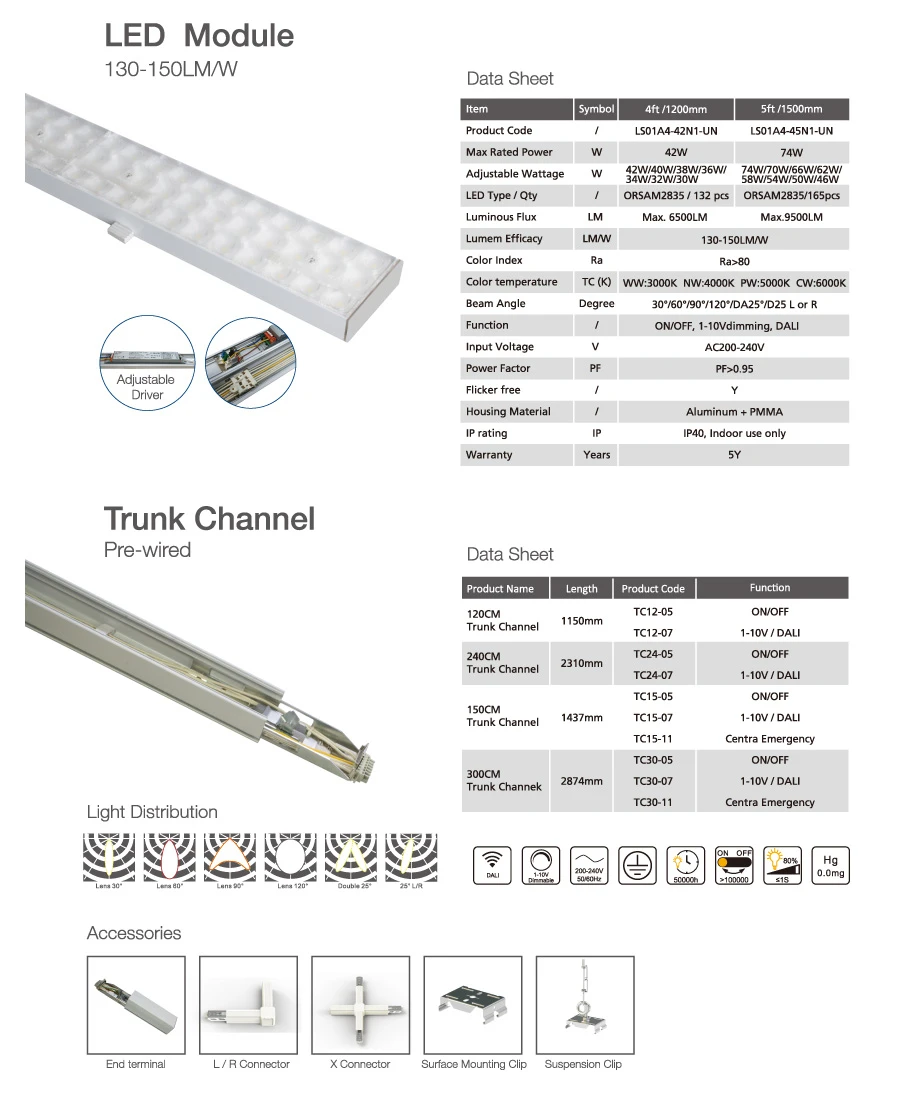

           Key Features
1.OSRAM patent led as standard
2.Pre-wired module and Channel
3.UP to 60% energy saving
Construction Features
1.Various of different beam angle
2.Wango AC connector as standard
3.Special design foe multiple link
Application
1.A design on LED Lighting system for trunking .
2. Industrial Lighting: Factory, Warehouse, etc
3.Commercial Lighting: Office, Supermarket, etc.
4. Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc

indoor suspended led linear lighting.jpg


indoor suspended led linear lighting.jpg

indoor suspended led linear lighting.jpg

indoor suspended led linear lighting.jpg

indoor suspended led linear lighting.jpg

FAQ


1.what’s the meaning of “Beam Angle “?

The  spread of light from a luminaire . For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to

illuminate a given floor area while a high bay fitting will have a narrower beam .


2.How do we explain “CRI” ?

A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when

illuminated by a reference source of comparable colour temperature . The reference source has a CRI of 100 .


3.What’s colour temperature ?

The description used to describe the effect of heating an object until it grows incandescently . The emitted radiation ,and apparent colour ,

changes proportional to the temperature ; easily envisioned radiation ,and apparent colour ,changes proportional to the temperature;easily

envisioned ,when considering hot meal in a forge that glows red ,then orange ,and then white as the temperature increases .


4.Do you know “dali “?

Digital  addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.


5.What’s the fire rating categories ?

VO-Burning stops within 10 seconds on vertical specimen ; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed .

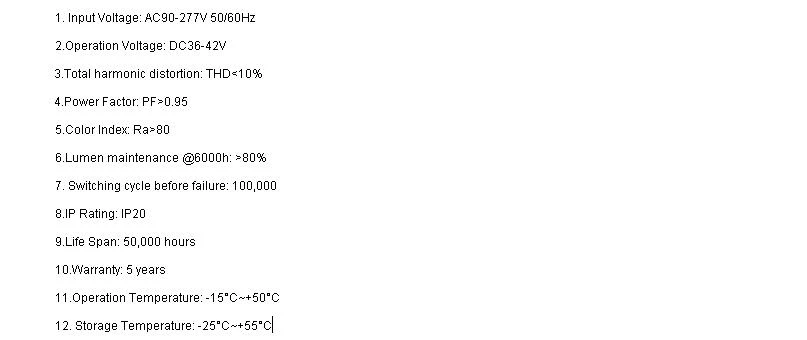

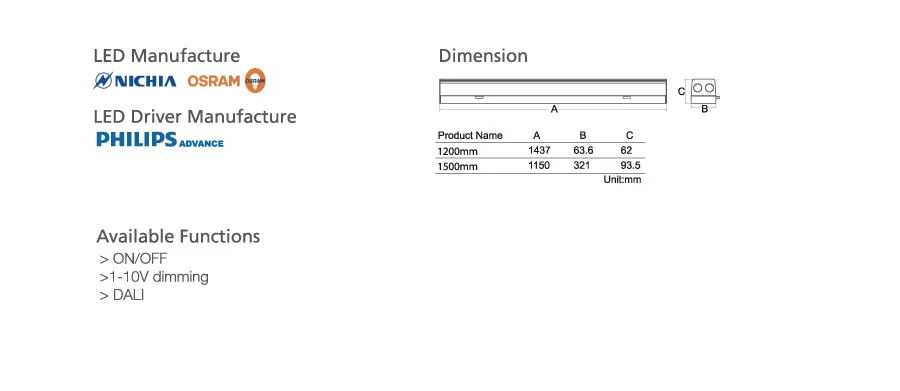

Technical Features

indoor suspended led linear lighting.jpg
