High Efficiency 190LM/W 150 Watt UFO LED High Bay Light 200W
High Efficiency 190LM/W 150 Watt UFO LED High Bay Light 200W
Toppo’ s UFO Highbay Series offers a wide range of functionality, new innovative features and a modern and uniform design across the whole range.
The heatsink was designed for excellent heat dissipation as well as a modern appearance, while still being cost effective. All members of this series come with a competitive price and with 5 years warranty.
This Highbay series is available with 140lm/w, 160lm/w, 180lm/w and 190lm/w system efficiency, different drivers and different optical features as well as various accessories like motion and daylight sensors and different mounting options.

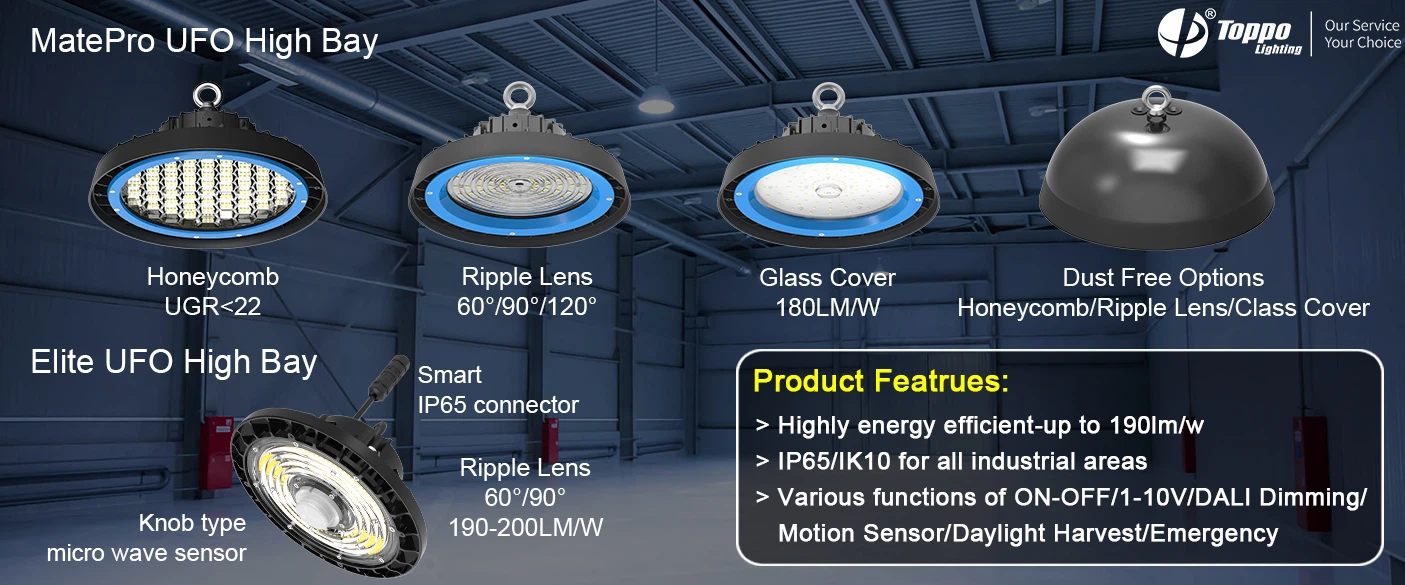

New Elite UFO High Bay can reach high efficiency up to 190lm/w. Smart IP65 connector between PCB and LED driver is easy for driver replacement while Smart IP65 connecotr for MS/EM/AC wiring is easy for installation. For this new product, we use Knob type micro wave sensor which is easy to change ON-OFF/1-10V/MS function.
 |  |
 |  |
| Product Features | Smart Features |
| > Highly evergy efficient-up to 190lm/w | > Smart IP65 connector between PCB and LED driver, Easy for driver replacement |
| > Special heat sink design for excellent heating dissipation | > Smart IP65 connector for MS/EM/AC wiring, easy installation |
| > IP65/IK10 for all industrial applications | > Knob type micro wave sensor, Easy to change ON-OFF/1-10V/MS Function |
| > Neewest generation 1W SMD2835 as light source | Options |
| >D-Mark tested for the use in paper production, wood processing etc. | > Controls and Dimming: 1-10V/DALI Dimming/Motion Sensor/Daylight Harvest/Emergency |
| > No UV or IR and completely mercury free | > Driver shape: round |
Applications
> Factories/Warehouses/Workshops
> Exhibitions&showrooms/Barns and riding halls
> High rooms and halls
> Traditional lamp replacement
Data Sheet
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficacy | Color Index | IP/IK | AC Input | Power Factor | Beam Angle |
| HB24-75VN1-URF1F-000 | D240-75W-Elite UFO | 75W | 14250LM | 190LM/W | Ra>80 SDCM<5 | IP65/IK10 | AC100-277V | PF>0.95 | 60°/90° |
| HB24-1AVN1-URF1F-000 | D240-100W-Elite UFO | 100W | 19000LM | 190LM/W | Ra>80 SDCM<5 | IP65/IK10 | AC100-277V | PF>0.95 | 60°/90° |
| HB28-1BVN1-URF1F-000 | D280-150W-Elite UFO | 150W | 28500LM | 190LM/W | Ra>80 SDCM<5 | IP65/IK10 | AC100-277V | PF>0.95 | 60°/90° |
| HB32-2AVN1-URF1F-000 | D320-200W-Elite UFO | 200W | 38000LM | 190LM/W | Ra>80 SDCM<5 | IP65/IK10 | AC100-277V | PF>0.95 | 60°/90° |
