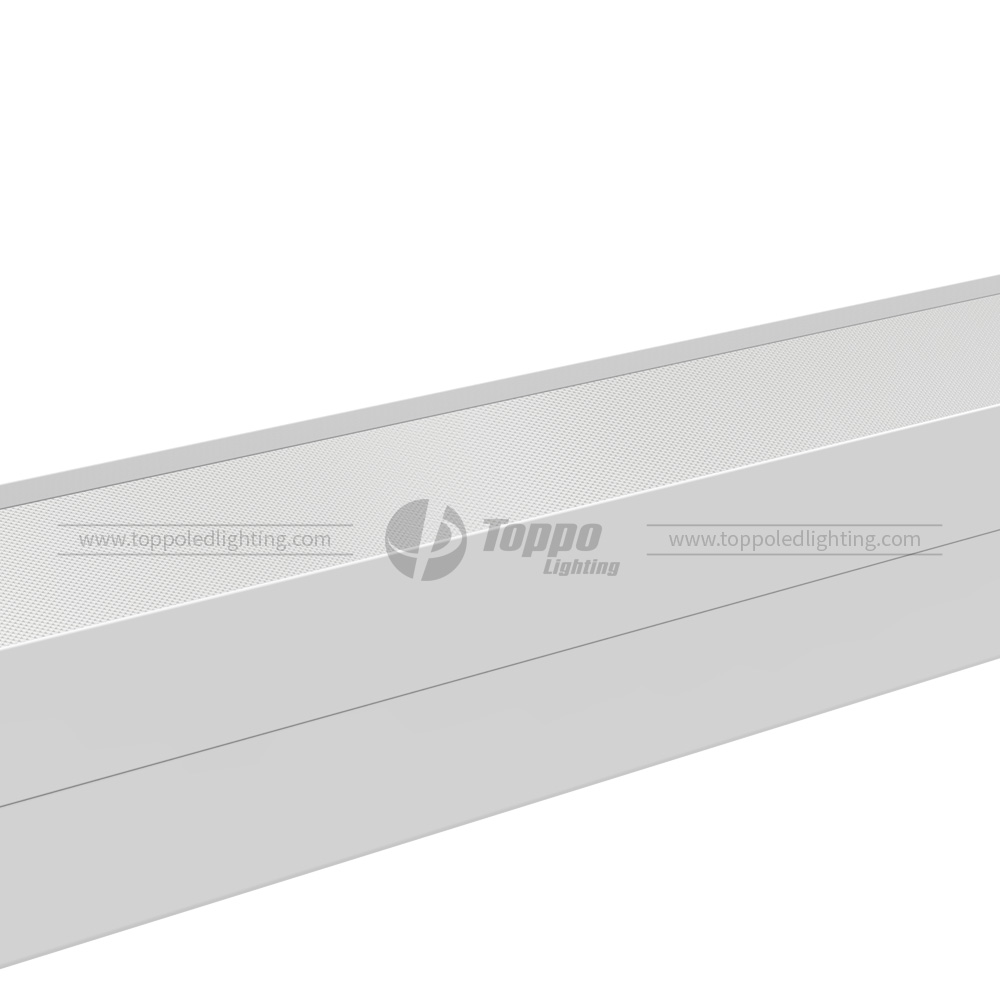

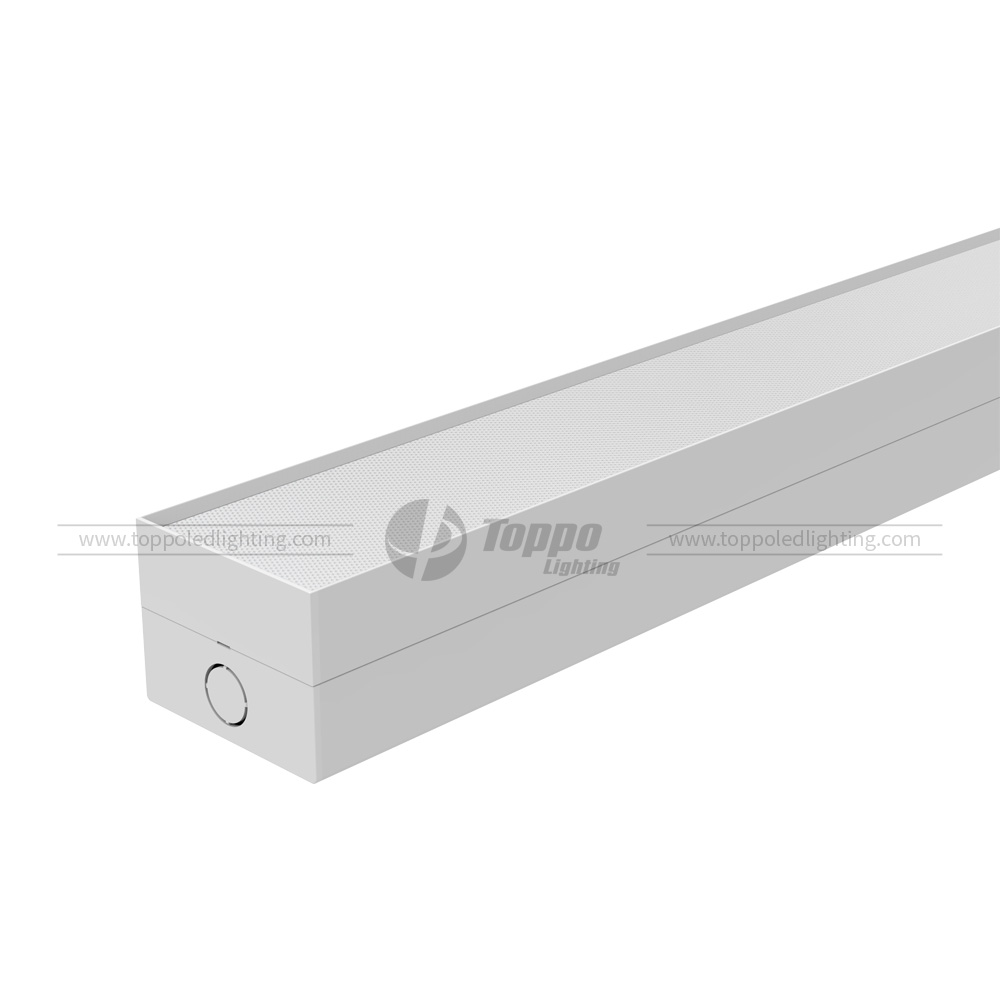

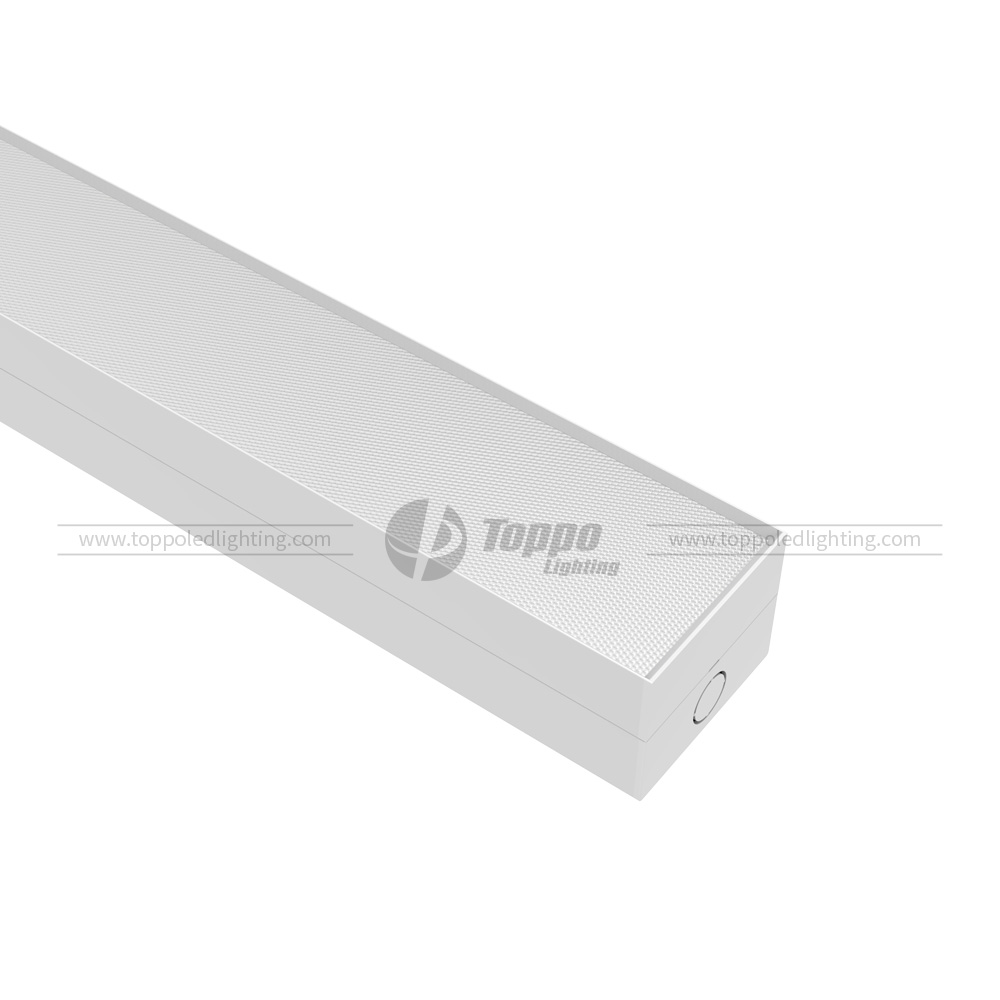

Gentle Upton LED Batten UGR<19 Replacement for Normal Batten

· Paten low glare design on 80mm

· Easy open between up-down case

· End or rear cable entry

· Multiple link without light gap

· 5 years warranty

· Tri-color CCT:3000/4000/5000K

· Function:ON-OFF / 1-10V dimming

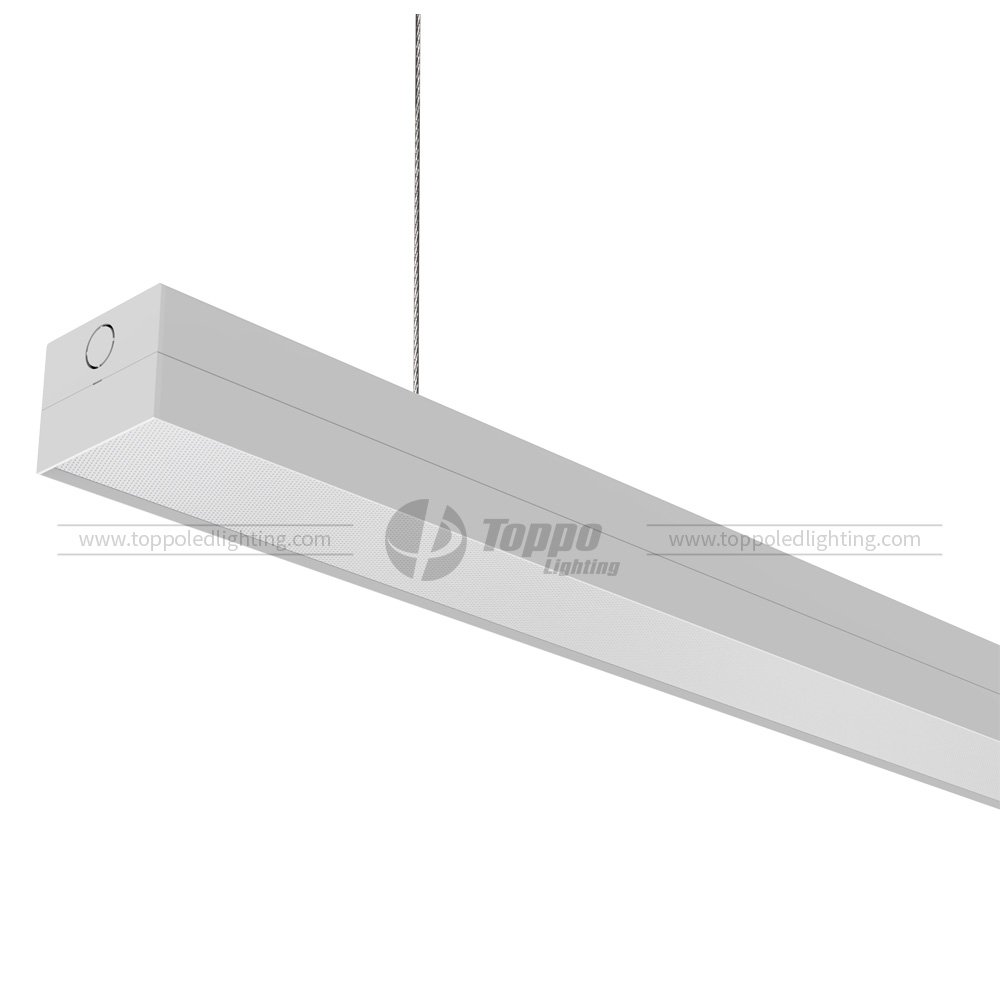

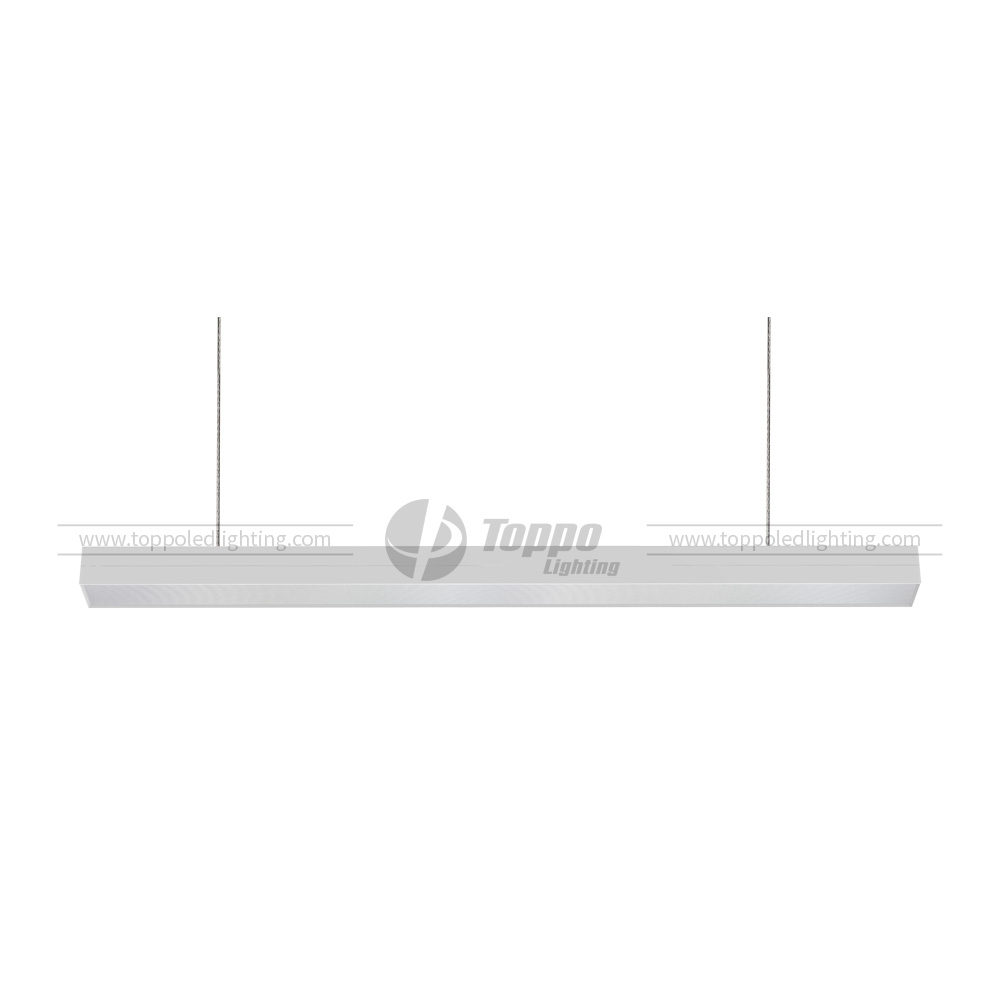

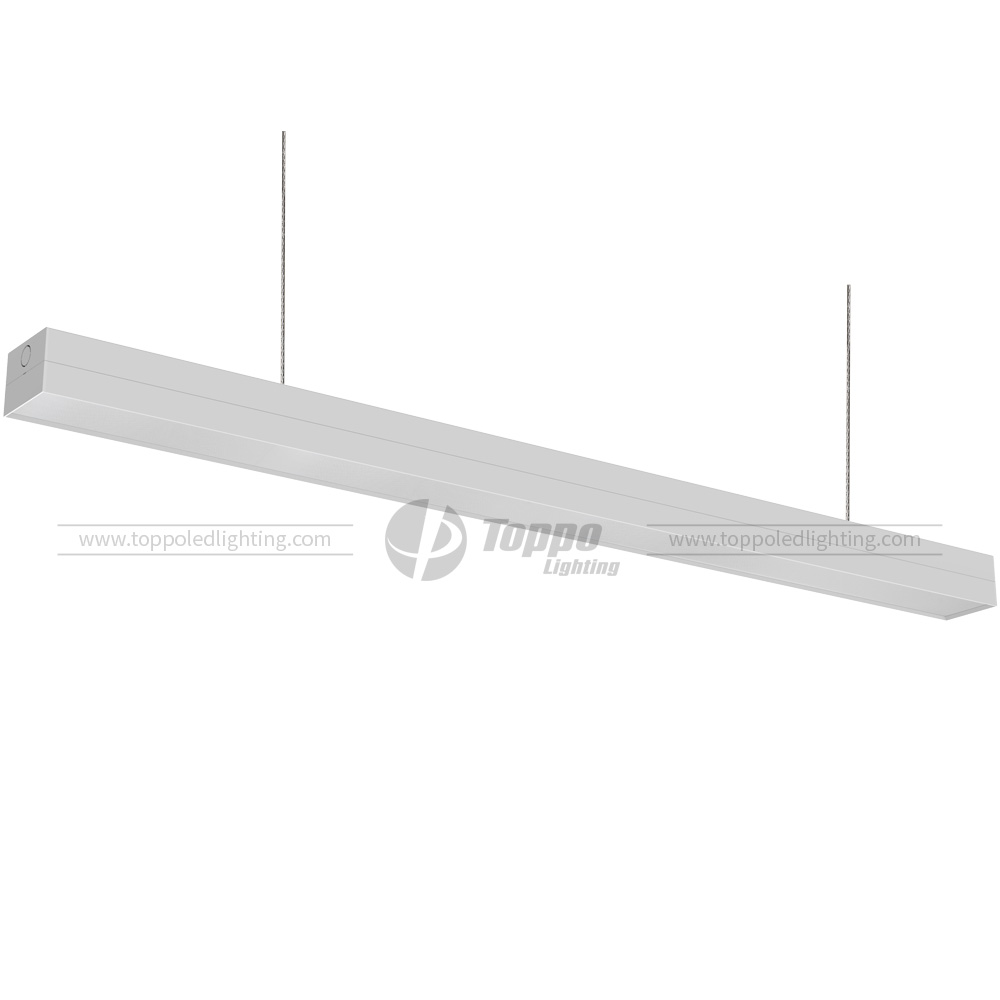

· Installation : Surface mounting OR suspension

· Replacement for T8 fluorescent batten

· Warehouses,Factories, Car Parks,Supermarkets

· Stations,Office

· etc

Gentle Upton Batten

Item

Symbol

L=120cm/4ft

L=150cm/5ft

L=180cm/6ft

Rated Power

W

17W

32W

22W

40W

27W

50W

LED Type / Qty SMD2835

Tri-color

208x2

260x2

260x2

312x2

312x2

364x2

Single Color

208

260

260

312

312

364

Lumen Efficacy

LM / W

typ. 110

Luminous Flux

LM

1950

3500

2400

4400

2950

5500

UGR

Data

UGR<19

Condition

Ceiling / 0.7, Wall / 0.5, Working Plan / 0.2

Color Index

CRI(Ra)

Ra>80

Color Temperature

TC(k)

Single color: WWW:3000K , Tri-color : 3000/5000k , Mixed : 4000k

Beam Angle

degree

120 degree

Dimming Function

/

ON-OFF/ 1-10V dimming/ DALI

Power Factor

PF

PF>0.95

Lumen Current

mA

Constant 45mA

Input Voltage

V

AC200-240V / AC100-277V / 50 Hz

Housing Material

/

Aluminum + Pc

Starting Time

S

<0.55

Protection Class

IP

IP20

Lifespan

h

50,000 hours

Guarantee

/

5 years

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
