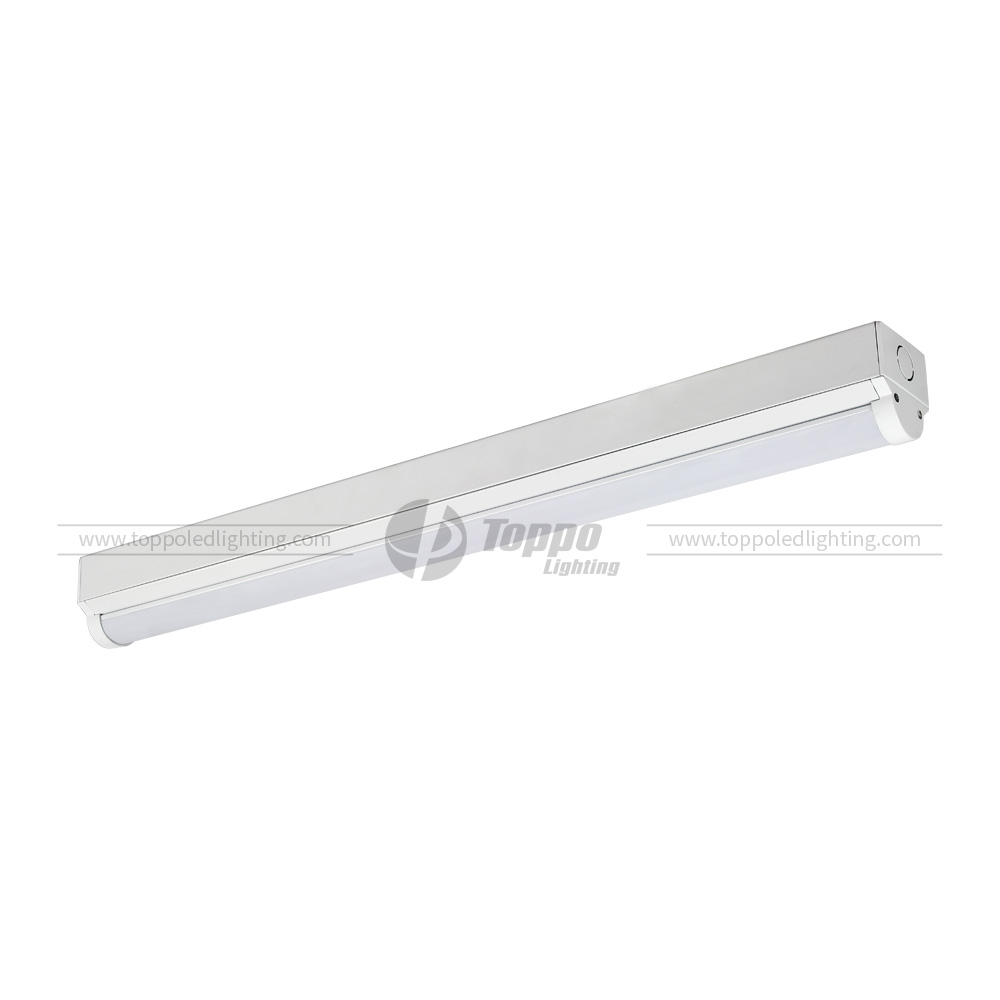

TUV/GS certificate IP20 LED beam Light
Paten design for T8 fluorescent fitting
End or rear cable entry
Easy installation
5 years warranty
LED Linear Light: T8 Slim Batten-160LM/W According to 2021 sales reports, the market demand increase for high lumen package, especially for the led batten light, LED Panel Light, LED Highbay, LED Tri-proof Light and etc. Since beginning of 2022, Toppo had upgrade the lumen efficiency up to 160lm/w for many mature products, including the most hot seller T8 Slim Batten, offering the external Dimming PIR Sensor. Upon release, most contractors arrange the sample testing for new projects. |
 |
| Features |
| > Paten design for T8 fluorescent fittin > End or rear cable entry > Easy installation > 5 years warranty |
| Options |
| > Emitting color: single or tri-color > Dimming: ON-OFF / 1-10V Dimming / DALI > Wiring method : single or double side > Installation : surface mounting or suspension |
| Applications |
Replace fluorescent batten Industrial Lighting: Factory, Warehouse, etc Commercial Lighting: Office, Supermarket, etc. Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc |
 |
|
Data Sheet-EU Style
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | Color | AC Input | Power Factor | IP Rate |
BT02-10PN1- STN2B-001 | 60CM-10W GS T8 Slim Batten | 10W | 1250LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT04-17PN1- STN2B-001 | 120CM-17W GS T8 Slim Batten | 17W | 2100LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT04-32PN1- STN2B-001 | 120CM-32W GS T8 Slim Batten | 32W | 4000LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT05-28PN1- STN2B-001 | 150CM-28W GS T8 Slim Batten | 28W | 3500LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT05-56PN1- STN2B-001 | 150CM-56W GS T8 Slim Batten | 56W | 7000LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT06-32PN1- STN2B-001 | 180CM-32W GS T8 Slim Batten | 32W | 4000LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
BT06-62PN1- STN2B-001 | GS T8 Slim Batten | 62W | 7750LM | 125LM/W | Ra>80 | Single/ Tri-color | AC 200-240V | >0.95 | IP20 |
 | |
 |  |
 |  |
Why choose us? Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement at competitive price with us. We can also offer you customized service.
|
