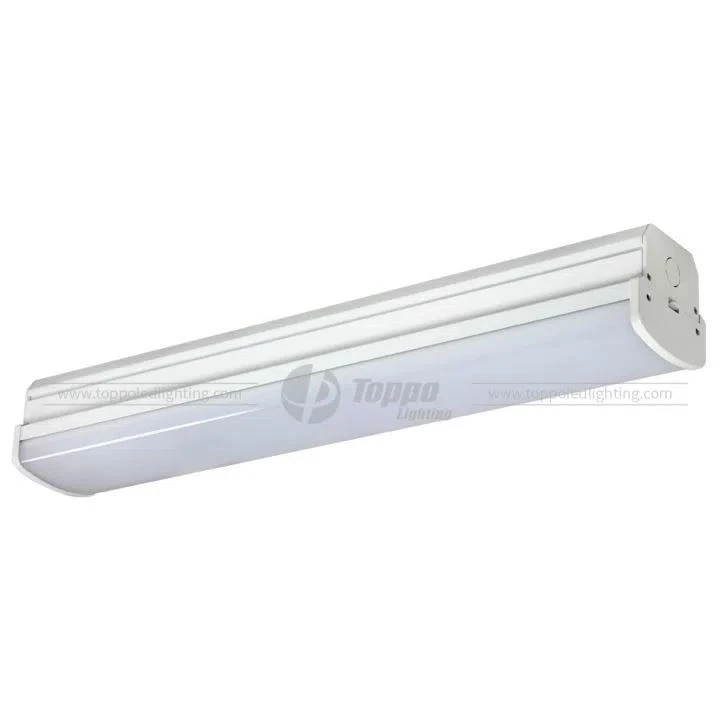

Fluorescent LED Single Batten Light 4ft 32w
LED single batten lights are complete LED solutions designed to replace 2ft to 6ft T6 and T8 twins batten fittings in commercial and industrial applications.
Send Inquiry

|
|
|
|
|
| Item | Symbol | 2ft/60cm/22w | 4ft/120cm/32w | 5ft/150cm/540W | 5ft/150cm/55W | 6ft/180cm/65W |
| Product Code | / | TP-BTS2D1-22-E0 | TP-BTS4D1-32-E0 | TP-BTS5D1-40-E0 | TP-BTS5D1-55-E0 | TP-BTS6D1-65-E0 |
| Rated Power | W | 18 | 32 | 40 | 55 | 65 |
| LED Typ/Qty | SMD3825 | 132 | 192 | 240 | 364 | 442 |
| Luminous Flux | LM | typ.2650-2850 | typ.3850-4150 | typ.4800-5200 | typ6500-7000 | typ.7800-8400 |
| Luminous Efficacy | LM/W | typ.120-130 | ||||
| Color Index | Ra | Ra>80 | ||||
| Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
| Lumen maintance | % | >80% | ||||
| AC Input Voltage | V | AC100-277V | ||||
| Power Factor | PF | PF>0.95 | ||||
| Flicker-free | / | Yes | ||||
| Switching Cycle before Failure | Times | 100000 | ||||
| Life Span | Hours | 50000 hours | ||||
| Warranty | Years | 5 years | ||||
| Operation Temperature | ℃ | -15℃~+50℃ | ||||
| Storage Temperature | ℃ | -25℃~+55℃ | ||||
