Factory Price T6 LED Tube SMD2835 1.2m 18w LED Tube Fixture T6 LED Tube Light
T6 LED Tube
General: 95-105LM/W Premium: 120-130LM/W
● Product Features
◆ Special design for G5 cap
◆ Up to 60% energy saving
◆ 50000 hours life span
◆ 5 years warranty
● Product Options
◆ Lumen efficacy: 95-105LM/W,120-130LM/W
◆ Cap ring color: Various color
◆ PC cover: Clear or frosted
◆ Pink color meant
● Applications

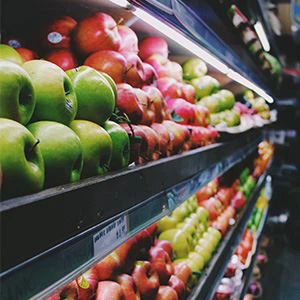

used in fresh food supermarket
used in the convenience store

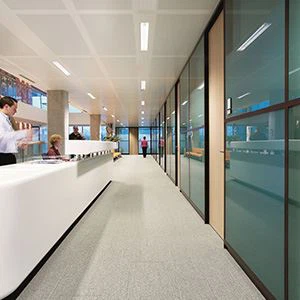

used in office
● Technical/Electrical Characters (at TA=25℃)
tt
| Item | Symbol | T6 Tube |
| Power Factor | PF | PF>0.95 |
| Color Temperature | TC(K) | WW:2500-4000K NM:4000-5000K PW:5000-6000K CW:>6000K |
| Beam Angle | Degree | 120 degree |
| LED Forwarder Current | mA | Constant 45mA |
| Input Voltage | V | AC100-277/50Hz |
| Working Voltage | V | Constant DC 36-40V |
| Housing Material | / | Aluminum+PC |
| Socket/Diameter | / | Rotatable G13/D26mm |
| Protection Class | IP | IP20 |
| Temperature | ℃ | Operation:-10℃~40℃ Storage:-30℃~60℃ |
| Life Span | h | 50,000 hours |
| Warranty | / | 5 years |
● ERP Technical Specification
| Item | Symbol | Specification/Data |
| Color index | CRI | Ra>80, R9>0 |
| Luminous efficacy | LM/W | General: 95-105LM/W Premium: 120-130LM/W |
| Color consistency in the level | / | Max.6SDCM |
| THD | % | <15% |
| Starting time | s | <0.5s |
| The switching cycle before failure | / | >200000 times |
| Premature failture @ 1000h | / | 0 |
| Lumen maintenance @6000h | % | >80% |
● Package
| Product type | Rated Power | Inner Box | Outer Carton | Qty/Carton | Unit N.W | G.W/Carton |
| L=600mm/2ft | 10W | 650*35*31mm | 665*195*175mm | 50pcs | 210g | 7.0kg |
| L=1200mm/4ft | 18W/20W | 1260*35*31mm | 1275*195*175mm | 25pcs | 210g | 12.5kg |
| L=1500mm/5ft | 22W/25W/30W | 1560*35*31mm | 1575*195*175mm | 25pcs | 440g | 14.2kg |
▲ Caution
※ In case of electric shock, please make sure the power is off before installation.
※ The lamp should be installed and operated by a qualified electrician or technician in accordance with relevant local codes.
※ Do not use sharp tools near or on the surface of the lamp.
※ Unpack and examine the product carefully. Report any damage and save all packing materials if any portion of the product was damaged during transportation.
