Emergency Light Ceiling Mounted
Product Introduction
Emergency Light Ceiling Mounted using LED technology have a rectangular main body and obvious edges, which can be embedded in installation. They use LED technology to provide permanent lighting or signals.
It use high-brightness LED wick, strong light transmission. The fully enclosed lamp body has super waterproof effect. Normal use outdoors in rainy days will not delay. Intelligent control circuit, stable and reliable work.
Long-term emergency, emergency response time is 30-180 minutes.
Product Features
Emergency Light Ceiling Mounted stands by remote control. In this one, it is condensed to the essence, showing an impressive visual performance, giving new meaning to the word "plane". An inconspicuous angular aluminum housing frame, like a photo frame, only has a slightly thick display panel, which integrates patented technology. Powerful LED technology produces 98% uniform light with minimal energy consumption; this in turn guarantees a long service life and extremely low maintenance costs.
 |
 |
| Key Features |
Multiple functions |
| Construction Features |
| High Lumen transmission Cover White paint finish Easy wiring with terminal box |
| Application |
Bedroom lighting, Balcony lighting, Corridor lighting, hotel lighting etc. |
| Technical Features |
| Input Voltage: AC90-277V 50/60Hz Operation Voltage: DC36-42V Total harmonic distortion: THD<15% Power Factor: PF>0.95 Color Index: Ra>80 Lumen maintenance @6000h:>80% Switching cycle before failure: 50,000 IP Rating: IP20 Life Span: 30,000 hours Warranty: 3 years Operation Temperature: -15°C~+50°C Storage Temperature: -25°C~+55°C |
 |
|

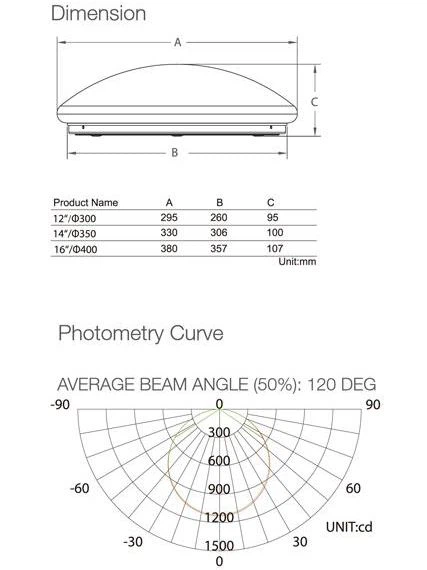

Datasheet Item Symbol 300/15W 350/18W 400/22W Product Code / CLM30K-15F5 CLM35K-18F5 CLM40K-22F5 Rated Power W 15 18 22 LED Typ/ Qty SMD2835 84 108 132 Total Circuit Power W 15+2 18+2 22+2 Luminous Flux LM typ.1500 typ.1800 typ.2200 Lumen Efficacy LM/W typ.100 typ.100 typ.100 Color temperature CCT (K) WW.3000K NW.4000K PW:5000K CW:6000K Color Index Ra Ra>80 Beam Angle Degree 120 AC Input Voltage V AC100-240V 1 50~60Hz Power Factor PF PF>0.95 Cover Material / 100% PMMA IP Rating IP IP20 EM Consumption W 1.5W Emergency Time Hours 3 hours EM Luminous Flux LM 10% of standard Lumen Life Span Hours 30,000 hrs Warranty Years 3 years Operation Temperature ℃ -15℃-+50℃ Storage Temperature ℃ -25℃-+55℃ |
 |
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
Hot Tags: emergency light ceiling mounted, China, manufacturers, suppliers, factory, customized, price, newest, made in China
