DALL and 1-10V Dimming LED Tri-proof Light 1200mm
B Version Tri-proof light Standard:100LM/W Premium:125LM/W Deluxe:140LM/W
|
 |
| Product Features |
· Single or Double wiring · IP 65 /IK10 Approval · Multiple Link with double wiring · Patent aluminum case as the heatsink · 5 years warranty |
| Option |
· Wiring: Single or Double · CRI : Ra>80 or Ra>90 · Function : ON-OFF / 1-10V dimming · Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W |
| Application |
· Replacement for fluorescent NCF · Warehouses, Factories, Car parks, Sports facilities · Sports facilities, Outdoor & Indoor Locations · etc |
|
 | |||||||
Tri-proof : 60cm&120cm | |||||||
Item | Symbol | L=60cm/2ft | L=120cm/4ft | ||||
Standard | Premium | Deluxe | Standard | Premium | Deluxe | ||
Rated Power | W | 22W | 40W / 60W | ||||
LED Type/Qty | SMD2835 | 143pcs | 234pcs | ||||
Lumen Efficacy | LM/W | typ.100 | typ.125 | typ.140 | typ.100 | typ.125 | typ.140 |
Luminous Flux | LM | typ.2200 | typ.2750 | typ.3050 | typ.4000/6000 | typ.5000/7500 | typ.5600/8400 |
LED Current | mA | Constant 50mA | |||||
Color Index | CRI(Ra) | Ra>80, R9>0 | |||||
Color Temperature | TC(k) | Tri-color : 3000/5000k Mixed : 4000k | |||||
Beam Angle | Degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming | |||||
Power Factor | PF | PF>0.95 | |||||
Input Voltage | V | AC200-240V / 50HZ | |||||
Housing Material | / | Alumium +PC | |||||
Starting Time | S | <0.55 | |||||
Protection Class | IP | IP65/IK10 | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||
Tri-proof : 150cm&240cm | |||||||
Item | Symbol | L=150cm/5ft | L=240cm / 8ft | ||||
Standard | Premium | Deluxe | Standard | Premium | Deluxe | ||
Rated Power | W | 60W | 100W | ||||
LED Type/Qty | SMD2835 | 325pcs | 520pcs | ||||
Lumen Efficacy | LM/W | typ.100 | typ.125 | typ.140 | typ.100 | typ.125 | typ.140 |
Luminous Flux | LM | typ.6000 | typ.7500 | typ.8400 | typ.10000 | typ.12500 | typ.14000 |
LED Current | mA | Constant 50mA | |||||
Color Index | CRI(Ra) | Ra>80, R9>0 | |||||
Color Temperature | TC(k) | Tri-color : 3000/5000k Mixed : 4000k | |||||
Beam Angle | Degree | 120 degree | |||||
Dimming Function | / | ON-OFF/ 1-10V dimming | |||||
Power Factor | PF | PF>0.95 | |||||
Input Voltage | V | AC200-240V / 50HZ | |||||
Housing Material | / | Alumium +PC | |||||
Starting Time | S | <0.55 | |||||
Protection Class | IP | IP65/IK10 | |||||
Lifespan | h | 50,000 hours | |||||
Guarantee | / | 5 years | |||||

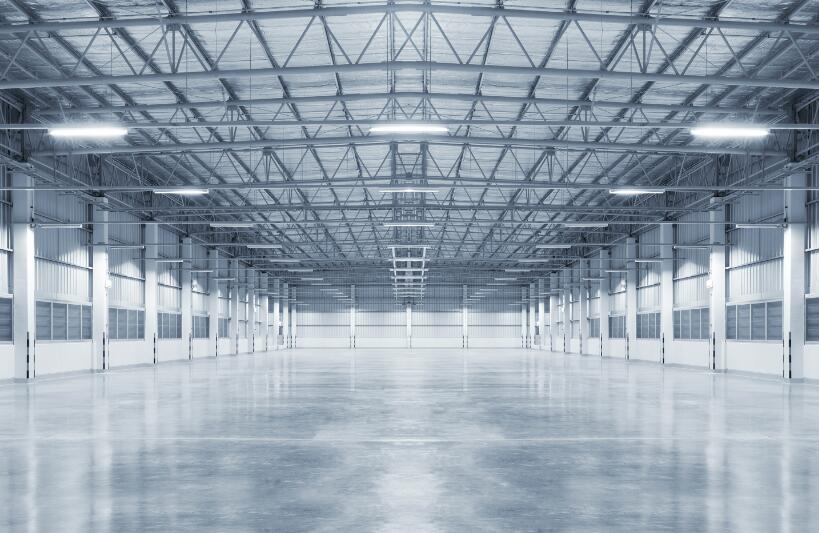

B version led tri-proof light Application: Replacement for fluorescent CNF, warehouses, factories, Car parks, sports facilites, outdoor & indoor locations
|
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
Toppo Lighting company limited is one of the professional manufacturer which specialize in developing, producing and selling for Led Lighting. As a worldwide LED manufacturer, We have various series of LED lighting which include: LED Panel Light, LED linear light ,LED tri-proof light , LED batten light ,Led trunk linear ,LED Tube Light, LED Down Light, LED Ceiling Light, LED troffer , etc.

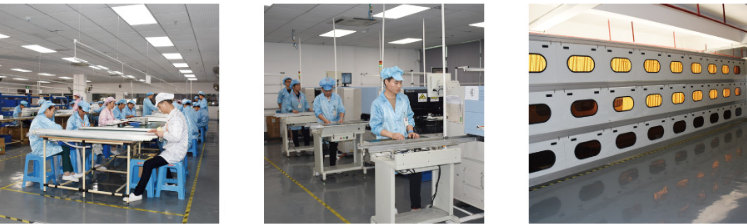

In order to achieve the high quality and capacities, we use the Auto-SMT and Auto production assembly line to meet high quality requirement. By these advance applications. Our monthly production capacity increased, LED panel exceed 60,000 pcs, LED Linear and batten exceed 80,00pcs. The other products exceed 30,000-50,000 pcs for each series.
We always insist our value system “ Morality as the basic , Quality as the life ,Customer as the centre , Innovation as the source , Rseult as the guide ” to make the growing of our team. “Our service your choice ” as the maketing concept to make the best led lighting to emblaze your happy modern life.
Hot Tags: dall and 1-10v dimming LED tri-proof light 1200mm, China, manufacturers, suppliers, factory, customized, price, newest, made in China
You Might Also Like
30W LED Track Panel Shopping Track Light Europe Tracks
LED Slim Batten 120 LM/W 1-10V Dimming on/ofF GS App...
Commercial Lighting LED G13 T8 Tube 1200mm 20w

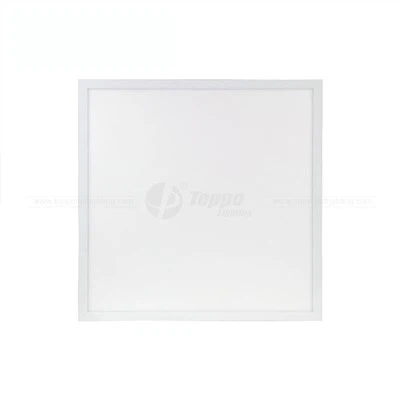

3600-3900lm 120-130lm/w with 234 LEDs LED 62x62cm Pa...
