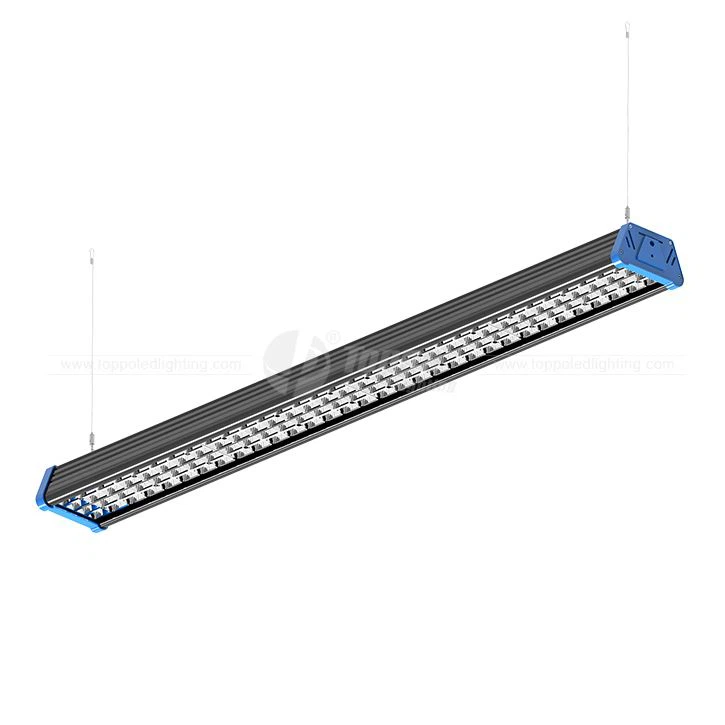

DALI Control Asymmetric Honeycomb T-line Linear Highbay Light
 |
| Product Features |
> Highly energy efficient - up to 160 lm/w > Advanced cooling-fin structure for excellent heat dissipation > Superior honeycomb-reflector-optic for low glare applications > IP65 and IK10 for all industrial areas of application > Driver and housing separated by spacers > Newest generation of SMD2835 1W LED chips > Double-rail mounting solution for driver and other components > D-Mark tested for the use in paper production, wood processing etc. > No UV or IR and completely mercury free > L80/B10 @ 50.000h > 5 years warranty |
| Options |
> Drivers: Meanwell, Sosen, Shanpin > Beam angle: 60°x110° or 90°x110° > Controls and Dimming ·Zigbee wireless control ·1-10V Dimming ·Motion sensor ·Emergency ·DALI control ·Daylight sensor > Lumen efficiency: 140Lm/w or 160Lm/w > Installation: Suspended OR Surface mounted |
| Application |
> Factories and warehouses > High rooms and halls > Exhibition- & showrooms |
Dimension
|
Beam Angle |
|
| Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
Deluxe: 160LM/W
| Order Code | Product Name | Length | Rated Power | Lumen Output | Lumen Efficiency | Color Index | Beam Angle | AC Input | Power Factor | Flicker Free |
HB02-1ADN1- TSN5M-001 | Deluxe 60CM/100W Asymmetric Honeycomb T-Line Linear High Bay | 60CM | 100W | 16000LM | 160LM/W | Ra>80 | 60°x110° 90°x110° | AC 100-277V | >0.95 | Y |
HB03-1CDN1- TSN5M-001 | Deluxe 90CM/120W Asymmetric Honeycomb T-Line Linear High Bay | 90CM | 120W | 19200LM | 160LM/W | Ra>80 | 60°x110° 90°x110° | AC 100-277V | >0.95 | Y |
HB03-1BDN1- TSN5M-001 | Deluxe 90CM/150W Asymmetric Honeycomb T-Line Linear High Bay | 90CM | 150W | 24000LM | 160LM/W | Ra>80 | 60°x110° 90°x110° | AC 100-277V | >0.95 | Y |
HB04-2ADN1- TSN5M-001 | Deluxe 120CM/200W Asymmetric Honeycomb T-Line Linear High Bay | 120CM | 200W | 32000LM | 160LM/W | Ra>80 | 60°x110° 90°x110° | AC 100-277V | >0.95 | Y |
