125 LM/W Kingston UGR led batten lights
Products Description

Kingston LED batten lightings offer a true one-stop solution for commercial and office lighting projects, focusing on high reliability, high flexibility, and superior luminous efficacy. The LED batten lighting utilizes upper and lower aluminum housings as its main heat sinks, ensuring excellent heat dissipation and providing a long-term warranty.
Kingston batten light fittings use Brightview's PET diffusers as the anti-glare material, resulting in more uniform light distribution and a UGR of < 19, meeting the comfort requirements of office, educational, and commercial spaces. Not only do batten lights led guarantee a UGR of < 19, but they also ensure the beam angle of this series of batten LED lights, maintaining consistent light color even after long-term use.

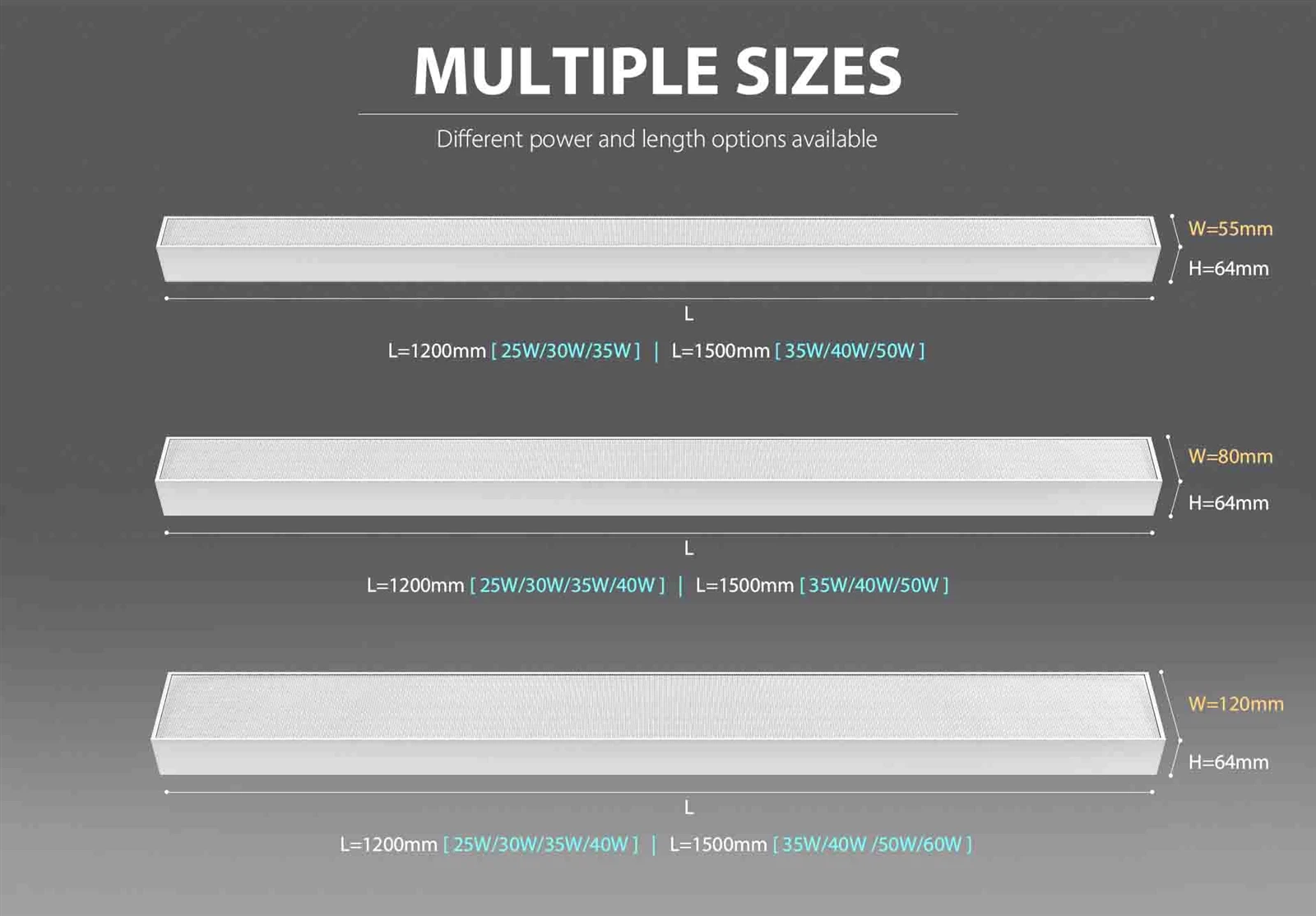

Multiple widths of led batten strip lights are available: 55mm / 80mm / 120mm. This adapts to different light through and space design needs, increases the freedom of lighting solution design, and reduces the risk of mismatch.
Kingston LED light batten offers lower-cost, higher-efficiency, and more reliable lighting solutions for commercial lighting projects through superior heat dissipation, professional optics, flexible configuration, and multiple specifications.

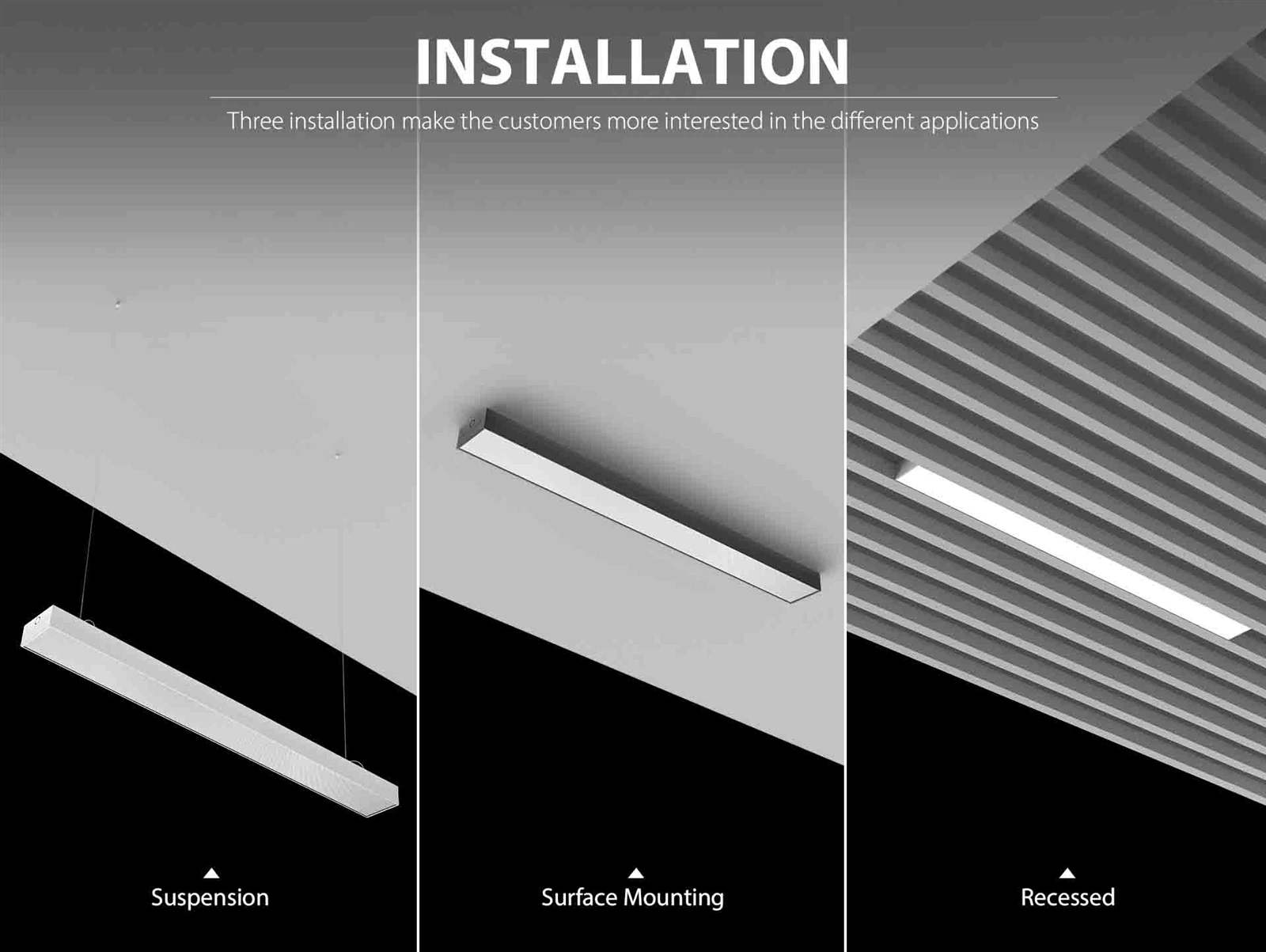

Kingston batten light fitting support surface mounting, ceiling mounting, and recessed mounting, bringing the following core values to lighting solutions:
- Adaptability to More Lighting Scenarios: Whether it's a new project or a renovation, regardless of building height or design style, a suitable installation method can be found.
- Increased Design Freedom: Designers can flexibly choose according to space requirements, enhancing the competitiveness of lighting solutions.
- Reduced Construction Risks: Multiple installation methods can handle on-site uncertainties and reduce rework.
- Simplified Supply Chain: A single LED strip can meet different installation needs, reducing customer inventory pressure.
Parameter table
|
Order Code |
Width |
Rated Power |
Lumen |
SDCM/Ra |
Product Dimension |
GW/CTN |
QTY/CTN |
|
BT100-02W-DT1-20F01 |
55mm |
10/20W |
typ.1300/2600 |
<3/ Ra80/90 |
L600xW55xH64 |
6.0kg |
8pcs |
|
BT100-04W-DT1-40F01 |
55mm |
20/40W |
typ.2600/5200 |
<3/ Ra80/90 |
L1200xW55xH64 |
11.5kg |
8pcs |
|
BT100-05W-DT1-50F01 |
55mm |
30/50W |
typ.3900/6500 |
<3/ Ra80/90 |
L1500xW55xH64 |
14.5kg |
8pcs |
|
BT100-06W-DT1-60F01 |
55mm |
30/60W |
typ.3900/7800 |
<3/ Ra80/90 |
L1800xW55xH64 |
17kg |
8pcs |
|
BT110-02W-DT1-20F01 |
80mm |
10/20W |
typ.1300/2600 |
<3/ Ra80/90 |
L600xW80xH64 |
7.0kg |
6pcs |
|
BT110-04W-DT1-40F01 |
80mm |
20/40W |
typ.2600/5200 |
<3/ Ra80/90 |
L1200xW80xH64 |
12.0kg |
6pcs |
|
BT110-05W-DT1-50F01 |
80mm |
30/50W |
typ.3900/6500 |
<3/ Ra80/90 |
L1500xW80xH64 |
14.0kg |
6pcs |
|
BT110-06W-DT1-60F01 |
80mm |
30/60W |
typ.3900/7800 |
<3/ Ra80/90 |
L1800xW80xH64 |
18.0kg |
6pcs |
|
BT120-02W-DT1-20F01 |
120mm |
10/20W |
typ.1300/2600 |
<3/ Ra80/90 |
L600xW120xH64 |
7.0kg |
4pcs |
|
BT120-04W-DT1-40F01 |
120mm |
20/40W |
typ.2600/5200 |
<3/ Ra80/90 |
L1200xW120xH64 |
10.5kg |
4pcs |
|
BT120-05W-DT1-50F01 |
120mm |
30/50W |
typ.3900/6500 |
<3/ Ra80/90 |
L1500xW120xH64 |
13.0kg |
4pcs |
|
BT120-06W-DT1-60F01 |
120mm |
30/60W |
typ.3900/7800 |
<3/ Ra80/90 |
L1800xW120xH64 |
15.5kg |
4pcs |

Kingston batten led lights Application scenarios
From home renovations to large commercial complexes, from sophisticated laboratories to spacious underground parking garages, Kingston batten lighting can perfectly meet the needs of any place requiring linear lighting.
