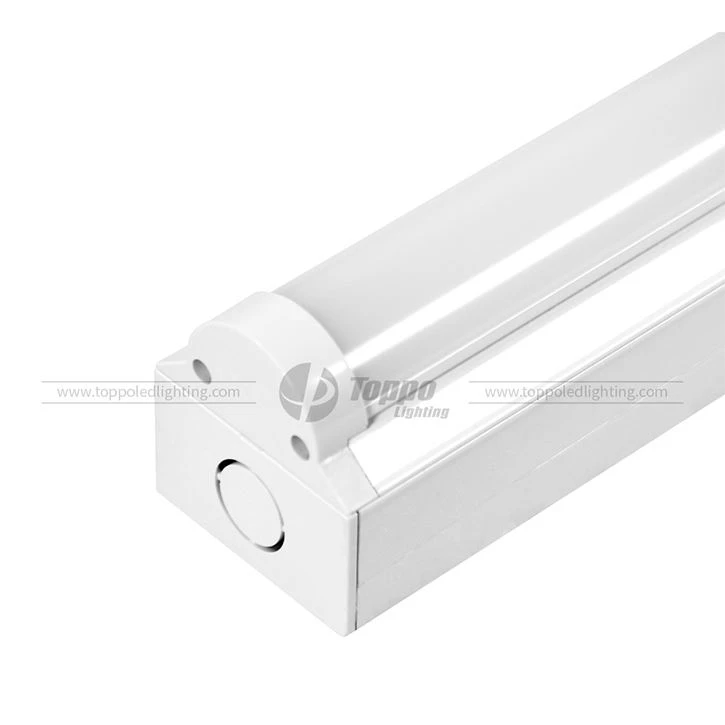

120lm/w 1-10V Dimming PIR Sensor or Standard on/off LED Slim Batten

120lm/w 1-10V Dimming PIR Sensor or Standard on/off LED Slim Batten

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg
120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg
Key Features
Slim aluminum case thinner than normal batten
The popping clip make the top head out for installation
Higher Lumen output than the fluorescent batten
Infinite connection
Construction Features
Smart popping clip for installation
Similar normal fluorescent batten with higher Lumen
Easy installation on top head cover
Application
Replace fluorescent batten
Industrial Lighting: Factory, Warehouse, etc
Commercial Lighting: Office, Supermarket, etc.
Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc

120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg

120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg

120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg


120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg

120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg

120lm/w 1-10V dimming PIR sensor or standard on/off led slim batten.jpg

Options

Case finish: White or silver

Lighting Cover: Clear or Frosted

Warm white: WW/3000K

Neutral white: NW/4000K

Pure white: PW/5000K

Cool white: CW/6000K


Technical Features

Input Voltage: AC90-277V 50/60Hz

Operation Voltage: DC36-42V

Total harmonic distortion: THD<10%

Power Factor: PF>0.95

Color Index: Ra>80

Lumen maintenance @6000h: >80%

Switching cycle before failure: 100,000

IP Rating: IP20

Life Span: 50,000 hours

Warranty: 5 years

Operation Temperature: -15°C~+50°C

Storage Temperature: -25°C~+55°C
