1.2m LED Chips Smd2835 Slim Batten 28w LED Batten Ip 20New T8 Tube Fitting
Main Features:
1.IP65 Waterproof/dust free/explosion proof/IK08
2.LED driver on tray for easy replacement
3.Multiple Link with double wiring
4.High technology SMD2835 as light source
5.5 years warranty
Send Inquiry
1.2m Led Chips Smd2835 Slim Batten 28w led batten ip 20New T8 Tube Fitting

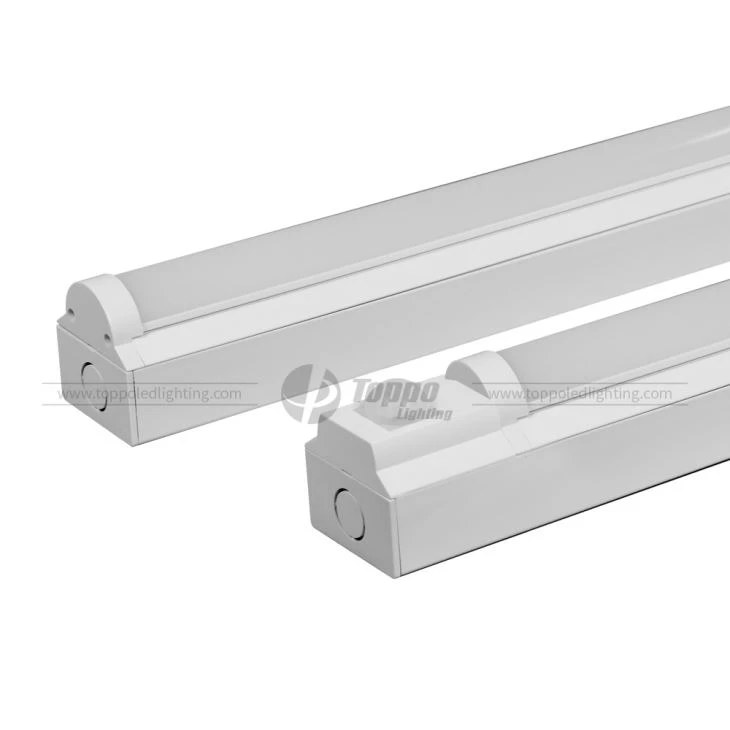

Product Photos

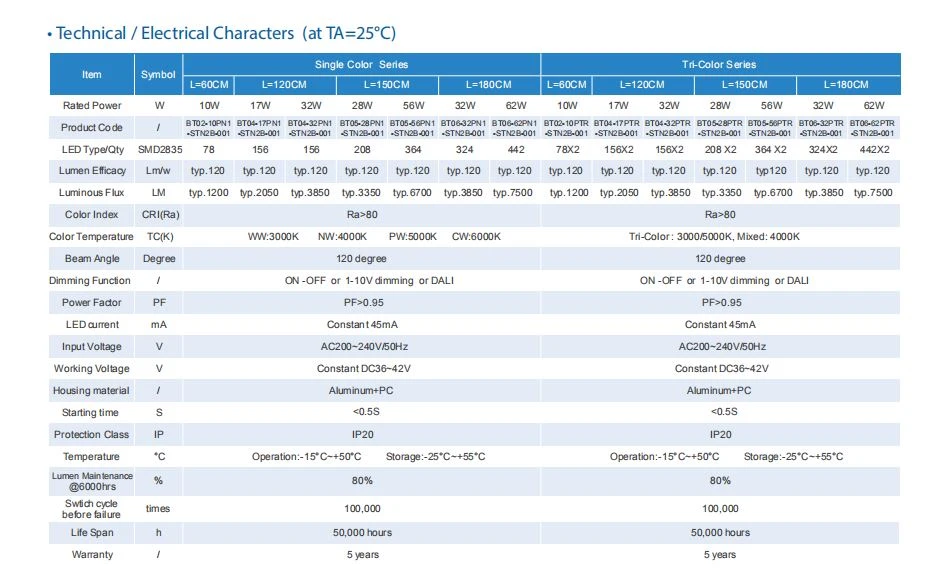

| Technical/Electrical Characters(at TA=25℃） | |||||||||||
| Item | Symbol | Standard:100LM/W | Standard:125LM/W | ||||||||
| Rated Power | W | L=60CM 2ft | L=120CM 4ft | L=150CM 5ft | L=60CM 2ft | L=120CM 4ft | L=150CM 5ft | ||||
| 20W | 35W | 40W | 55W | 75W | 20W | 35W | 40W | 55W | 75W | ||
| Product Code | / | TR02-20SN1-AFN1B-001 | TR04-35SN1-AFN1B-001 | TR05-40SN1-AFN1B-001 | TR05-55SN1-AFN1B-001 | TR05-75SN1-AFN1B-001 | TR02-20PN1-AFN1B-001 | TR04-35PN1-AFN1B-001 | TR05-40PN1-AFN1B-001 | TR05-55PN1-AFN1B-001 | TR05-75PN1-AFN1B-001 |
| LED Type/Qty | SMD2835 | 132 | 216 | 240 | 240 | 416 | 132 | 324 | 240 | 240 | 416 |
| Lumen Efficacy | LM/W | typ.100 | typ.100 | typ.100 | typ.100 | typ.100 | typ.125 | typ.125 | typ.125 | typ.125 | typ.125 |
| Luminous Flux | LM | typ.2000 | typ.3500 | typ.4000 | typ.5500 | typ.7500 | typ.2500 | typ.4400 | typ.5000 | typ.7000 | typ.9300 |
| Color Index | CRI(Ra) | Ra>80 | |||||||||
| Beam Angle | Degree | 120 degree | |||||||||
| Color Temperature | TC(K) | WW:3000K,NW:4000K,PW:5000K,CW:6000K | |||||||||
| Dimming Function | / | ON-OFF/1-10V/dimming/Micro-Wave Sensor | |||||||||
| Housing Material | / | Full Plastic Case | |||||||||
| Power Factor | PF | PF>0.95 | |||||||||
| LED Current | MA | Constant 45mA | |||||||||
| Input Voltage | V | AC200-240V/50Hz | |||||||||
| Working Voltage | V | Constant DC36-42V | |||||||||
| Starting Time | S | <0.5S | |||||||||
| Lumen Maintenance @6000Hrs | % | 80% | |||||||||
| Switch Cycle before failure | times | 100,000 | |||||||||
| Protection Class | IP | IP65/IK08 | |||||||||
| Temperature | ℃ | Operation:-15℃+50℃ Storage:-25℃+55℃ | |||||||||
| Life Spain | h | 50,000hours | |||||||||
| Warranty | / | 5 years | |||||||||

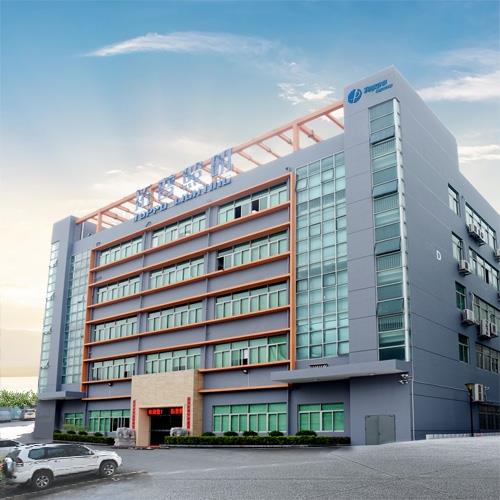

Factory Information
